NOTES:

Part #	Number on image	Usage Notes
401-000-032	14	460-000-207 - Bearing Protection Kit is also available as an option for the mowers prior to serial number 719-340-002-0172, for ease of greasing roller bearings as there was no grease nipple access holes on the roller mounts.
412-000-505	17	719-340-002-01720 onward has provisions for greasing the roller bearing through the side roller mount plate holes.
412-000-506	18	719-340-002-01720 onward has provisions for greasing the roller bearing through the side roller mount plate holes.
412-000-724	19	412-000-724 - Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3. Individual parts: 412-000-611 - Set Screw - M16 x 150 ZP 8.8 - Stealth S3 Front & Rear; 412-850-260 - Collar - Height Adjuster Current; 202-447-980 - Roll Pin - 4 x 22 SS.

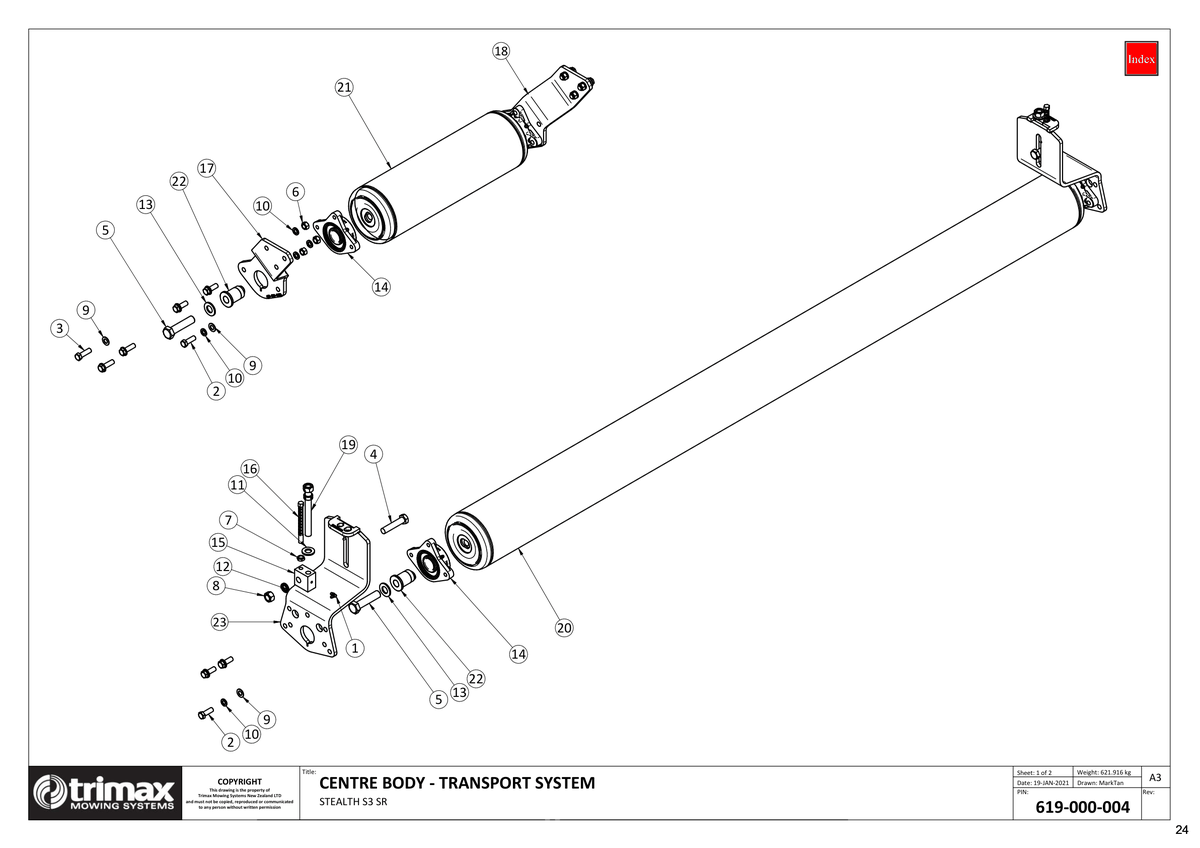

758 - Stealth S3 SR 340 - Centre Body Transport System

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
2	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
3	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
4	Bolt - Hex Head - M16 x 75 - Trimax Specification 301-216-753 More Info >	A$5.76
5	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	A$20.21
6	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
7	Nut - Half 307-212-023 More Info >	A$1.16
8	Nut - Plain 307-216-013 More Info >	A$0.97
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
10	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
11	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
12	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	A$8.03
13	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
14	Roller Bearing Assembly - TriBolt - Trimax Specification i See notes section for usage notes on this part 401-000-032 More Info >	A$105.00
15	Height Adjuster Block 412-000-255 More Info >	A$63.35
16	Height Indicator - Metric 412-000-256 More Info >	A$33.33
17	Antiscalp Roller Mount LH Centre Front - ST3 SR i See notes section for usage notes on this part 412-000-505 More Info >	A$310.52
18	Antiscalp Roller Mount RH Centre Front - ST3 SR i See notes section for usage notes on this part 412-000-506 More Info >	A$310.52
19	Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3 i See notes section for usage notes on this part 412-000-724 More Info >	A$76.49
20	Roller Weldment - LocTek Centre Body Rear 414-000-072 More Info >	A$900.00
21	Roller Weldment - Rear Wing 414-000-075 More Info >	A$450.00
22	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	A$50.00
23	Roller Mount - Centre Body - Rear 414-000-080 More Info >	A$284.96
