NOTES:

Part #	Number on image	Usage Notes
412-000-499	22	Use part number 412-000-544 for Side Channel Weldment - LocTek - ST3 SR RH Galvanised.
412-000-724	23	412-000-724 - Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3. Individual parts: 412-000-611 - Set Screw - M16 x 150 ZP 8.8 - Stealth S3 Front & Rear; 412-850-260 - Collar - Height Adjuster Current; 202-447-980 - Roll Pin - 4 x 22 SS.
412-000-725	24	412-000-725 - Height Adj. Screw Assy - Wing Outer w Collar/Pin 180mm ST3. Individual parts: 412-000-609 - Set Screw - M16 x 180 ZP 8.8 - Stealth S3 Wings; 412-850-260 - Collar - Height Adjuster Current; 202-447-980 - Roll Pin - 4 x 22 SS.

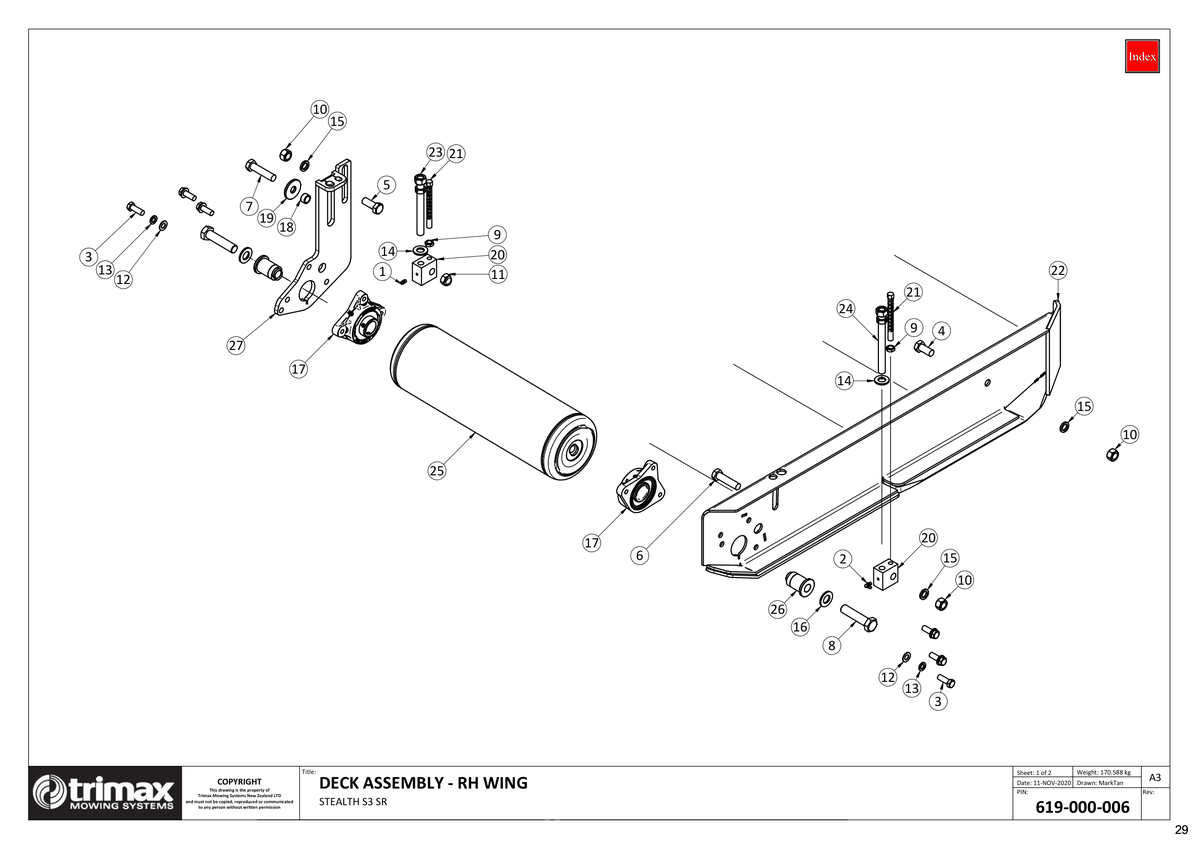

758 - Stealth S3 SR 340 - RH Wing Transport System

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-600 More Info >	A$3.78
2	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
3	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
4	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	A$3.22
5	Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403 More Info >	A$1.83
6	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	A$7.08
7	Bolt - Hex Head - M16 x 70 - Trimax Specification 301-216-703 More Info >	A$4.25
8	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	A$20.21
9	Nut - Half 307-212-023 More Info >	A$1.16
10	Nut - Plain 307-216-013 More Info >	A$0.97
11	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
12	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
13	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
14	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
15	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	A$8.03
16	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
17	Roller Bearing Assembly - TriBolt - Trimax Specification 401-000-032 More Info >	A$105.00
18	Spacer Tube 402-000-091 More Info >	A$9.23
19	Heavy Washer 402-840-560 More Info >	A$27.39
20	Height Adjuster Block 412-000-255 More Info >	A$63.35
21	Height Indicator - Metric 412-000-256 More Info >	A$33.33
22	Side Channel Weldment - LocTek - ST3 SR RH i See notes section for usage notes on this part 412-000-499 More Info >	A$680.38
23	Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3 i See notes section for usage notes on this part 412-000-724 More Info >	A$76.49
24	Height Adj. Screw Assy - Wing Outer w Collar/Pin i See notes section for usage notes on this part 412-000-725 More Info >	A$94.66
25	Roller Weldment - Rear Wing 414-000-075 More Info >	A$450.00
26	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	A$50.00
27	Roller Mount - Inner Wing RH 414-000-079 More Info >	A$233.47
