NOTES:

Part #	Number on image	Usage Notes
417-001-155	19	Transport Lock Arm Spares Kit for Stealth S3 also available: 417-001-155 (AUS), Lock Arm Kit 460-000-208 and Lock Arm 417-001-419 (Global), Lock Arm Kit 460-000-231.
417-001-366	21	New brackets/actuator used on these mower serial numbers onwards, Painted 719-340-002-0241/Galv 719-340-012-0025.

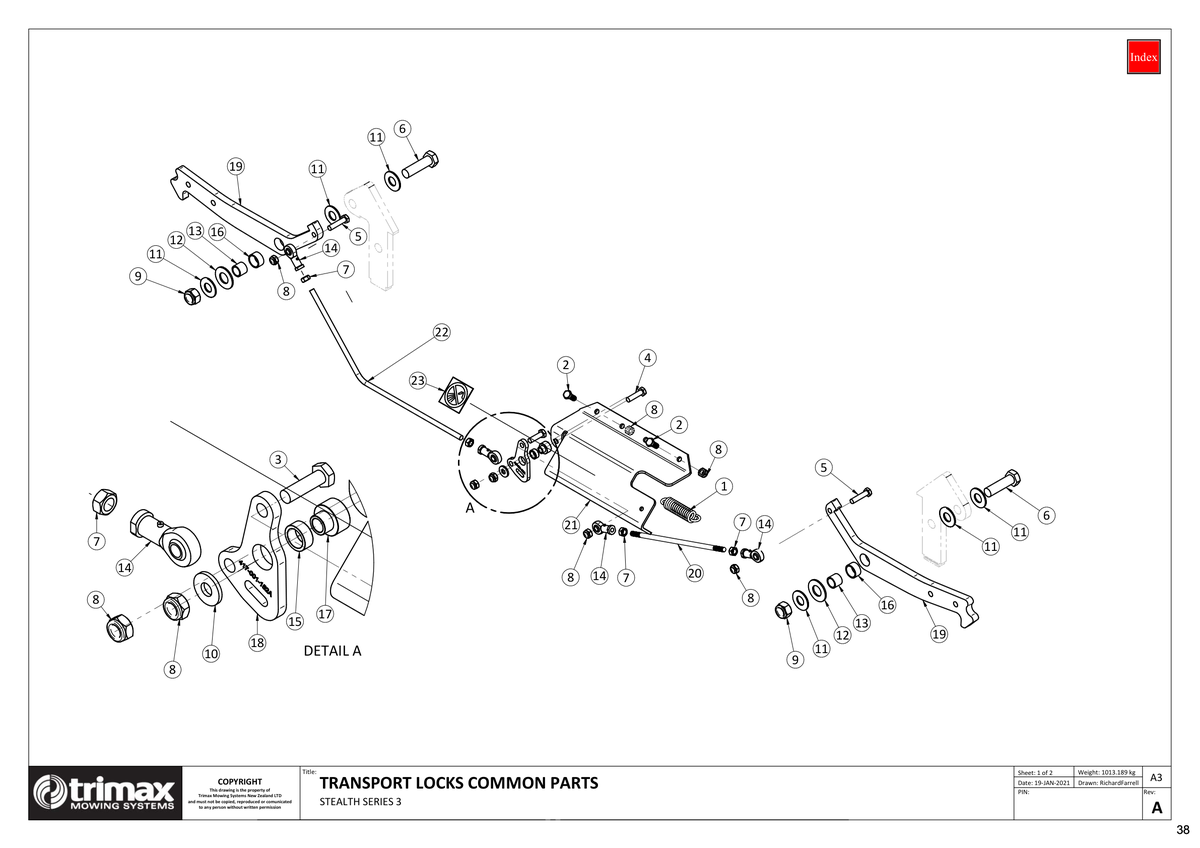

758 - Stealth S3 SR 340 - Transport Locks - Common Parts

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Spring - Tension 207-000-008 More Info >	A$94.31
2	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	A$0.80
3	Bolt - Hex Head - M10 x 35 - Trimax Specification 301-210-353 More Info >	A$0.97
4	Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403 More Info >	A$1.18
6	Bolt - Hex Head - M20 x 70 - Trimax Specification 301-220-703 More Info >	A$10.24
7	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	A$0.54
8	Nut - Nyloc 307-210-053 More Info >	A$0.89
9	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	A$2.25
10	Washer - Heavy Flat 308-100-063 More Info >	A$0.24
11	Washer - Fender 308-200-073 More Info >	A$0.05
12	Washer - Heavy Flat 308-270-063 More Info >	A$2.72
13	Inner Ring 401-000-013 More Info >	A$12.84
14	Bearing 401-840-800 More Info >	A$21.91
15	Bush 402-000-092 More Info >	A$22.00
16	Bush - Composite Pivot Bush 402-000-093 More Info >	A$37.04
17	Bush 402-000-097 More Info >	A$40.66
18	Pivot Plate 417-001-152 More Info >	A$15.44
19	Plate - Transport Lock Arm (AUS) - Stealth S3 i See notes section for usage notes on this part 417-001-155 More Info >	A$186.02
20	Tie Rod 417-001-179 More Info >	A$11.22
21	Folding i See notes section for usage notes on this part 417-001-366 More Info >	A$78.26
