NOTES:

Part #	Number on image	Usage Notes
410-000-507	28	For PVK - LH & RH Rear Castor Flap - 200, Use P/N: 410-000-545

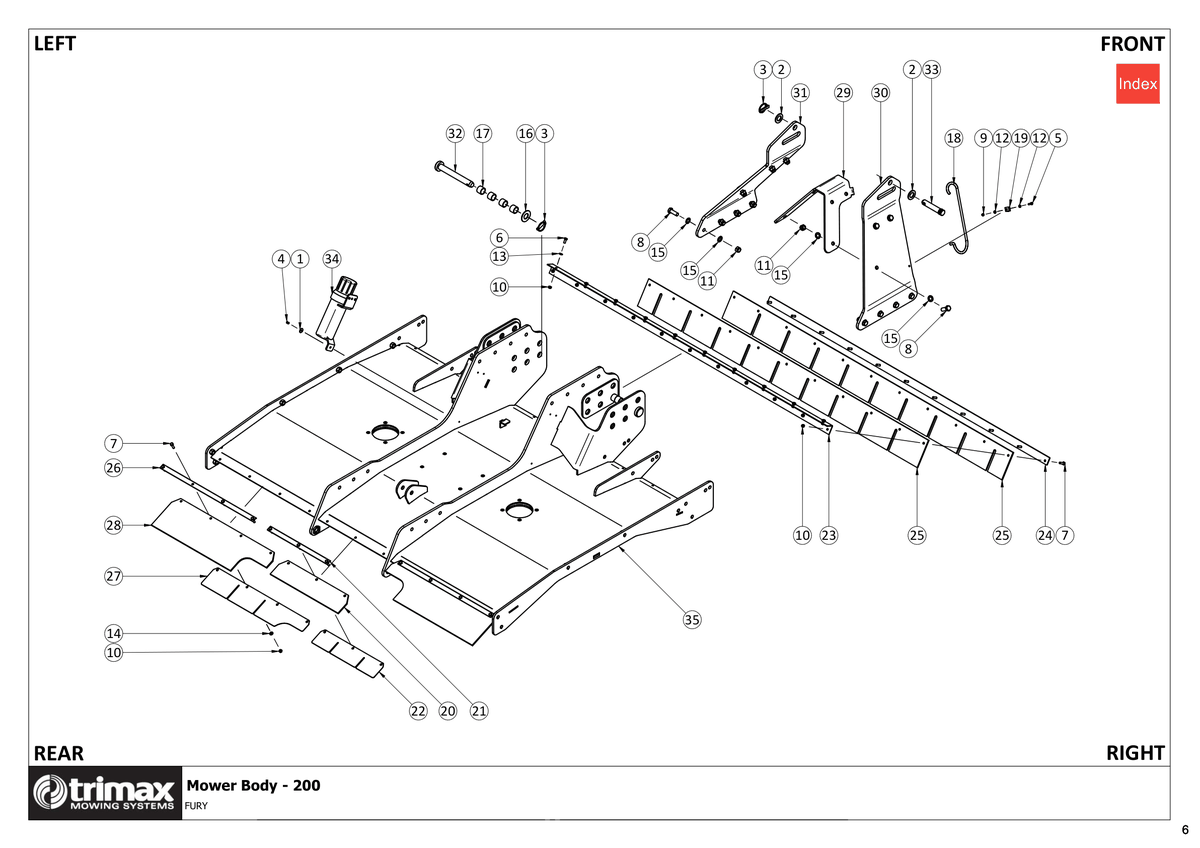

759 - Fury S1 200 - Mower Body

Fury S1 200

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	A$0.29
2	Washer Flat - 1" x 1-15/16" - Hardened - Trimax Specification 108-163-113 More Info >	A$5.51
3	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	A$3.05
4	Blind Rivet 213-000-004 More Info >	A$1.12
5	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	A$0.29
6	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	A$0.60
8	Bolt - Hex Head - M16 x 45 - Trimax Specification 301-216-453 More Info >	A$7.84
9	Nut - Nyloc 307-206-053 More Info >	A$0.89
10	Nut - Nyloc 307-208-056 More Info >	A$1.18
11	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
12	Washer - Flat 308-060-013 More Info >	A$0.04
13	Washer - Flat 308-080-013 More Info >	A$0.06
14	Washer - Flat 308-080-016 More Info >	A$0.36
15	Washer - Flat 308-160-013 More Info >	A$0.83
16	Washer - Heavy Flat 308-270-063 More Info >	A$2.72
17	Link Pin 402-000-162 More Info >	A$11.33
18	PTO Hanger 406-000-059 More Info >	A$116.05
19	Retainer Clip - PTO Hanger 406-000-060 More Info >	A$7.44
20	Rear Roller Center Flap - PVK - Fury 410-000-494 More Info >	Price on Request
22	Rear Roller Center Flap - PVK Support - Fury 410-000-496 More Info >	Price on Request
28	PVK - LH And RH Rear Roller Flap - 200 - Fury i See notes section for usage notes on this part 410-000-507 More Info >	Price on Request
32	Lower Link Pin - Ø28.5x205mm - 12mm Hole 419-000-071 More Info >	A$47.65
34	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	A$47.49
