NOTES:

Part #	Number on image	Usage Notes
404-000-142	18	Option

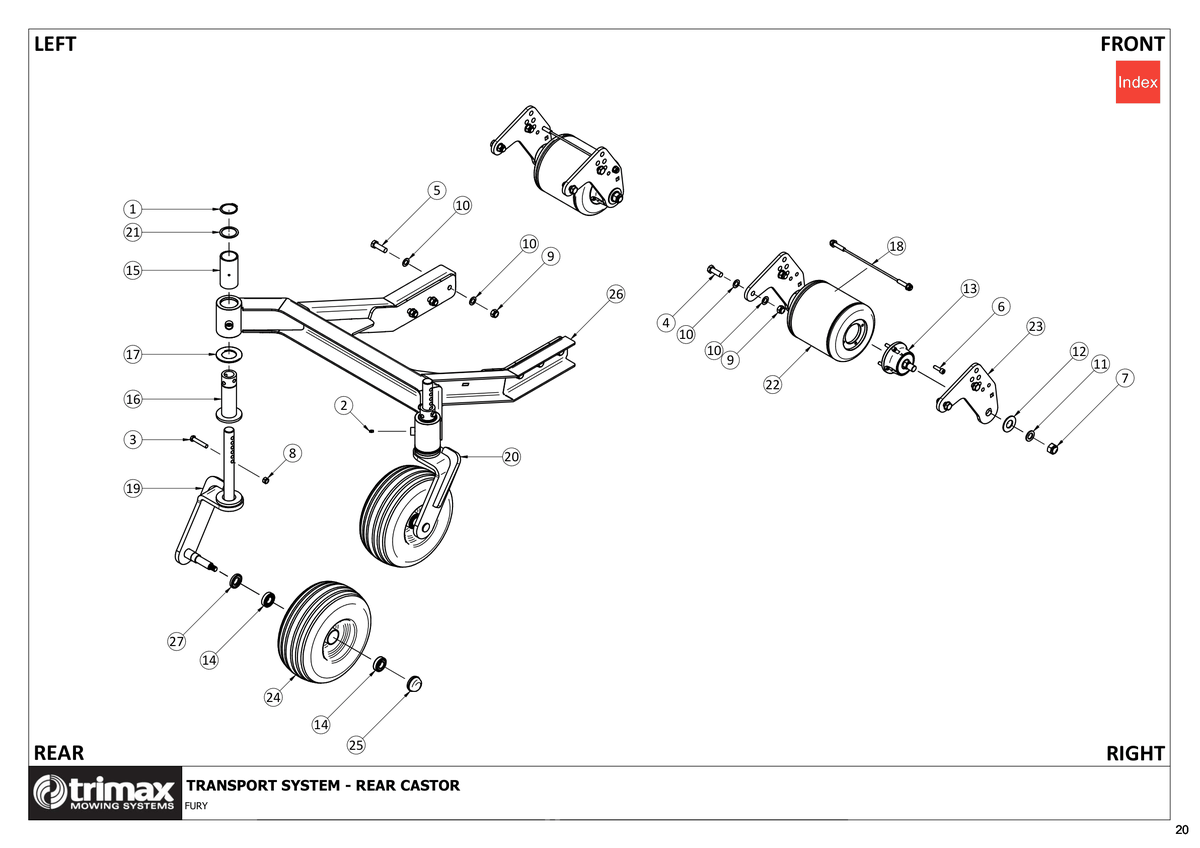

759 - Fury S1 200 - Transport System - Rear Castor

Fury S1 200

Grouped product items
No.	Product Name	Price
1	Circlip/Snap Ring - External 204-820-522 More Info >	A$4.04
2	Grease Nipple - Trimax Specification 208-442-600 More Info >	A$3.78
3	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	A$1.86
4	Bolt - Hex Head - M16 x 45 - Trimax Specification 301-216-453 More Info >	A$7.84
5	Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503 More Info >	A$8.03
6	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	A$5.52
7	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	A$19.55
8	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
9	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
10	Washer - Flat 308-160-013 More Info >	A$0.83
11	Washer 308-220-013 More Info >	Price on Request
12	Washer - Heavy Flat 308-270-063 More Info >	A$2.72
13	Roller Bearing Assembly - Titan 401-000-035 More Info >	A$267.00
14	Bearing - Tapered Roller 401-021-870 More Info >	A$26.75
15	Bush - Pivot 402-320-060 More Info >	A$168.46
16	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	A$467.37
17	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	A$40.47
18	Roller Scraper i See notes section for usage notes on this part 404-000-142 More Info >	A$69.66
19	Front Castor Weldment - LH 412-320-051 More Info >	Price on Request
20	Front Castor Weldment - RH 412-320-052 More Info >	A$717.50
21	Washer - Retaining Ø65xØ52.2x2 412-320-090 More Info >	Price on Request
23	Roller Mount - Bubble Roller - Fury - Zinc Plated 414-000-179 More Info >	Price on Request
24	Wheel Assembly 416-449-010 More Info >	A$280.77
25	Grease Cap - Wheel 416-449-015 More Info >	A$10.21
26	Castor Mount Weldment - Fury - Front Mount Kit 417-001-843	Price on Request
27	Oil Seal 40x90x7 422-380-110 More Info >	A$34.91
