NOTES:

Part #	Number on image	Usage Notes
410-000-363	36	For Clutch Cover with Brushes included, use P/N: 410-000-371

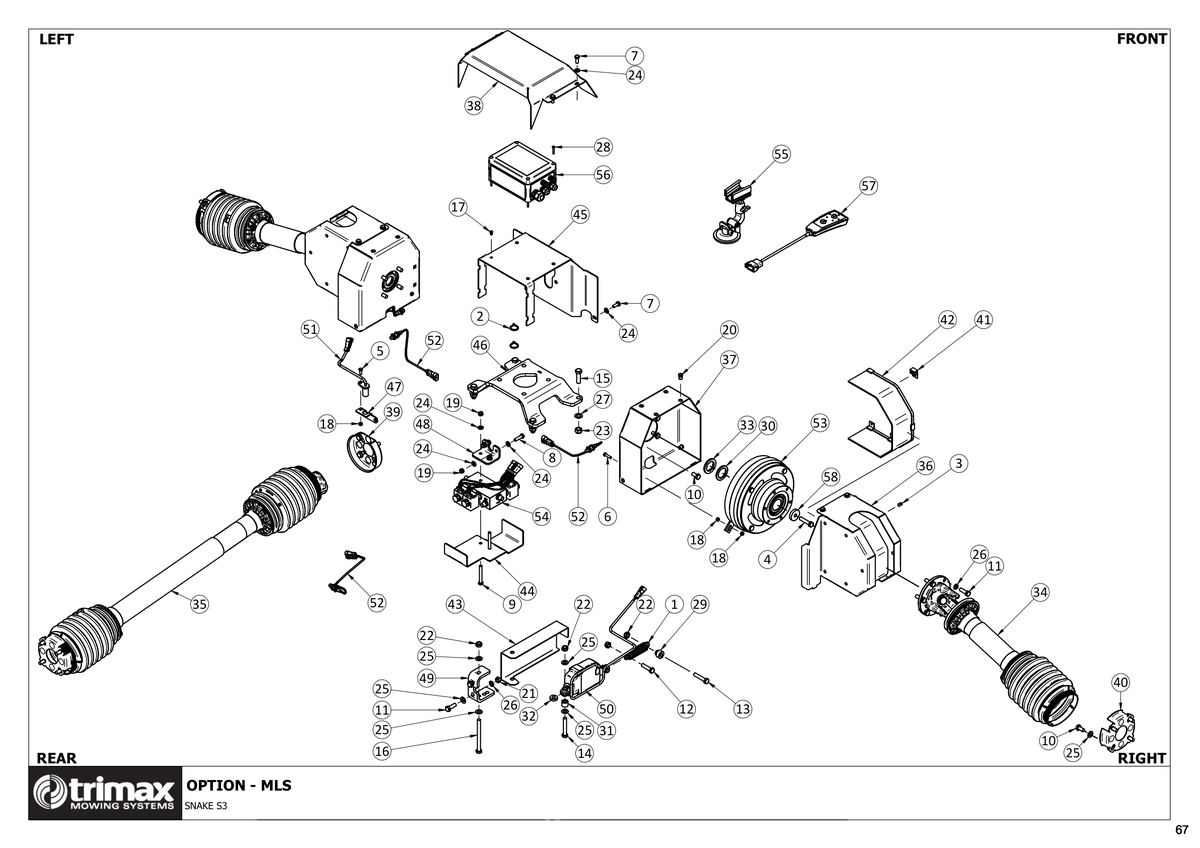

780 - Snake S3 320 - MLS

Snake S3 320

Grouped product items
No.	Product Name	Price
1	Spring - Tension 207-000-008 More Info >	A$94.31
2	Cable tie 210-900-014 More Info >	A$0.29
3	Blind Rivet 213-443-250 More Info >	A$0.80
5	Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163 More Info >	Price on Request
6	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	A$0.29
7	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	A$1.31
8	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	A$0.60
9	Bolt - Hex Head - M8 x 65 - Trimax Specification 301-208-653 More Info >	Price on Request
10	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	A$0.80
11	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	A$0.80
12	Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403 More Info >	A$1.18
13	Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503 More Info >	A$0.74
15	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
16	Bolt - Hex Head - M10 x 120 - Trimax Specification 301-610-123 More Info >	A$1.56
18	Nut - Nyloc 307-206-053 More Info >	A$0.89
19	Nut - Nyloc 307-208-056 More Info >	A$1.18
20	Nut - Rivnut M8 ZP 307-208-413 More Info >	Price on Request
21	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	A$0.54
22	Nut - Nyloc 307-210-053 More Info >	A$0.89
23	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
24	Washer - Flat 308-080-013 More Info >	A$0.06
25	Washer - Flat 308-100-013 More Info >	A$0.24
26	Washer - Spring 308-100-043 More Info >	A$0.65
27	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
28	Pan Head Machine Screw - Philips M4 x 25 SS 304 315-204-256 More Info >	Price on Request
29	Bush 402-000-097 More Info >	A$40.66
31	Bush - Lock Actuator 402-000-106 More Info >	A$34.63
34	PTO Shaft Assembly - Splined 400mm 6 Bolt Flange 406-000-038 More Info >	A$1,326.00
35	PTO Shaft Assembly - Splined 406-000-054 More Info >	A$1,245.36
36	Weldment - Clutch Cover - Snake MLS i See notes section for usage notes on this part 410-000-363 More Info >	Price on Request
43	Cover - Unlock Actuator - Snake S3 - Powder Coated 410-000-569	Price on Request
44	Mount Bracket Folding 418-000-398 More Info >	A$59.29
49	Mount Bracket - Unlock Actuator - Snake S3 - Powder Coated 418-001-089	Price on Request
50	Actuator Assembly 421-000-093 More Info >	A$1,137.00
51	Sensor & Cable Assembly - PTO Sensor - MLS 421-000-117 More Info >	A$380.15
52	Sensor & Cable Assembly - Prox Sensor - MLS 421-000-118 More Info >	A$456.00
53	Clutch & Plug Assembly - MLS 421-000-138 More Info >	A$2,400.00
54	Valve bank and superseal plug assembly - Rear valve NC for Snake MLS 421-000-168 More Info >	Price on Request
55	Cab Controller Mount Assembly - MLS 421-000-172 More Info >	A$209.09
57	Cab Controller Assembly - MLS with Drive Protect 421-000-612 More Info >	A$1,052.00
58	Retaining Washer - Electric Clutch 450-844-160 More Info >	A$25.23
