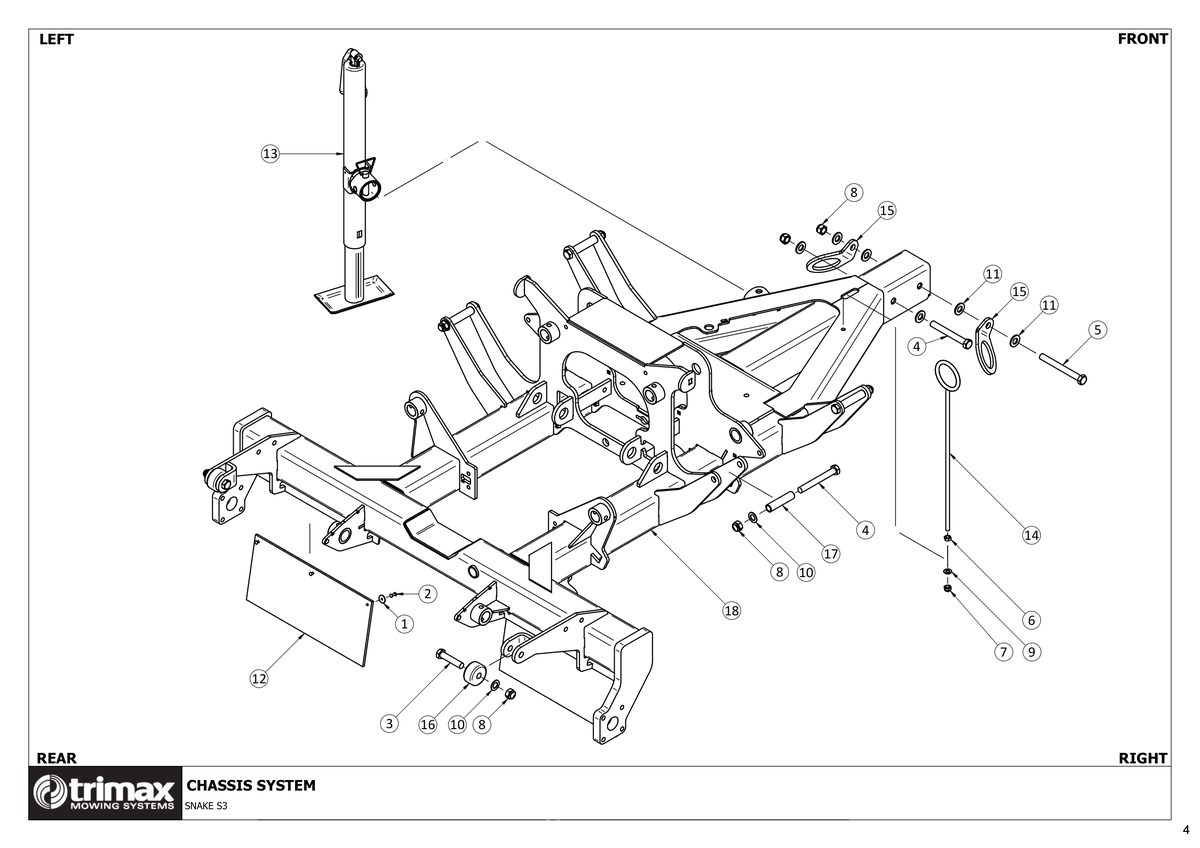

780 - Snake S3 - Chassis System

Snake S3 320, Snake S3 400

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	A$0.29
2	Blind Rivet 213-000-001 More Info >	A$0.54
3	Bolt - Hex Head - M16 x 75 - Trimax Specification 301-216-753 More Info >	A$5.76
4	Bolt - Hex Head - M16 x 130 - Trimax Specification 301-616-133 More Info >	A$15.40
5	Bolt - Hex Head - M16 x 150 - Trimax Specification 301-616-153 More Info >	A$4.43
6	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	A$0.54
7	Nut - Nyloc 307-210-053 More Info >	A$0.89
8	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
9	Washer - Flat 308-100-013 More Info >	A$0.24
10	Washer - Flat 308-160-013 More Info >	A$0.83
11	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
13	Parking Jack Assembly 418-000-217 More Info >	A$220.48
14	Guide 418-000-466 More Info >	A$30.39
15	Lug - Tie Down 418-000-851 More Info >	A$47.85
18	Chassis Weldment - Powder Coated Snake S3 510-000-087 More Info >	Price on Request
19	Decal Sheet - Chassis Snake S3 424-000-380 More Info >	Price on Request
20	Decal Sheet - Deck Rear Snake S3 320 424-000-382 More Info >	Price on Request
21	Decal Sheet - Deck LH/RH Snake S3 320 424-000-381 More Info >	Price on Request
