NOTES:

Part #	Number on image	Usage Notes
419-000-052	8	Includes Lynch Pin Includes Lynch Pin
301-616-143	10	OPTION - Drawbar Clevis OPTION - Drawbar Clevis
301-216-403	11	OPTION - Drawbar Clevis & Adapter Plate OPTION - Drawbar Clevis & Adapter Plate
301-616-153	12	OPTION - Drawbar Clevis & Adapter Plate OPTION - Drawbar Clevis & Adapter Plate
418-000-529	13	OPTION - Drawbar Clevis. OPTION - Drawbar Clevis & Adapter Plate OPTION - Drawbar Clevis. OPTION - Drawbar Clevis & Adapter Plate

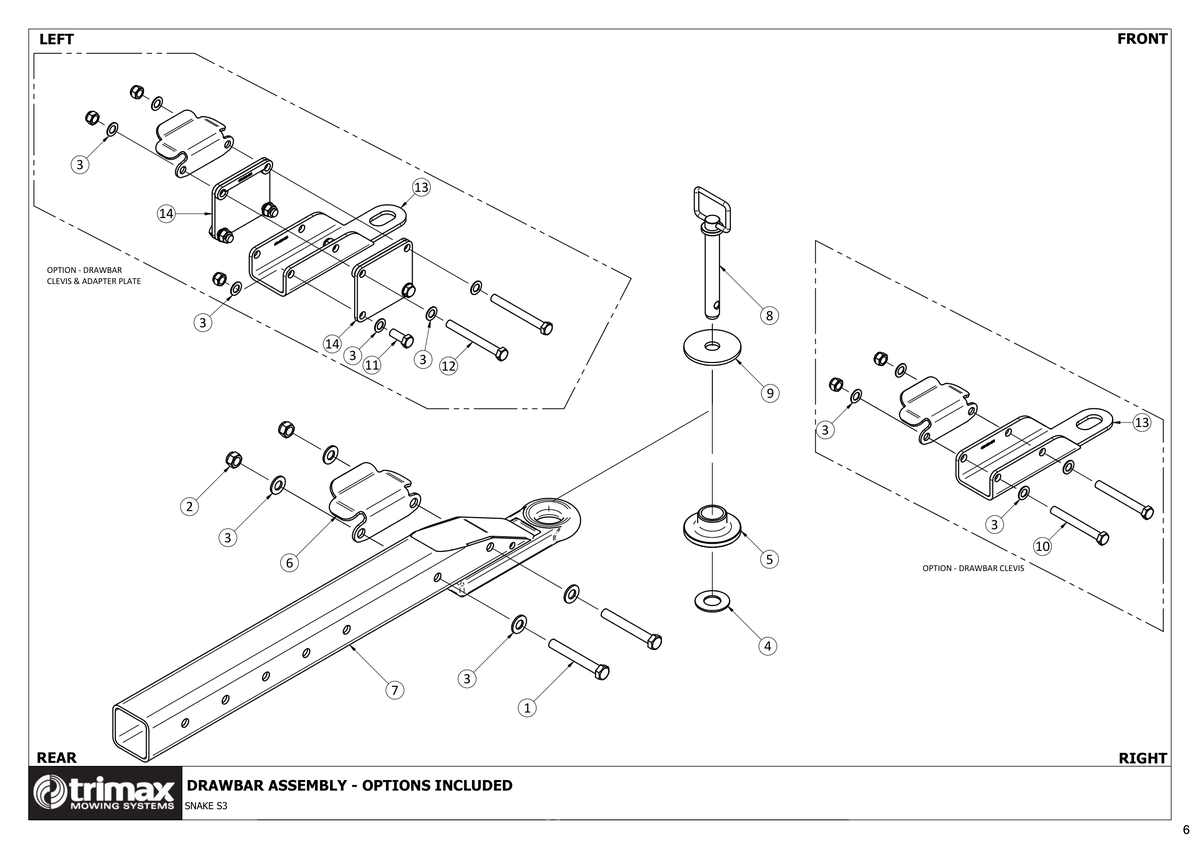

780 - Snake S3 - Drawbar Assembly

Snake S3 320, Snake S3 400

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M16 x 120 - Trimax Specification 301-616-123 More Info >	A$10.11
2	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
3	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
4	Washer - Heavy Flat 308-270-063 More Info >	A$2.72
5	Wear Bush - Tow Eye 402-840-130 More Info >	A$90.00
6	PTO Hanger - Pegasus Vulcan Snake 418-000-782 More Info >	A$49.09
8	Pin - Top Link - Includes Linch Pin i See notes section for usage notes on this part 419-000-052 More Info >	A$24.25
10	Bolt - Hex Head - M16 x 140 - Trimax Specification i See notes section for usage notes on this part 301-616-143 More Info >	A$3.76
11	Bolt - Hex Head - M16 x 40 - Trimax Specification i See notes section for usage notes on this part 301-216-403 More Info >	A$1.83
12	Bolt - Hex Head - M16 x 150 - Trimax Specification i See notes section for usage notes on this part 301-616-153 More Info >	A$4.43
13	Folding i See notes section for usage notes on this part 418-000-529 More Info >	A$148.14
