NOTES:

Part #	Number on image	Usage Notes
416-842-880	11	For Tyre - Road use P/N: 416-842-881 For US / UK Tyre - Turf use P/N: 416-000-199 For Tyre - Road use P/N: 416-842-881 For US / UK Tyre - Turf use P/N: 416-000-199
416-000-195	14	Bearing Kit contains: 1x bearing 1x seal inner 1x nut flange 1x cap Bearing Kit contains: 1x bearing 1x seal inner 1x nut flange 1x cap
416-000-074	15	For Wheel Assembly Road use P/N: 416-000-100 For US / UK Wheel Assembly Turf use P/N: 416-000-200 For Wheel Assembly Road use P/N: 416-000-100 For US / UK Wheel Assembly Turf use P/N: 416-000-200

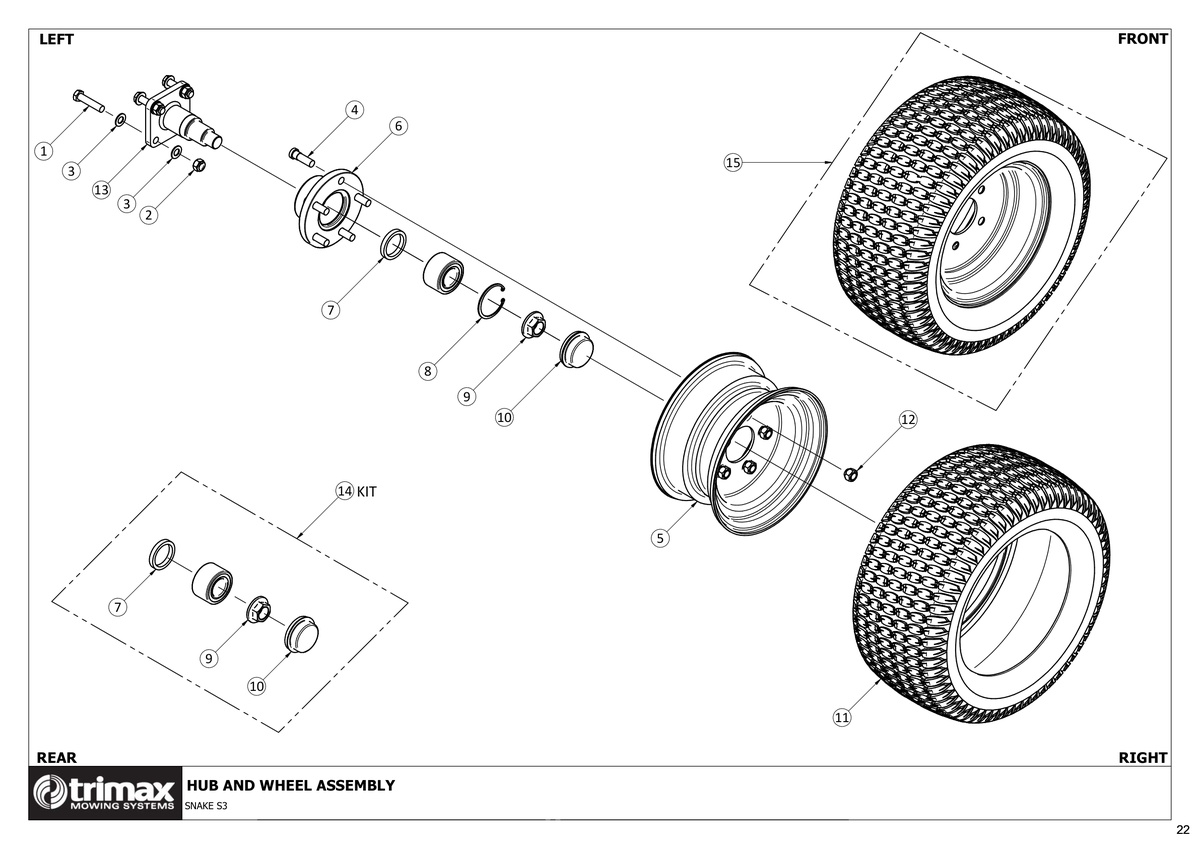

780 - Snake S3 - Hub & Wheel Assembly

Snake S3 320, Snake S3 400

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	A$1.12
2	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
3	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
5	Wheel Rim 5 Stud 416-000-080 More Info >	A$213.70
6	Hub - Sealed - Axle 1500kg 416-000-172 More Info >	Price on Request
7	Seal - Inner - Sealed Hub 416-000-174	Price on Request
8	Circlip Internal 64 416-000-175	Price on Request
9	Nut Flanged 1" - 12 TPI UNF - Sealed Hub 416-000-176	Price on Request
10	Cap - Wheel - Sealed Hub 416-000-178	Price on Request
11	Tyre - Turf i See notes section for usage notes on this part 416-842-880 More Info >	A$292.56
12	Wheel Nut 416-842-890 More Info >	A$2.60
14	Bearing Kit - Hub Assembly i See notes section for usage notes on this part 416-000-195	Price on Request
15	Wheel Assembly Turf - (incl. Tyre & Rim) - Snake i See notes section for usage notes on this part 416-000-074 More Info >	A$533.61
