NOTES:

Part #	Number on image	Usage Notes
409-000-061	11	For Customers with MLS The Rear Hose Is Longer Use P/N 409-000-141 For Customers with MLS The Rear Hose Is Longer Use P/N 409-000-141

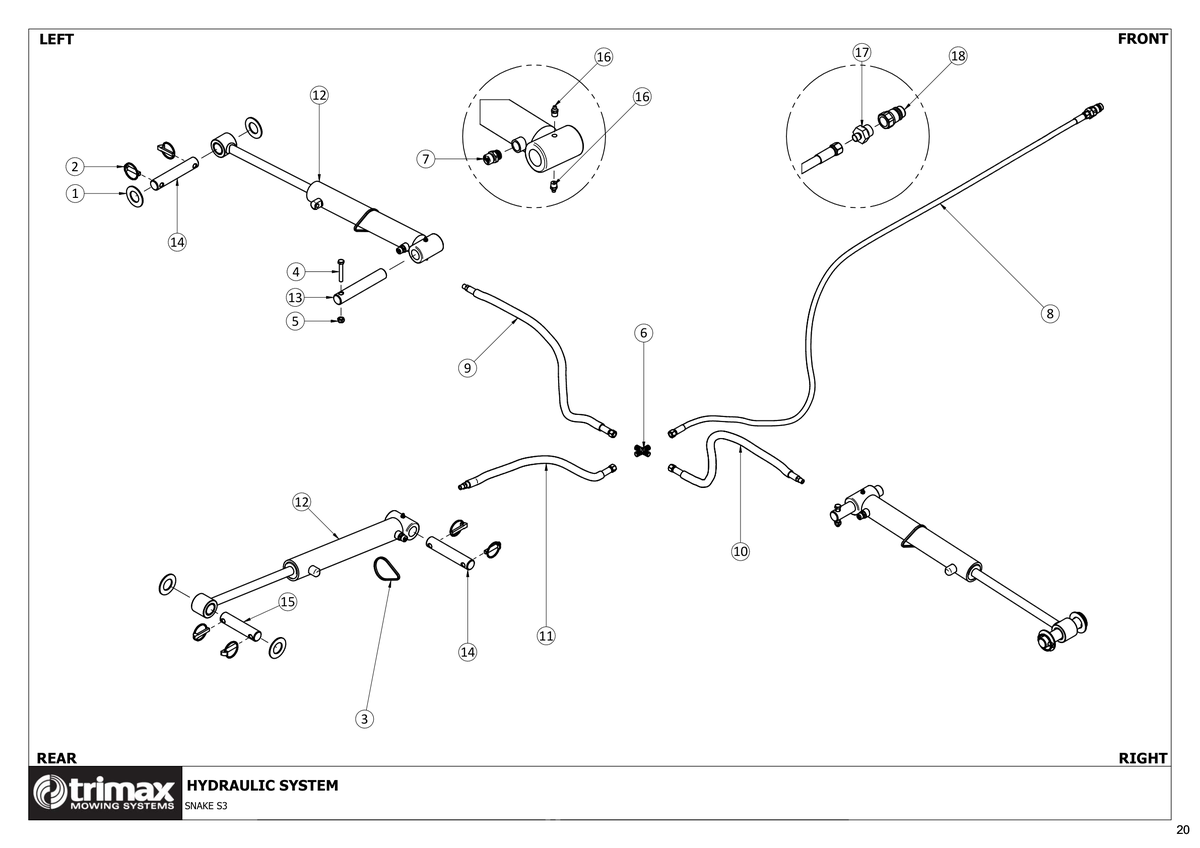

780 - Snake S3 - Hydraulic System

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-203-613 More Info >	A$2.84
2	Linch Pin 203-300-700 More Info >	A$3.05
3	Cable tie 210-900-011 More Info >	A$1.07
5	Nut - Nyloc 307-210-053 More Info >	A$0.89
6	Cross - Hydraulic 408-000-053 More Info >	A$39.81
7	Breather - Capped 3/8" BSP 408-000-083 More Info >	Price on Request
8	Hose Assembly - Fron 409-000-059 More Info >	A$250.09
9	Hose Assembly 409-000-060 More Info >	Price on Request
11	Hose Assembly - Rear i See notes section for usage notes on this part 409-000-061 More Info >	A$41.29
12	Hydraulic Cylinder - Ø2" x 335 Stroke - Snake 409-000-086 More Info >	A$998.36
13	Pin - Hydraulic Cylinder 419-000-034 More Info >	A$32.04
14	Pin - Hydraulic Cylinder 419-000-035 More Info >	A$29.49
15	Pin - Hydraulic Cylinder 419-000-039 More Info >	A$26.60
16	Grease Nipple 208-442-550 More Info >	A$4.72
17	Nipple 408-448-280 More Info >	A$23.83
18	Coupling 408-447-580 More Info >	A$50.73
