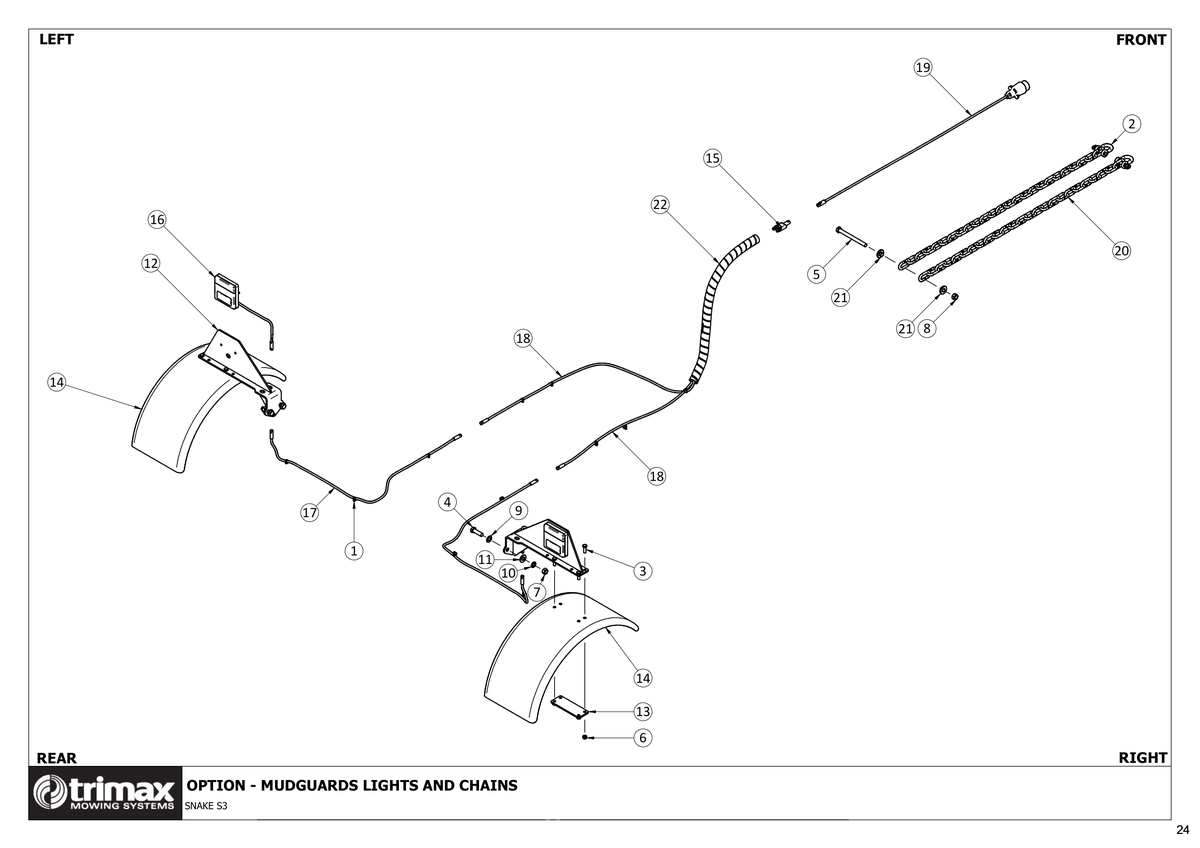

780 - Snake S3 - Mudguards Lights & Chain - Option

Snake S3 320, Snake S3 400

Grouped product items
No. Image Product Name Price Quantity
1 Cable Tie - Black [210-900-012] Cable Tie - Black 210-900-012
Price on Request
2 D-Shackle NZS5467 [214-000-002] D-Shackle NZS5467 214-000-002
A$30.97
3 Bolt - Hex Head - M8 x 25 - Trimax Specification [301-208-253] Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253
A$0.29
4 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
A$4.17
5 Bolt - Hex Head - M12 x 130 - Trimax Specification [301-612-133] Bolt - Hex Head - M12 x 130 - Trimax Specification 301-612-133
Price on Request
6 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
A$1.18
7 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
A$0.80
8 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
A$1.07
9 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
A$0.65
10 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
A$0.65
11 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
A$1.65
12 Mudguard Mount Weldment - Powder Coated Snake S3 [410-000-571] Mudguard Mount Weldment - Powder Coated Snake S3 410-000-571
Price on Request
13 Clamp - Mudguard - Powder Coated Snake S3 [410-000-575] Clamp - Mudguard - Powder Coated Snake S3 410-000-575
Price on Request
14 Mudguard - Rolled Powder Coated Snake S3 [410-000-577] Mudguard - Rolled Powder Coated Snake S3 410-000-577
Price on Request
15 Trailer Loom - Y-connector [421-000-054] Trailer Loom - Y-connector 421-000-054
A$33.48
16 LED Tail Light - 12V [421-000-056] LED Tail Light - 12V 421-000-056
A$114.74
17 Tail Light Cable - 1.3M - 4C130C [421-000-064] Tail Light Cable - 1.3M - 4C130C 421-000-064
A$40.37
18 Loom - Tail Light Cable 1.9m [421-000-069] Loom - Tail Light Cable 1.9m 421-000-069
A$43.11
19 Trailer Plug inc. Cable 1m /w Metal Plug [421-000-586] Trailer Plug inc. Cable 1m /w Metal Plug 421-000-586
A$228.41
20 Chain - Trailier Safety [450-000-109] Chain - Trailier Safety 450-000-109
A$65.83
21 Washer - Safety Chain [450-000-110] Washer - Safety Chain 450-000-110
Price on Request
22 Spiral Tie - For Hydraulic Lines Plastic Black (400mm) [450-900-014] Spiral Tie - For Hydraulic Lines Plastic Black (400mm) 450-900-014
A$12.80
