NOTES:

Part #	Number on image	Usage Notes
416-000-121	11	For braked axle assembly exploded view look up page 119 for individual parts
416-000-122	12	For braked axle assembly exploded view look up page 119 for individual parts
421-000-580	22	Parts 22 and 23 come as a kit: 472-000-008
472-000-004	23	Parts 22 and 23 come as a kit: 472-000-008

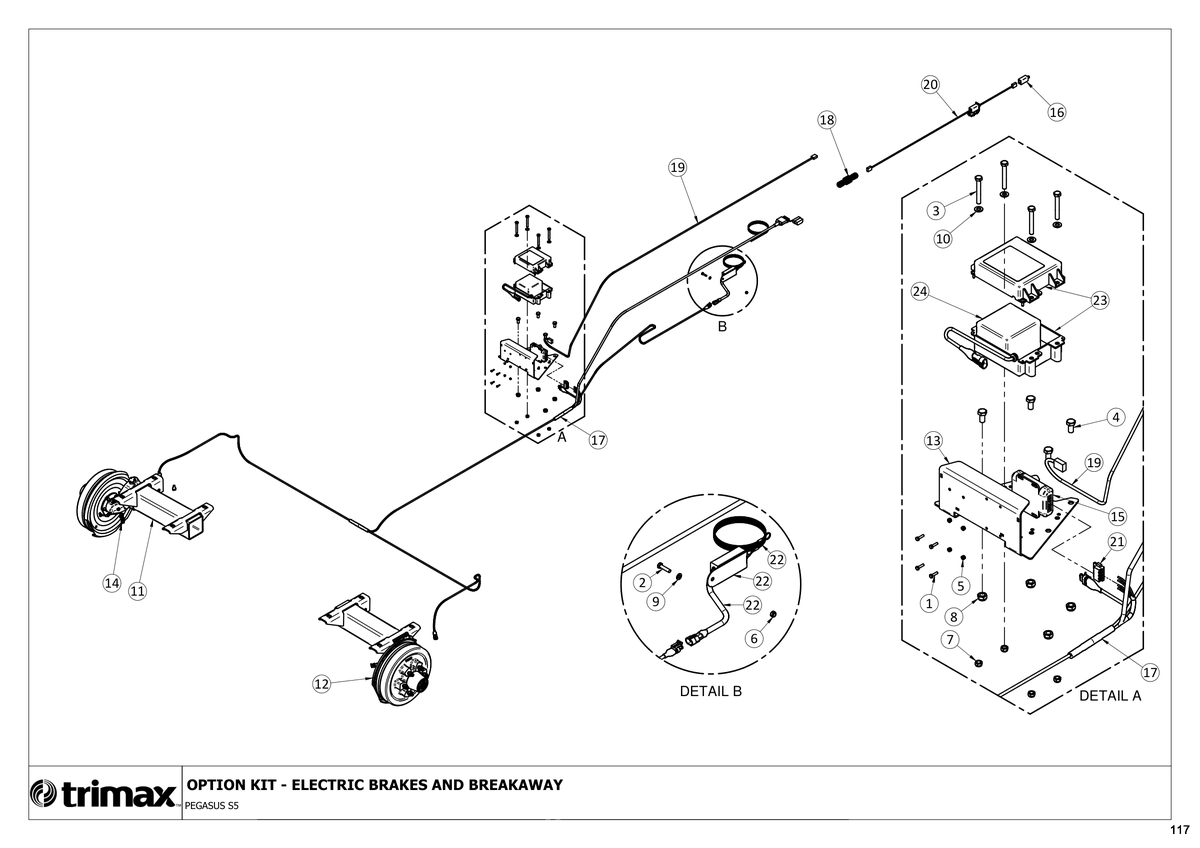

781 - Pegasus S5 610 - Electric Brake Kit and Breakaway - Option

Pegasus S5 610

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M4 x 16 - Trimax Specification 301-204-163 More Info >	Price on Request
2	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	A$0.29
3	Bolt - Hex Head - M8 x 60 - Trimax Specification 301-208-603 More Info >	A$0.60
4	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	A$0.80
5	Nut - Nyloc 307-204-053 More Info >	A$0.10
6	Nut - Nyloc 307-206-053 More Info >	A$0.89
7	Nut - Nyloc 307-208-053 More Info >	A$0.55
8	Nut - Nyloc 307-210-053 More Info >	A$0.89
9	Washer - Flat 308-060-013 More Info >	A$0.04
10	Washer - Flat 308-080-013 More Info >	A$0.06
11	Axle - Complete - 12" Electric Brake - LH i See notes section for usage notes on this part 416-000-121 More Info >	Price on Request
12	Axle - Complete - 12" Electric Brakes - RH i See notes section for usage notes on this part 416-000-122 More Info >	Price on Request
13	Brake Controller Bracket 417-001-667 More Info >	Price on Request
15	Brake Controller 421-000-405 More Info >	Price on Request
16	Brake Sensitivity Controller 421-000-431 More Info >	A$474.00
22	Brake System - Break Away Switch Assembly i See notes section for usage notes on this part 421-000-580 More Info >	Price on Request
23	Brake Sys - Battery Case Assembly i See notes section for usage notes on this part 472-000-004 More Info >	Price on Request
24	Brake Sys - Battery - Trimax Specification 472-000-005 More Info >	Price on Request
