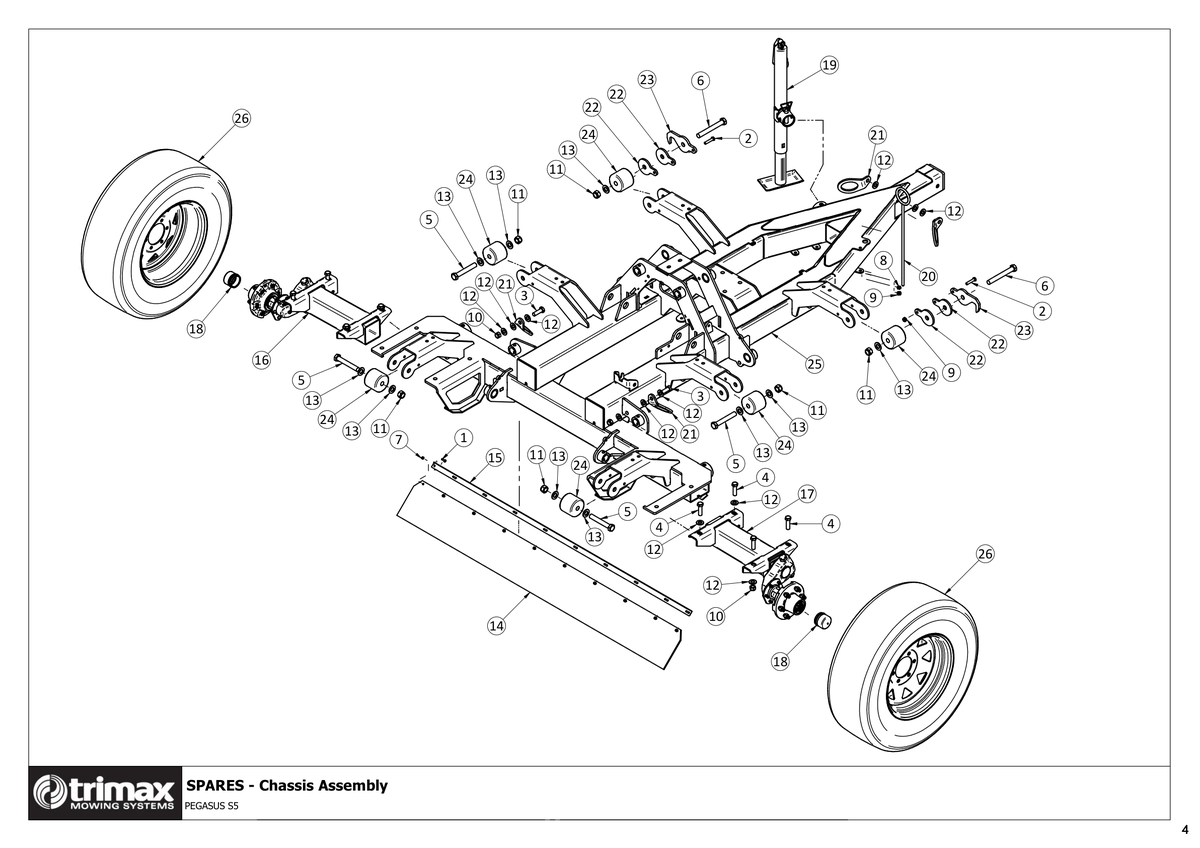

781 - Pegasus S5 - Chassis Assembly

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	A$0.29
2	Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503 More Info >	A$0.74
3	Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503 More Info >	A$8.03
4	Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553 More Info >	A$9.15
5	Bolt - Hex Head - M20 x 130 - Trimax Specification 301-620-133 More Info >	A$17.09
6	Bolt - Hex Head - M20 x 160 - Trimax Specification 301-620-163 More Info >	Price on Request
7	Nut - Nyloc 307-206-053 More Info >	A$0.89
8	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	A$0.54
9	Nut - Nyloc 307-210-053 More Info >	A$0.89
10	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
11	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	A$2.25
12	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
13	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
14	Safety Flap - Deck - Rear 178 410-841-120 More Info >	A$137.13
15	Clamp Strip - Safety Flap 178 410-841-200 More Info >	A$29.17
16	Axle Assembly – LH Pegasus S5 416-000-128 More Info >	A$1,352.49
17	Axle Assembly – RH Pegasus S5 416-000-129 More Info >	A$1,352.49
18	Bearing Buddy - Complete Assembly 416-000-140 More Info >	A$135.40
19	Parking Jack Assembly 418-000-217 More Info >	A$220.48
20	Guide 418-000-466 More Info >	A$30.39
21	Lug - Tie Down 418-000-851 More Info >	A$47.85
24	Guide Roller 418-844-364 More Info >	A$81.82
