NOTES:

Part #	Number on image	Usage Notes
406-340-590	8	Used on Pegasus S5 493 and Pegasus S5 610 standard Drive System only Used on Pegasus S5 493 and Pegasus S5 610 standard Drive System only Used on Pegasus S5 493 and Pegasus S5 610 standard Drive System only Used on Pegasus S5 493 and Pegasus S5 610 standard Drive System only
406-340-890	9	PTO Shaft 406-340-890 to include PTO Orientation Decal 424-000-391 PTO Shaft 406-340-890 to include PTO Orientation Decal 424-000-391 PTO Shaft 406-340-890 to include PTO Orientation Decal 424-000-391 PTO Shaft 406-340-890 to include PTO Orientation Decal 424-000-391
406-000-068	12	Used on Pegasus S5 722 standard Drive System only Used on Pegasus S5 722 standard Drive System only Used on Pegasus S5 722 standard Drive System only Used on Pegasus S5 722 standard Drive System only
406-340-592	13	Used on Pegasus S5 with MLS Drive System only Used on Pegasus S5 with MLS Drive System only Used on Pegasus S5 with MLS Drive System only Used on Pegasus S5 with MLS Drive System only

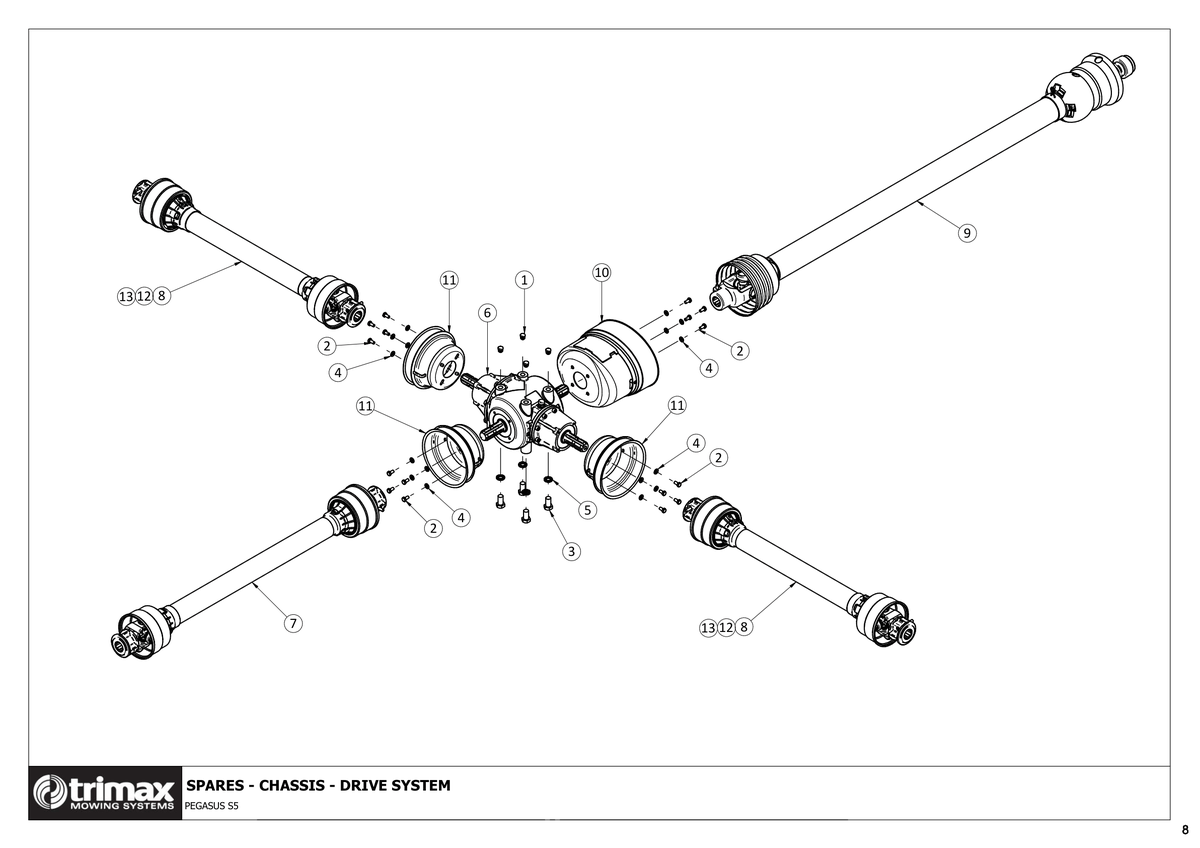

781 - Pegasus S5 - Chassis Drive System

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Blanking Plug 209-900-013 More Info >	A$0.45
2	Bolt 301-208-163 More Info >	A$0.54
4	Washer - Flat 308-080-013 More Info >	A$0.06
5	Washer - Nordloc 308-160-083 More Info >	A$8.03
6	Gearbox 405-201-020 More Info >	A$2,347.17
7	PTO Shaft 406-340-570 More Info >	A$350.39
8	PTO Shaft i See notes section for usage notes on this part 406-340-590 More Info >	A$337.05
9	PTO Shaft Wide Angle i See notes section for usage notes on this part 406-340-890 More Info >	A$1,657.79
10	PTO Cone - Wide angle 410-000-257 More Info >	A$102.18
11	Cone - PTO Holes Punched 410-440-402 More Info >	A$29.59
12	PEGASUS S5 722 PTO Shaft i See notes section for usage notes on this part 406-000-068	Price on Request
13	PTO Shaft - 6 Bolt Flange i See notes section for usage notes on this part 406-340-592 More Info >	A$553.79
