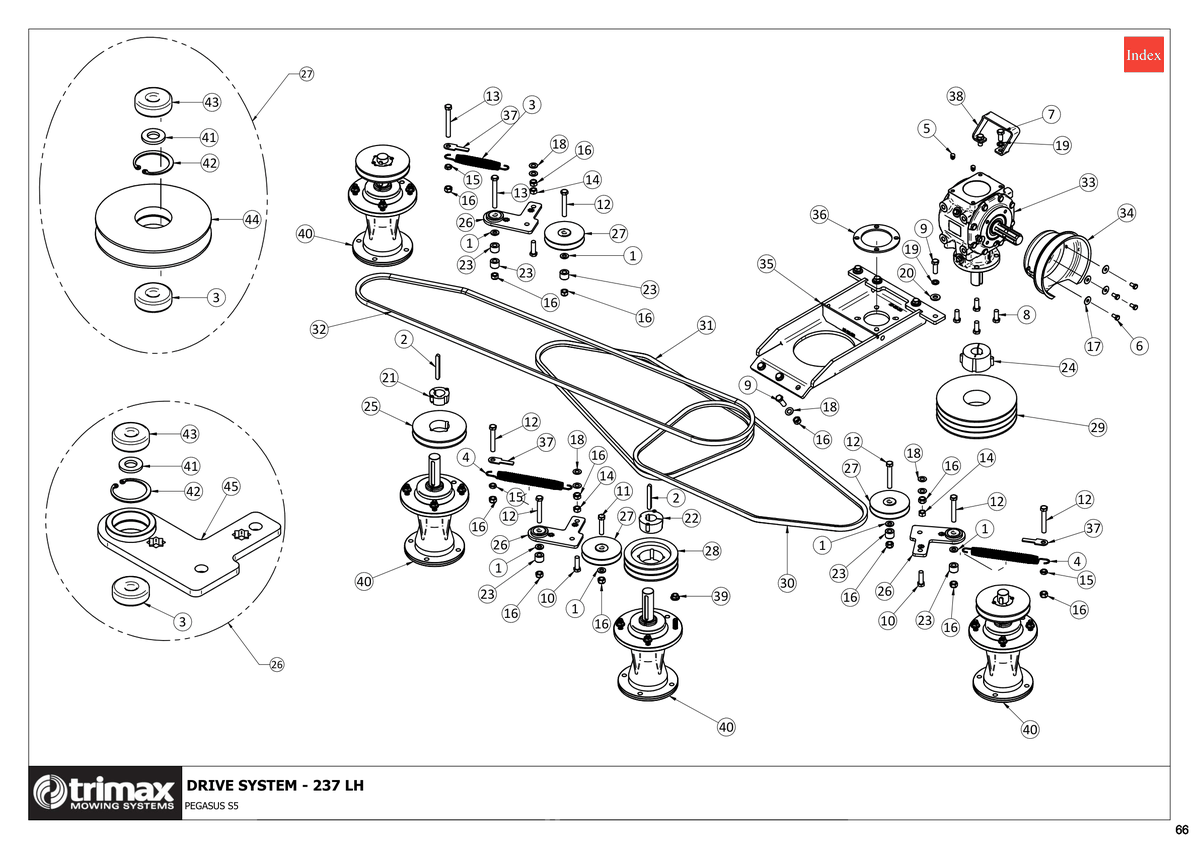

781 - Pegasus S5 - Drive System 237 LH

Pegasus S5 610

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	A$3.54
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	Price on Request
3	Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009 More Info >	A$11.41
5	Blanking Plug - M12 209-900-012 More Info >	A$0.30
6	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
7	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	A$4.17
8	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
9	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
10	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
11	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	A$1.12
12	Bolt - Hex Head - M12 x 80 - Trimax Specification 301-212-803 More Info >	Price on Request
13	Bolt - Hex Head - M12 x 100 - Trimax Specification 301-612-103 More Info >	A$2.25
14	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
15	Nut - Half 307-212-023 More Info >	A$1.16
16	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
17	Washer - Fender - M8 308-080-073 More Info >	A$0.02
18	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
19	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
20	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
21	Bush - Taper Lock 402-000-078 More Info >	A$22.12
22	Bush - Taper Lock 402-000-090 More Info >	A$30.09
24	Bush - Taper Lock 402-060-820 More Info >	A$80.72
25	Pulley - Taper Lock 403-000-083 More Info >	A$57.96
26	Idler Arm - Assembly 403-000-123 More Info >	Price on Request
27	Pulley Assembly - Idler 403-360-111 More Info >	A$95.00
28	Pulley - Taper Lock 403-361-140 More Info >	A$80.96
29	Pulley - Taper Lock 403-361-330 More Info >	A$188.75
30	Vee Belt - Trimax Specification 404-040-750 More Info >	A$38.00
32	Vee Belt - Trimax Specification 404-041-150 More Info >	A$60.00
33	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	A$1,331.62
34	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	A$60.17
36	Gearbox Spacer Disc 417-001-300 More Info >	A$58.85
38	Folding 418-000-633 More Info >	Price on Request
39	Nut - Flange 450-000-078 More Info >	A$3.82
40	Spindle Assembly - Steadfast - With Keyway 504-000-133 More Info >	A$909.50
42	Circlip/Snap Ring - Internal 204-820-371 More Info >	A$2.36
43	Bearing - Trimax Specification - 401-021-900 More Info >	A$15.00
44	Pulley - Idler 403-360-110 More Info >	A$45.86
