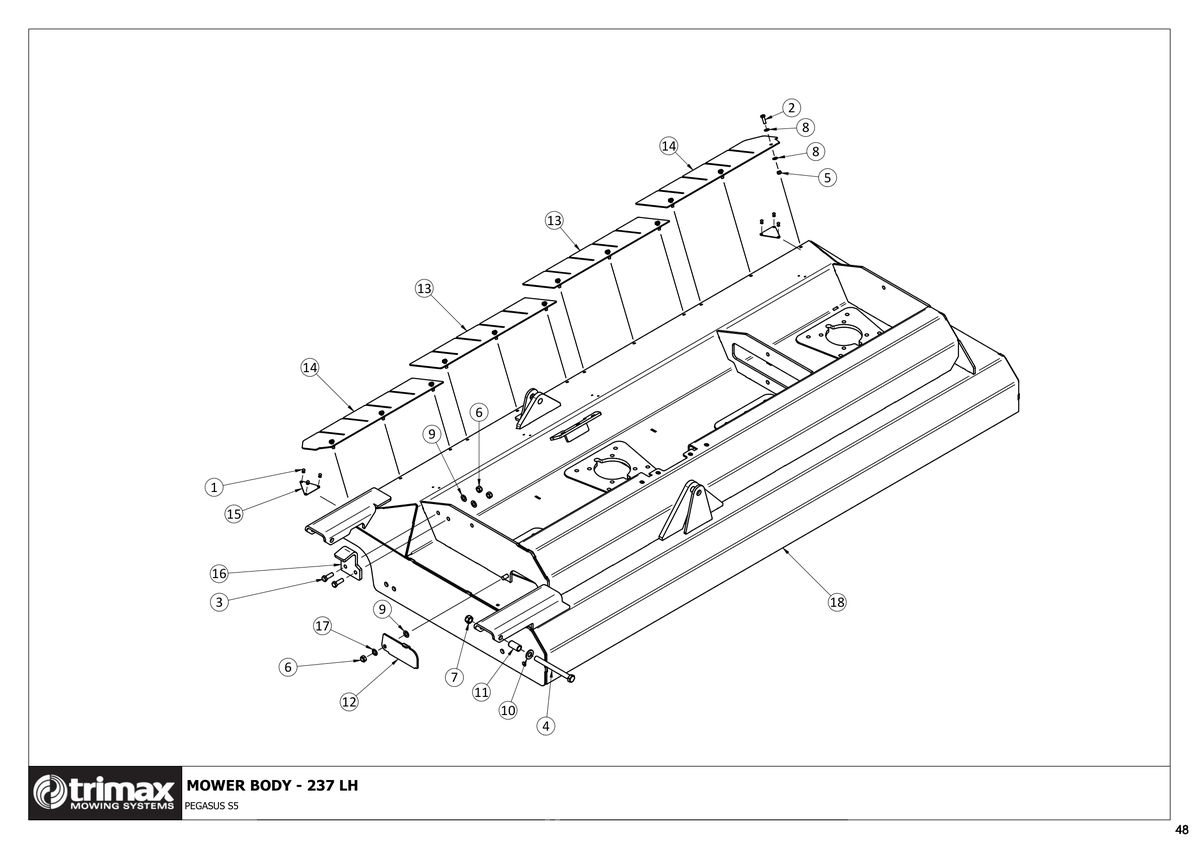

781 - Pegasus S5 - Mower Body Assembly 237 LH

Pegasus S5 610

Grouped product items
No.	Product Name	Price
1	Blind Rivet 213-443-250 More Info >	A$0.80
2	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	A$0.29
3	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
4	Bolt - Hex Head - M16 x 170 - Trimax Specification 301-616-173	Price on Request
5	Nut - Nyloc 307-208-056 More Info >	A$1.18
6	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
7	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
8	Washer - Flat 308-080-016 More Info >	A$0.36
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
10	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
11	Bush - Lock Inner SS 402-000-173 More Info >	Price on Request
12	Wash Panel - LH 410-000-135 More Info >	A$34.99
13	Rear Flap - Inner - Procut S5 410-000-461 More Info >	Price on Request
14	Rear Flap - Outer - Procut S5 410-000-463 More Info >	Price on Request
15	Cap Plate 417-001-024 More Info >	Price on Request
17	Washer - Crinkle 450-000-116 More Info >	A$1.89
18	Body Weldment - Pegasus S5 237 LH 502-000-204 More Info >	Price on Request
