NOTES:

Part #	Number on image	Usage Notes
421-000-612	34	Use P/N 421-000-186 - Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable Use P/N 421-000-186 - Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable Use P/N 421-000-186 - Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable Use P/N 421-000-186 - Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable

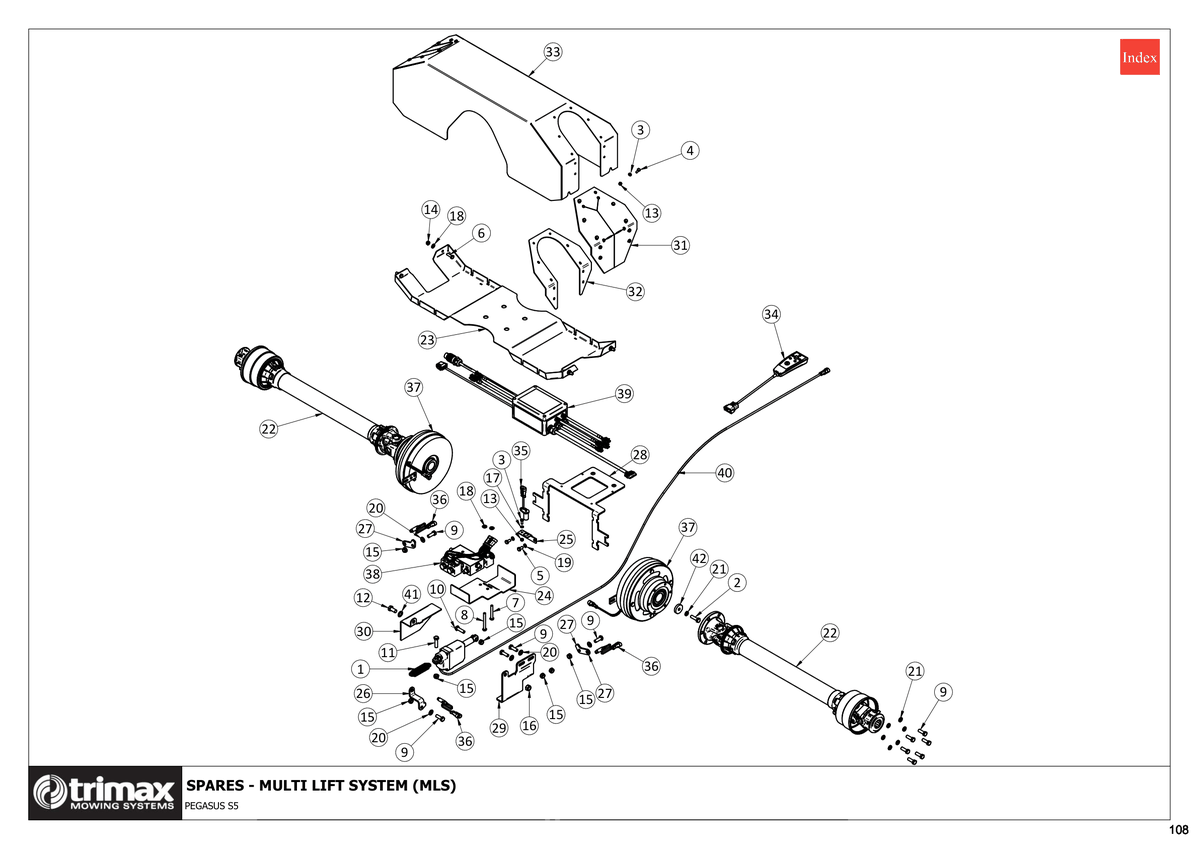

781 - Pegasus S5 - Multi Lift System (MLS)

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Spring - Tension 207-000-008 More Info >	A$94.31
2	Bolt 301-110-353 More Info >	A$1.40
3	Bolt 301-206-163 More Info >	Price on Request
4	Bolt 301-206-203 More Info >	A$0.29
5	Bolt 301-208-163 More Info >	A$0.54
6	Bolt 301-208-253 More Info >	A$0.29
7	Bolt 301-208-603 More Info >	A$0.50
8	Bolt 301-208-753 More Info >	Price on Request
9	Bolt 301-210-303 More Info >	A$0.80
10	Bolt 301-210-353 More Info >	A$0.97
11	Bolt 301-210-403 More Info >	A$1.18
12	Bolt 301-212-253 More Info >	A$4.17
13	Nut - Nyloc 307-206-053 More Info >	A$0.89
14	Nut - Nyloc 307-208-053 More Info >	A$0.55
15	Nut - Nyloc 307-210-053 More Info >	A$0.89
16	Nut - Nyloc 307-212-053 More Info >	A$1.07
17	Washer - Flat 308-060-013 More Info >	A$0.04
18	Washer - Flat 308-080-013 More Info >	A$0.06
19	Washer - Spring 308-080-043 More Info >	A$0.06
20	Washer - Flat 308-100-013 More Info >	A$0.24
21	Washer - Spring 308-100-043 More Info >	A$0.65
22	PTO Shaft - 6 Bolt Flange 406-340-592 More Info >	A$553.79
23	MLS Bottom Cover 418-000-942	Price on Request
24	Mount Bracket Folding 418-000-398 More Info >	A$59.29
29	Bracket - Remote Unlock 418-000-899 More Info >	Price on Request
30	Cover - Remote Unlock 418-000-901 More Info >	Price on Request
33	MLS Top Cover 418-000-970 More Info >	Price on Request
34	Cab Controller Assembly - MLS with Drive Protect i See notes section for usage notes on this part 421-000-612 More Info >	A$1,052.00
35	Sensor & Cable Assembly - PTO Sensor - MLS 421-000-117 More Info >	A$380.15
36	Sensor & Cable Assembly - Prox Sensor - MLS 421-000-118 More Info >	A$456.19
37	Clutch & Plug Assembly - MLS 421-000-138 More Info >	A$1,920.08
40	Actuator Assembly 421-000-397 More Info >	A$875.00
41	Washer - Crinkle 450-000-116 More Info >	A$1.89
42	Retaining Washer - Electric Clutch 450-844-160 More Info >	A$25.23
