NOTES:

Part #	Number on image	Usage Notes
409-000-086	9	Use part number 408-000-075 - Seal kit for rear Hydraulic Cylinder Assembly Use part number 408-000-075 - Seal kit for rear Hydraulic Cylinder Assembly Use part number 408-000-075 - Seal kit for rear Hydraulic Cylinder Assembly Use part number 408-000-075 - Seal kit for rear Hydraulic Cylinder Assembly
409-000-090	10	Use part number 408-000-071 - Seal kit for side (LH & RH) Hydraulic Cylinder Assembly Use part number 408-000-071 - Seal kit for side (LH & RH) Hydraulic Cylinder Assembly Use part number 408-000-071 - Seal kit for side (LH & RH) Hydraulic Cylinder Assembly Use part number 408-000-071 - Seal kit for side (LH & RH) Hydraulic Cylinder Assembly
409-000-113	10	Ram Specific to Pegasus S5 722 Model only used from serial number on wards 781-722-541-1077330 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from serial number 781-722-541-1077330 onwards Ram Specific to Pegasus S5 722 Model only used from serial number on wards 781-722-541-1077330 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from serial number 781-722-541-1077330 onwards Ram Specific to Pegasus S5 722 Model only used from serial number on wards 781-722-541-1077330 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from serial number 781-722-541-1077330 onwards Ram Specific to Pegasus S5 722 Model only used from serial number on wards 781-722-541-1077330 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from serial number 781-722-541-1077330 onwards
409-000-114	10	Ram Specific to Pegasus S5 722 Model only used from serial number on wards 781-722-541-1077330 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from serial number 781-722-541-1077330 onwards Ram Specific to Pegasus S5 722 Model only used from serial number on wards 781-722-541-1077330 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from serial number 781-722-541-1077330 onwards Ram Specific to Pegasus S5 722 Model only used from serial number on wards 781-722-541-1077330 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from serial number 781-722-541-1077330 onwards Ram Specific to Pegasus S5 722 Model only used from serial number on wards 781-722-541-1077330 Use P/N 408-000-098 - Seal kit for Pegasus S5 722 model manufactured from serial number 781-722-541-1077330 onwards
409-000-102	12	Use part number 409-000-103 - Complete Hydraulic Hose Kit for Pegasus S5 Use part number 409-000-103 - Complete Hydraulic Hose Kit for Pegasus S5 Use part number 409-000-103 - Complete Hydraulic Hose Kit for Pegasus S5 Use part number 409-000-103 - Complete Hydraulic Hose Kit for Pegasus S5

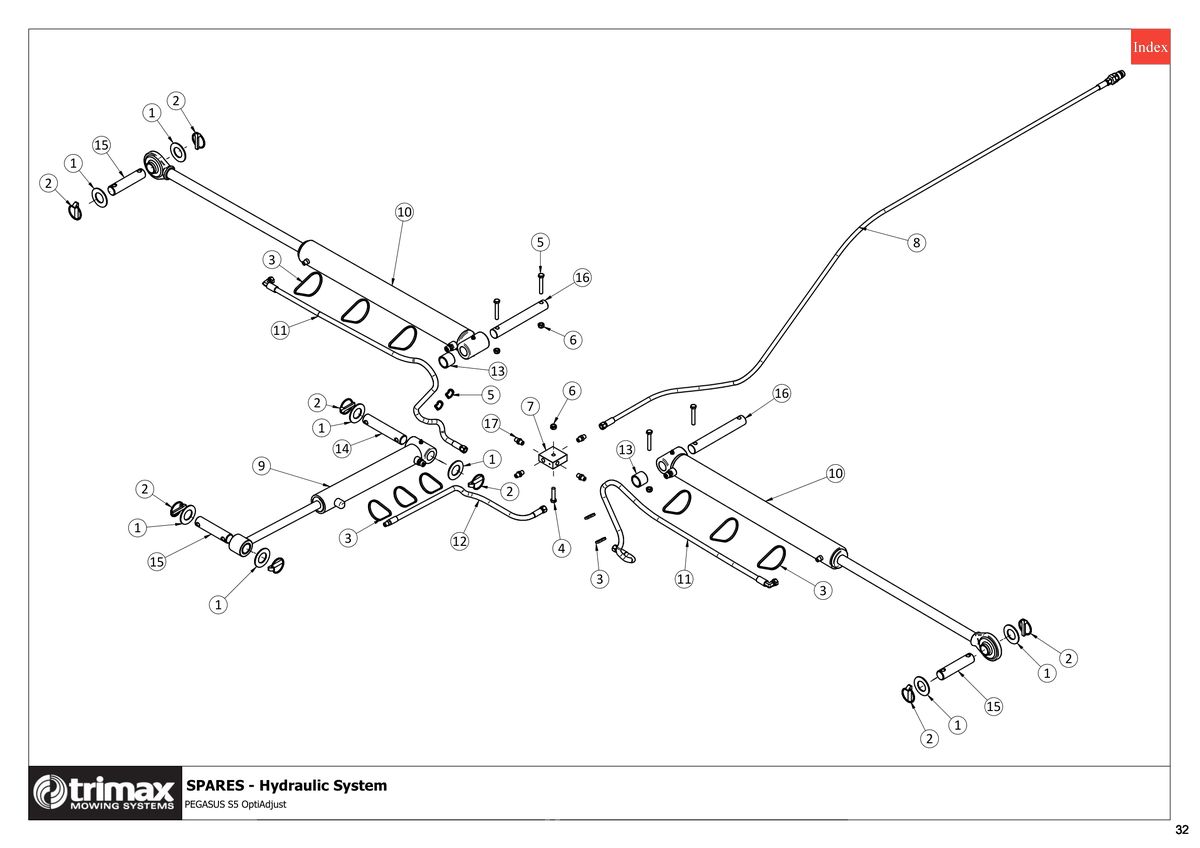

781 - Pegasus S5 OptiAdjust - Hydraulic System

Pegasus S5 OptiAdjust 493, Pegasus S5 OptiAdjust 610, Pegasus S5 OptiAdjust 722

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-203-613 More Info >	A$2.84
2	Linch Pin 203-300-700 More Info >	A$3.05
3	Cable tie 210-900-011 More Info >	A$1.07
5	Bolt 301-210-603 More Info >	A$0.83
6	Nut - Nyloc 307-210-053 More Info >	A$0.89
7	Junction Assembly - Hydraulic 408-448-500 More Info >	A$234.12
8	Hose Assembly - Hydraulic - Tractor 409-000-076 More Info >	A$123.69
9	Hydraulic Cylinder - Ø2" x 335 Stroke - Snake i See notes section for usage notes on this part 409-000-086 More Info >	A$998.36
10	Hydraulic Cylinder i See notes section for usage notes on this part 409-000-090 More Info >	A$1,396.28
10	Cylinder i See notes section for usage notes on this part 409-000-113 More Info >	A$1,455.06
10	Cylinder i See notes section for usage notes on this part 409-000-114	Price on Request
12	Hose Assembly - Hydraulic - Rear i See notes section for usage notes on this part 409-000-102 More Info >	Price on Request
14	Pin - Hydraulic Cylinder 419-000-035 More Info >	A$29.49
15	Pin - Hydraulic Cylinder 419-000-039 More Info >	A$26.60
