Parts Shop

Request Price

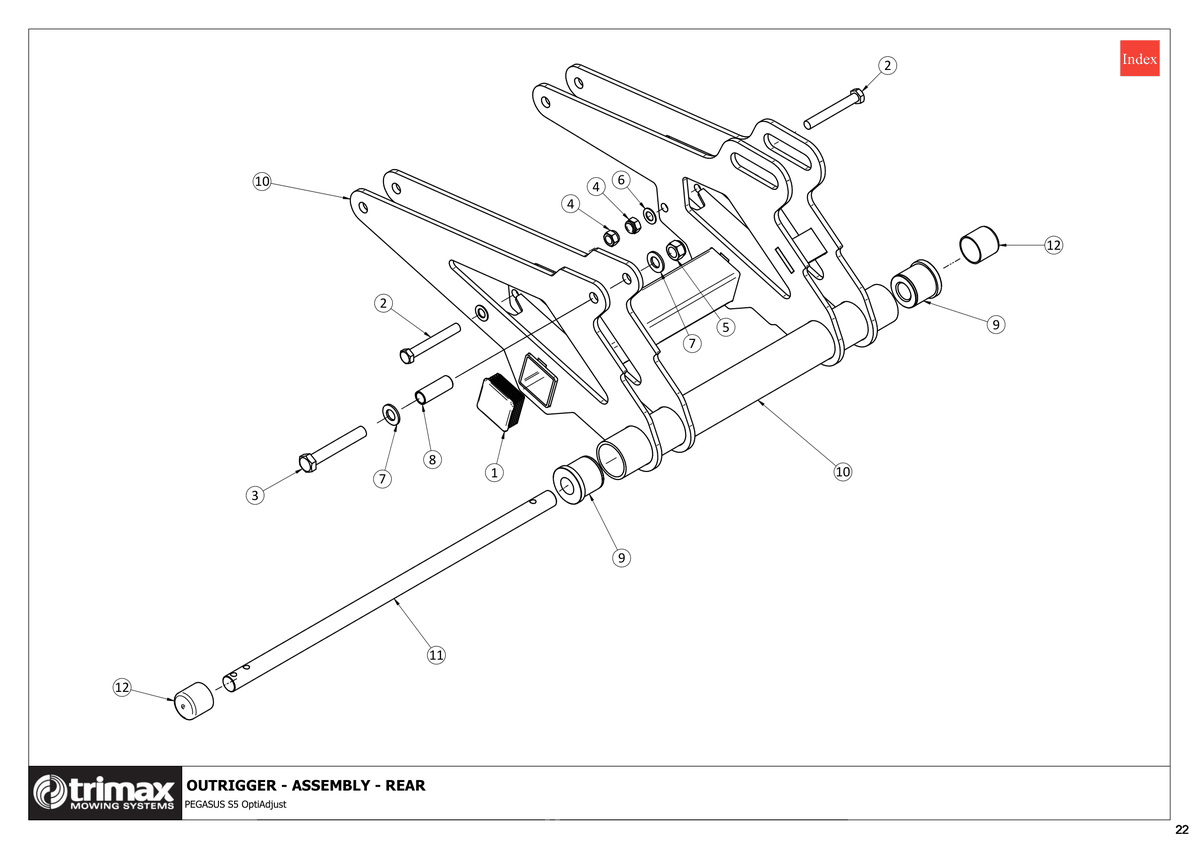

781 - Pegasus S5 OptiAdjust - Outrigger Assembly Rear

Pegasus S5 OptiAdjust 493, Pegasus S5 OptiAdjust 610, Pegasus S5 OptiAdjust 722

Grouped product items
No. Image Product Name Price Quantity
1 Cap - 75 X75 [209-000-008] Cap - 75 X75 209-000-008
Price on Request
2 Bolt - Hex Head - M16 x 120 - Trimax Specification [301-616-123] Bolt - Hex Head - M16 x 120 - Trimax Specification 301-616-123
A$10.11
3 Bolt - Hex Head - M20 x 130 - Trimax Specification [301-620-133] Bolt - Hex Head - M20 x 130 - Trimax Specification 301-620-133
A$17.09
4 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
A$1.44
5 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
A$2.25
6 Washer - Flat [308-160-013] Washer - Flat 308-160-013
A$0.83
7 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
A$1.44
9 Hinge Bush - Outrigger [402-000-149] Hinge Bush - Outrigger 402-000-149
A$73.21
12 Cap - Hinge Pin Ø 1 ¼"
 [209-000-009] Cap - Hinge Pin Ø 1 ¼" 209-000-009
Price on Request
