NOTES:

Part #	Number on image	Usage Notes
411-322-753		Use part number 411-322-753 for complete laser blade assembly (S) fits all models Use part number 411-322-753 for complete laser blade assembly (S) fits all models Use part number 411-322-753 for complete laser blade assembly (S) fits all models

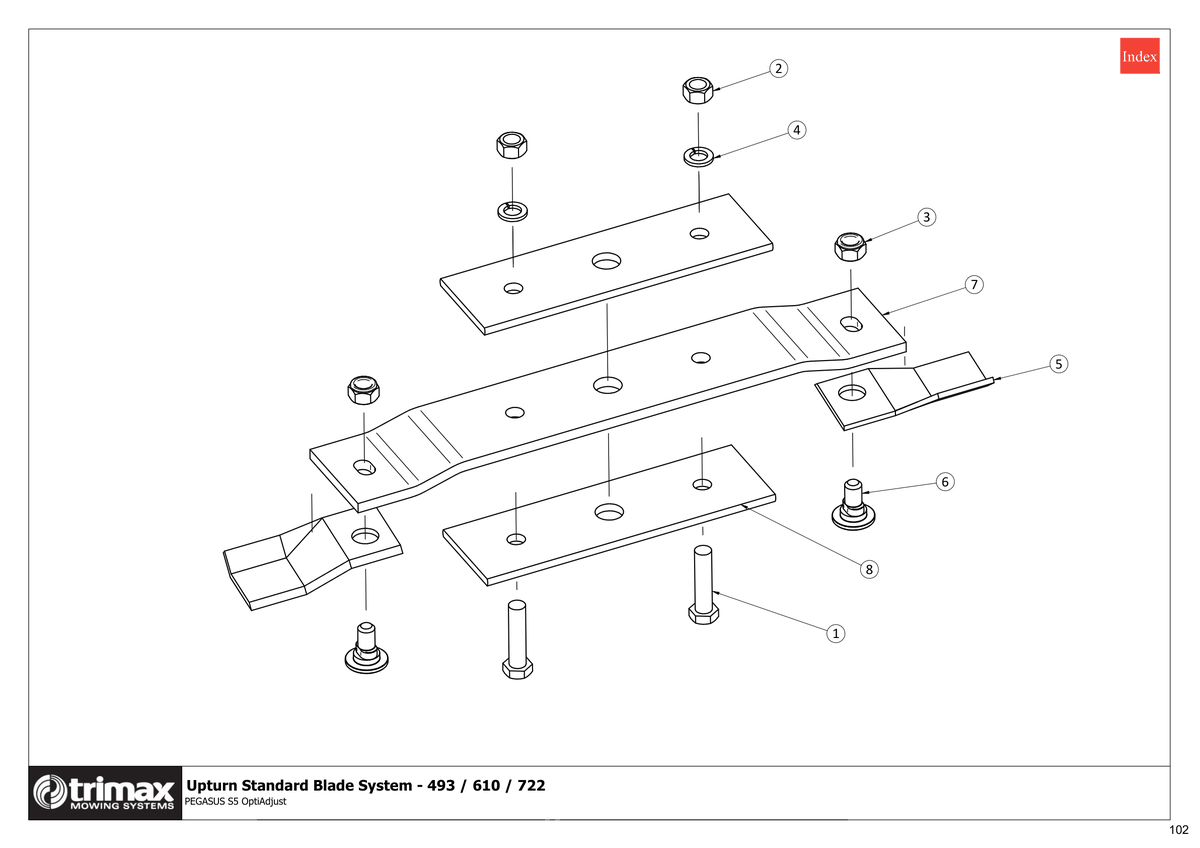

781 - Pegasus S5 OptiAdjust V2 - Cutting System

Pegasus S5 OptiAdjust V2 493, Pegasus S5 OptiAdjust V2 610, Pegasus S5 OptiAdjust V2 722

Grouped product items
No.	Product Name	Price
	Blade Beam Assembly - LazerBladez i See notes section for usage notes on this part 411-322-753 More Info >	A$127.33
1	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	A$4.48
2	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
3	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
5	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842 More Info >	A$9.00
6	Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050 More Info >	A$5.00
7	Blade Beam - LazerBladez 411-322-752 More Info >	A$64.20
8	Clamp Plate - LazerBladez 411-322-820 More Info >	A$27.37
