NOTES:

Part #	Number on image	Usage Notes
414-000-161	24	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161.

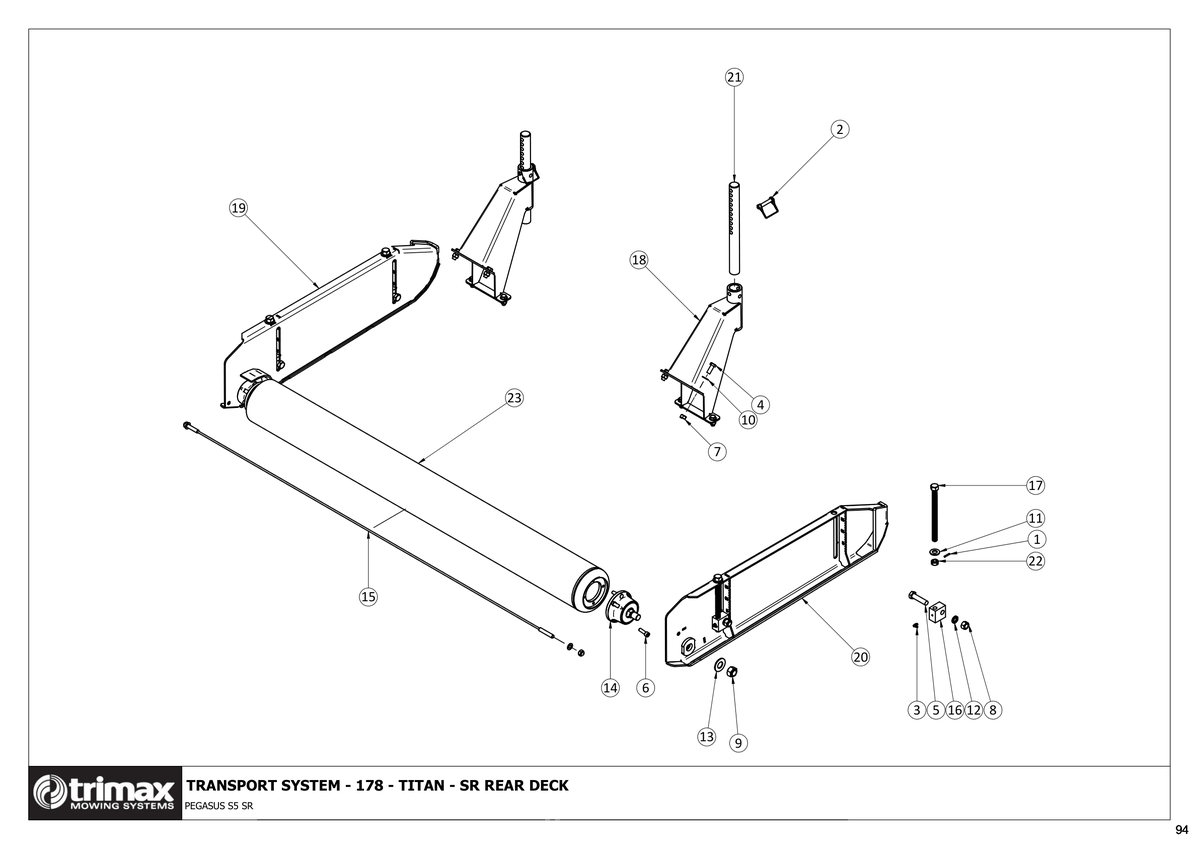

781 - Pegasus S5 SR 722 - Transport System 178 - Rear Deck

Pegasus S5 SR 722

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	A$2.57
2	Shaft Locking Pin - 11mm X 54mm 203-000-001 More Info >	A$5.70
3	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
4	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
5	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	A$7.08
6	Cap Screw - Socket Head M10 x 35 - Trimax Specification - 303-210-353 More Info >	A$5.52
7	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
8	Nut - Plain 307-216-013 More Info >	A$0.97
9	Nyloc Nut M22 307-222-053	Price on Request
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
11	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
12	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	A$8.03
13	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	Price on Request
14	Roller Bearing Assembly - Titan 401-000-035 More Info >	A$267.00
15	Scraper - Roller Scraper Kit - 178cm 404-320-122 More Info >	A$69.00
16	Height Adjuster Block 412-000-255 More Info >	A$72.00
17	Screw Height Adj. 220mm 10.9 Grade 412-000-653 More Info >	Price on Request
18	Dummy Stem Arm - Weldment - Rear Deck - Pegasus S5 SR 412-000-657 More Info >	A$767.65
21	Castor Stem - Pivot Shaft - Tall - Zinc - Pegasus S5 SR 412-000-726 More Info >	A$163.00
22	Collar - Height Adjuster 412-850-260 More Info >	A$25.37
24	Clamp Plate - Titan Bearing Pegasus S4 i See notes section for usage notes on this part 414-000-161 More Info >	A$25.81
