NOTES:

Part #	Number on image	Usage Notes
412-000-675	18	Only required if the chassis height is adjusted after delivery to customer Only required if the chassis height is adjusted after delivery to customer Only required if the chassis height is adjusted after delivery to customer Only required if the chassis height is adjusted after delivery to customer

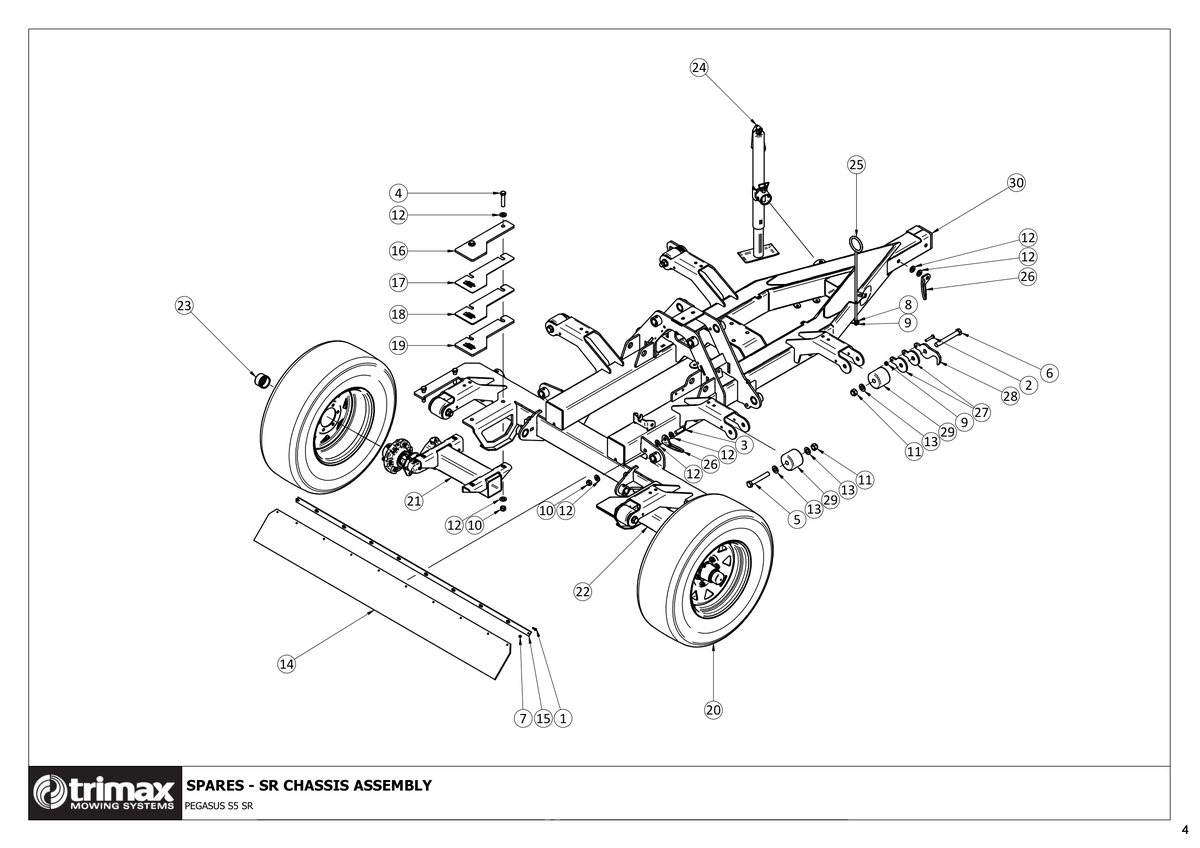

781 - Pegasus S5 SR - Chassis Assembly

Pegasus S5 SR 493, Pegasus S5 SR 610, Pegasus S5 SR 722

Grouped product items
No.	Product Name	Price
1	Bolt 301-206-253 More Info >	A$0.29
2	Bolt 301-210-503 More Info >	A$0.74
3	Bolt 301-216-503 More Info >	A$8.03
4	Bolt 301-216-753 More Info >	A$5.76
5	Bolt 301-620-133 More Info >	A$17.09
6	Bolt - Hex Head M20 x 160 ZP 8.8 301-620-163 More Info >	Price on Request
7	Nut - Nyloc 307-206-053 More Info >	A$0.89
8	Nut - Plain 307-210-013 More Info >	A$0.54
9	Nut - Nyloc 307-210-053 More Info >	A$0.89
10	Nut - Nyloc 307-216-053 More Info >	A$1.44
11	Nut - Nyloc 307-220-053 More Info >	A$2.25
12	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
13	Washer - Heavy Flat 308-200-064 More Info >	A$1.44
14	Safety Flap - Deck - Rear 178 410-841-120 More Info >	A$137.13
15	Clamp Strip - Safety Flap 178 410-841-200 More Info >	A$29.17
16	Dummy Stem - Wearplate - Rear Deck - Pegasus S5 SR 412-000-673 More Info >	A$145.36
18	Dummy Stem - 5mm Packer plate - Rear Deck - Pegasus S5 SR i See notes section for usage notes on this part 412-000-675 More Info >	Price on Request
20	Tyre and Rim for Pegasus S5 416-000-118 More Info >	A$711.42
21	Axle Assembly – LH Pegasus S5 416-000-128 More Info >	A$1,352.49
22	Axle Assembly – RH Pegasus S5 416-000-129 More Info >	A$1,352.49
23	Bearing Buddy - Complete Assembly 416-000-140 More Info >	A$135.40
24	Parking Jack Assembly 418-000-217 More Info >	A$220.48
25	Guide 418-000-466 More Info >	A$30.39
26	Lug - Tie Down 418-000-851 More Info >	A$47.85
29	Guide Roller 418-844-364 More Info >	A$81.82
