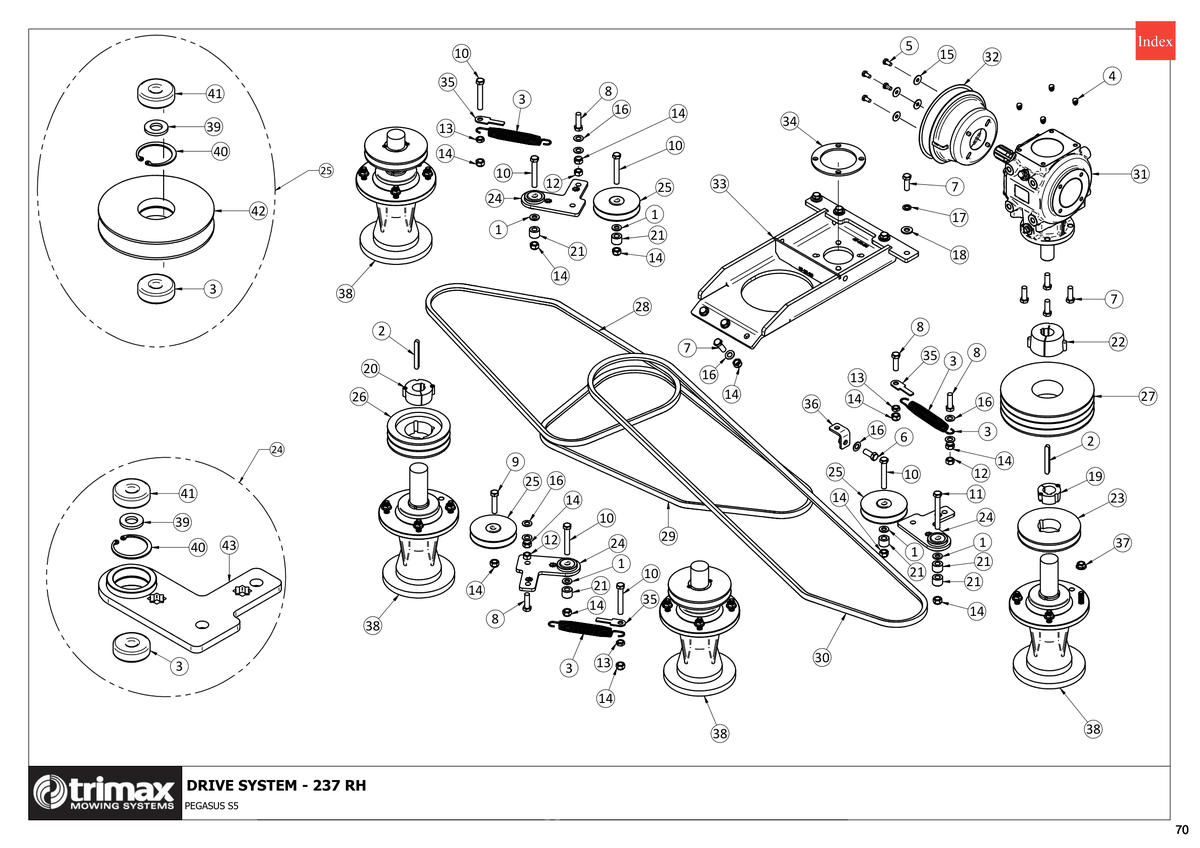

781 - Pegasus S5 SR - Drive System 237 RH

Pegasus S5 SR 493, Pegasus S5 SR 610, Pegasus S5 SR 722

Grouped product items
No.	Product Name	Price
2	Key - 10 x 8 x 85 DIN6885 Form A 205-000-003 More Info >	Price on Request
3	Spring - Tension 207-000-009 More Info >	A$11.41
4	Blanking Plug 209-900-012 More Info >	A$0.30
5	Bolt 301-208-163 More Info >	A$0.54
6	Bolt 301-212-303 More Info >	A$3.36
7	Bolt 301-212-353 More Info >	A$3.86
8	Bolt 301-212-403 More Info >	A$4.17
9	Bolt 301-212-553 More Info >	A$1.12
10	Bolt 301-212-803 More Info >	Price on Request
11	Bolt 301-612-103 More Info >	A$2.25
12	Nut - Plain 307-212-013 More Info >	A$0.80
13	Nut - Half 307-212-023 More Info >	A$1.16
14	Nut - Nyloc 307-212-053 More Info >	A$1.07
15	Washer - Fender - M8 308-080-073 More Info >	A$0.02
16	Washer - Flat 308-120-013 More Info >	A$0.65
17	Washer - Spring 308-120-043 More Info >	A$0.65
18	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
19	Bush - Taper Lock 402-000-078 More Info >	A$22.12
20	Bush - Taper Lock 402-000-090 More Info >	A$30.09
22	Bush - Taper Lock 402-060-820 More Info >	A$80.72
23	Pulley - Taper Lock 403-000-083 More Info >	A$57.96
24	Idler Arm - Assembly 403-000-123 More Info >	Price on Request
25	Pulley Assembly - Idler 403-360-111 More Info >	A$95.00
26	Pulley - Taper Lock 403-361-140 More Info >	A$80.96
27	Pulley - Taper Lock 403-361-330 More Info >	A$188.75
28	Vee Belt 404-040-750 More Info >	A$38.00
30	Vee Belt 404-041-150 More Info >	A$60.00
31	Gearbox 405-200-720 More Info >	A$1,331.62
32	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	A$60.17
34	Gearbox Spacer Disc 417-001-300 More Info >	A$58.85
37	Nut - Flange 450-000-078 More Info >	A$3.82
38	Spindle Assembly - Steadfast - With Keyway 504-000-133 More Info >	A$909.50
1	Washer - Hardened 108-071-513 More Info >	A$3.54
40	Circlip/Snap Ring - Internal 204-820-371 More Info >	A$2.36
41	Bearing 401-021-900 More Info >	A$15.00
42	Pulley - Idler 403-360-110 More Info >	A$45.86
