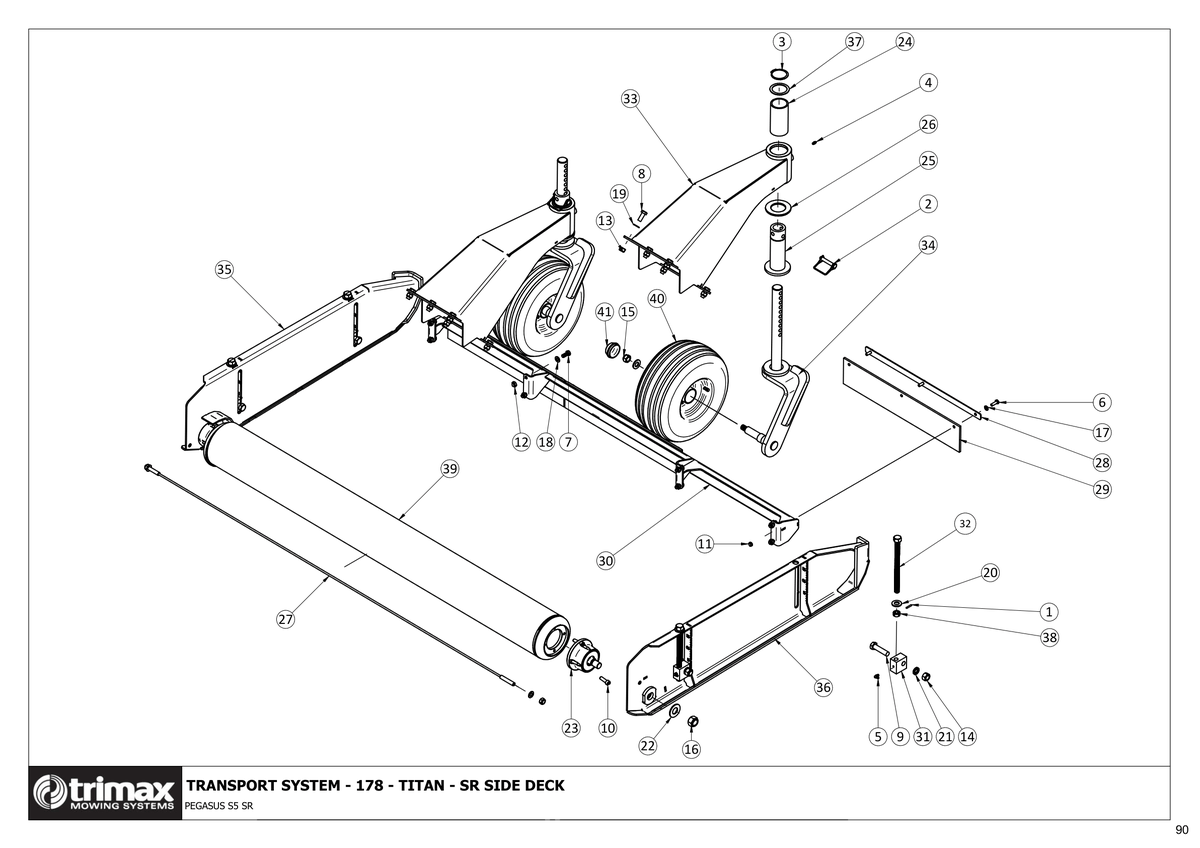

781 - Pegasus S5 SR - Transport System 178 - Side Deck

Pegasus S5 SR 493, Pegasus S5 SR 610, Pegasus S5 SR 722

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	A$2.57
2	Shaft Locking Pin - 11mm X 54mm 203-000-001 More Info >	A$4.71
3	Circlip/Snap Ring - External 204-820-522 More Info >	A$4.04
4	Grease Nipple 208-442-600 More Info >	A$3.78
5	Grease Nipple 208-442-650 More Info >	A$6.43
6	Bolt 301-208-253 More Info >	A$0.29
7	Bolt 301-210-253 More Info >	A$0.80
8	Bolt 301-212-303 More Info >	A$3.36
9	Bolt 301-216-653 More Info >	A$7.08
10	Cap Screw 303-210-353 More Info >	A$5.52
11	Nut - Nyloc 307-208-056 More Info >	A$1.18
12	Nut - Nyloc 307-210-053 More Info >	A$0.89
13	Nut - Nyloc 307-212-053 More Info >	A$1.07
14	Nut - Plain 307-216-013 More Info >	A$0.97
15	Nut - Nyloc 307-216-053 More Info >	A$1.44
16	Nyloc Nut M22 307-222-053	Price on Request
17	Washer - Flat 308-080-016 More Info >	A$0.36
18	Washer - Flat 308-100-013 More Info >	A$0.24
19	Washer - Flat 308-120-013 More Info >	A$0.65
20	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
21	Washer - Nordloc 308-160-083 More Info >	A$8.03
22	Washer - Heavy Flat M24 ZP (Ø25mm ID) 308-240-063 More Info >	Price on Request
23	Bearing Assembly - Titan 401-000-035 More Info >	A$265.00
24	Bush - Pivot 402-320-060 More Info >	A$168.46
25	Boss - Pivot 402-320-070 More Info >	A$467.37
26	Washer - Thrust 402-320-080 More Info >	A$40.47
27	Scraper - Roller 178 404-320-122 More Info >	A$68.76
28	Front Flap - Retaining Strip - Procut S5 410-000-472 More Info >	Price on Request
30	Bumper Weldment - 178 - Procut S5 410-000-476 More Info >	Price on Request
31	Height Adjuster Block 412-000-255 More Info >	A$63.35
32	Screw Height Adj. 220mm 10.9 Grade 412-000-653 More Info >	Price on Request
33	Castor Arm - Rotating - Weldment - Side Deck - Pegasus S5 SR 412-000-655 More Info >	A$1,027.07
34	Castor Fork - Rotating -Weldment - Side Deck - Pegasus S5 SR 412-000-658 More Info >	A$1,037.13
35	SR Side Channel - Weldment - LH - Pegasus S5 SR 412-000-668 More Info >	A$948.30
36	SR Side Channel - Weldment - RH - Pegasus S5 SR 412-000-669 More Info >	A$948.30
37	Washer - Retaining - Pegasus S5 SR 412-000-671 More Info >	A$6.08
38	Collar - Height Adjuster 412-850-260 More Info >	A$25.37
40	Wheel Assembly 416-449-010 More Info >	A$280.77
41	Grease Cap - Front Castor 416-449-015 More Info >	A$10.21
