NOTES:

Part #	Number on image	Usage Notes
412-000-148	19	Antibounce Skid available as an option
404-320-129	20	Roller Scraper available as an option

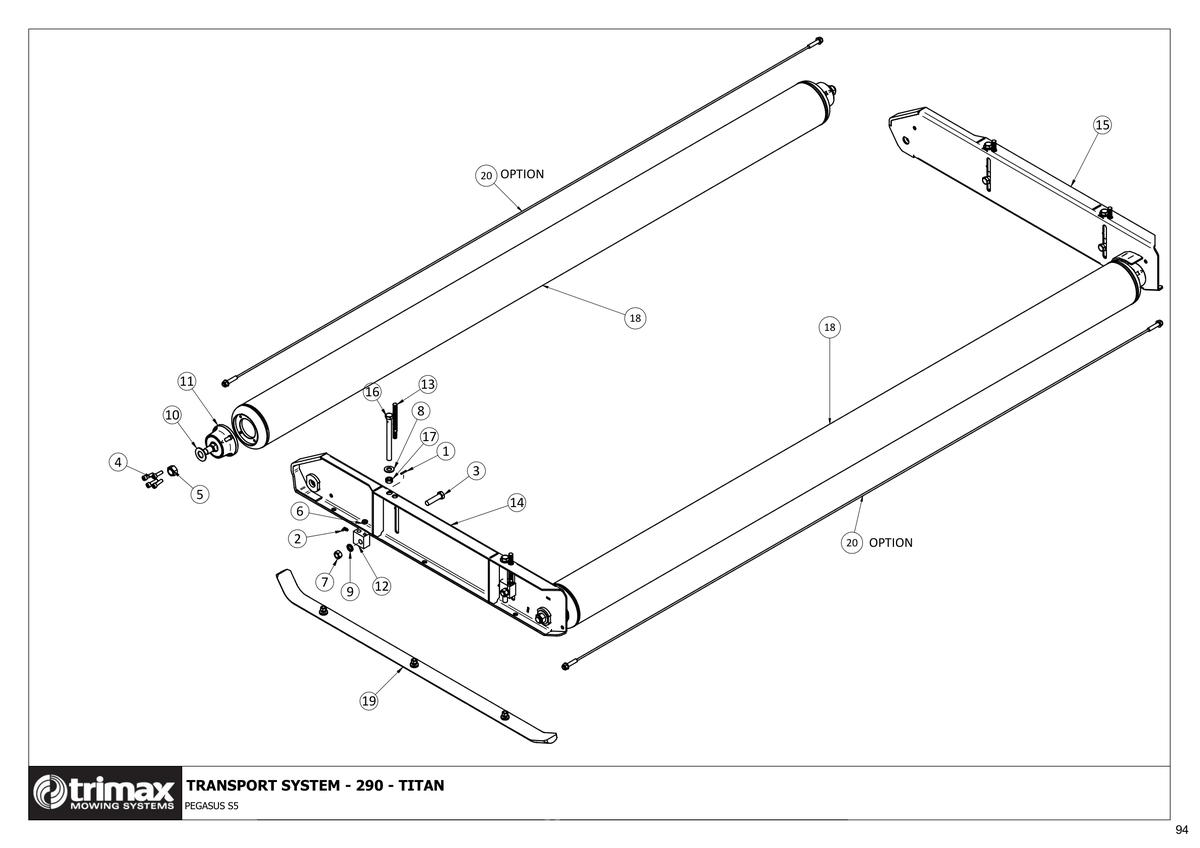

781 - Pegasus S5 - Transport System 290

Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	A$2.57
2	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
3	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	A$7.08
4	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	A$5.52
5	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	A$19.55
6	Nut - Half 307-212-023 More Info >	A$1.16
7	Nut - Plain 307-216-013 More Info >	A$0.97
8	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
9	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	A$8.03
10	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	Price on Request
11	Roller Bearing Assembly - Titan 401-000-035 More Info >	A$265.00
12	Height Adjuster Block 412-000-255 More Info >	A$63.35
16	Set Screw 412-000-609 More Info >	A$52.08
17	Collar - Height Adjuster 412-850-260 More Info >	A$25.37
19	Skid Assembly - Anti-Bounce i See notes section for usage notes on this part 412-000-148 More Info >	A$185.68
20	Scraper - Roller 290 i See notes section for usage notes on this part 404-320-129 More Info >	A$68.76
