Kit - Height Adjuster Rod and Collar [412-000-649]

Price on Request

SKU

412-000-649

-

Compatibility Spare Parts Instructions

Select mower for quantities required and usage notes:

Mower

Size

Quantity required:

Mower	Sub-assembly	Qty
Snake S3 320	780 - Snake S3 - Transport System 120	4
Snake S3 400	780 - Snake S3 - Transport System 160	4
X-WAM S5 0	783 - X-WAM S5 - Transport System 178 - DR	4
X-WAM S5 0	783 - X-WAM S5 - Transport System 237 - DR	4
X-WAM S5 0	783 - X-WAM S5 - Transport System 290 - DR	4
ProCut S5 178	756 - Procut S5 178 - Transport System Double Roller	4
ProCut S5 178	756 - Procut S5 178 - Transport System SR Roller - Option	4
ProCut S5 210	756 - Procut S5 210 - Transport System - Double Roller	4
ProCut S5 210	756 - Procut S5 210 - Transport System - Single Roller	4
ProCut S5 237	756 - Procut S5 237 - Transport System - Double Roller	4
ProCut S5 237	756 - Procut S5 237 - Transport System - Single Roller	4
ProCut S5 290	756 - Procut S5 290 - Transport System - Double Roller	4
ProCut S5 290	756 - Procut S5 290 - Transport System - Single Roller	4

Usage Notes:

Mower	Sub-assembly	Note
X-WAM S5 0	783 - X-WAM S5 - Transport System 237 - DR	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc M16 ZP 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
X-WAM S5 0	783 - X-WAM S5 - Transport System 290 - DR	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc M16 ZP 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
ProCut S5 178	756 - Procut S5 178 - Transport System Double Roller	412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
ProCut S5 178	756 - Procut S5 178 - Transport System SR Roller - Option	412-000-649 – Kit Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
ProCut S5 210	756 - Procut S5 210 - Transport System - Single Roller	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
ProCut S5 237	756 - Procut S5 237 - Transport System - Double Roller	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
ProCut S5 237	756 - Procut S5 237 - Transport System - Single Roller	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
ProCut S5 290	756 - Procut S5 290 - Transport System - Double Roller	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin\n1 x 308-160-063 - Washer - Nordloc\n1 x 412-000-609 - Set Screw\n1 x 412-850-260 - Collar - Height Adjuster Current
ProCut S5 290	756 - Procut S5 290 - Transport System - Single Roller	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin\n1 x 308-160-063 - Washer - Nordloc\n1 x 412-000-609 - Set Screw\n1 x 412-850-260 - Collar - Height Adjuster Current

Compatible with the following mowers:

ProCut - S5
Snake - S3
X-WAM - S5

No spare parts instructions available for this product.

Skip to the end of the images gallery

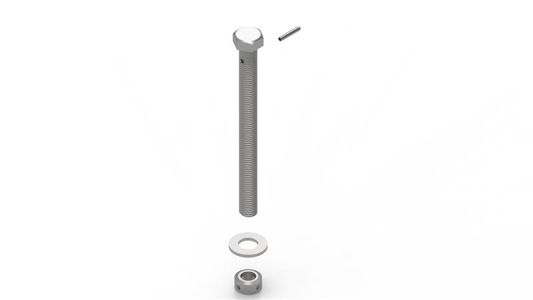

main product photo
