NOTES:

Part #	Number on image	Usage Notes
108-071-413	1	The quantity on this can vary, also the thick washer (108-071-513) can be used here
504-000-133	33	The new spindle with keyway is backwards compatible with prior machines

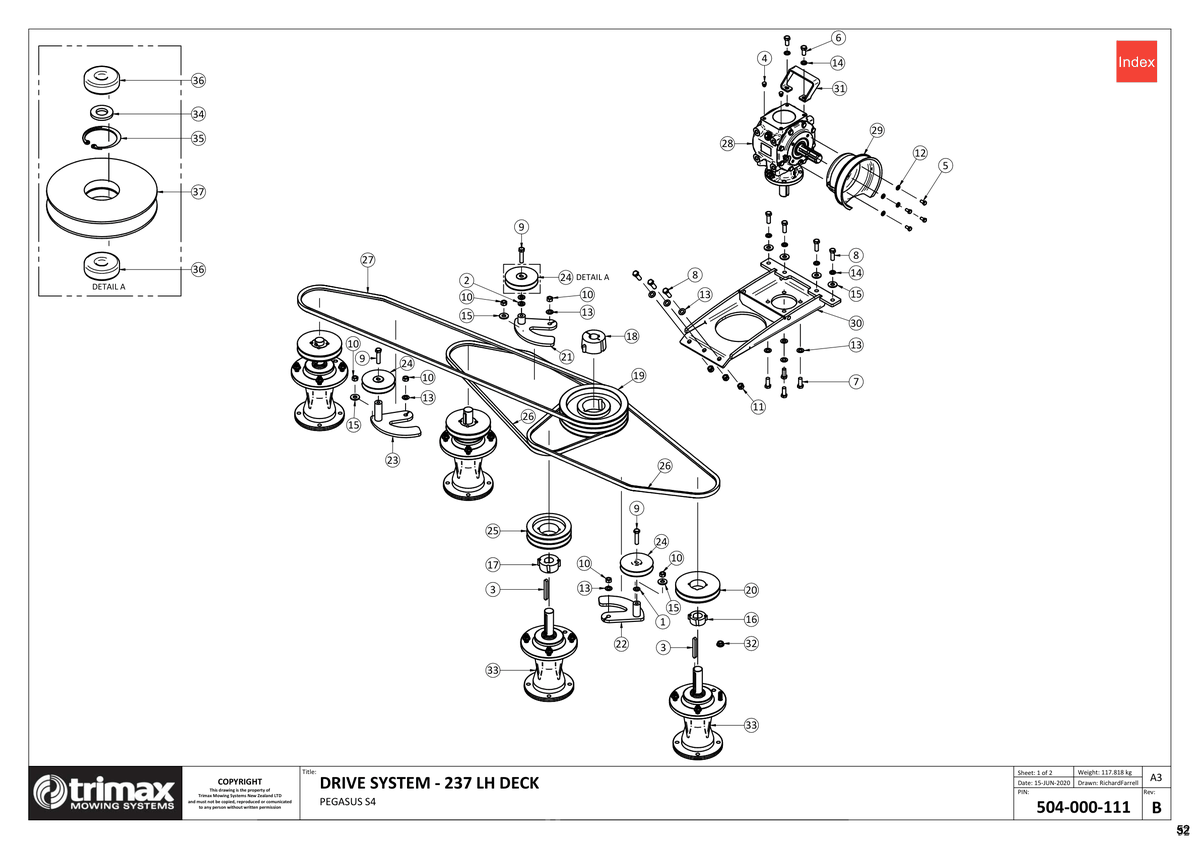

Pegasus S4 Drive System 237 Deck LH - Current

Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Washer - Flat i See notes section for usage notes on this part 108-071-413 More Info >	A$2.89
2	Washer - Hardened 108-071-513 More Info >	A$3.54
3	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	Price on Request
4	Blanking Plug - M12 209-900-012 More Info >	A$0.30
5	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
6	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	A$4.17
7	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
8	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
9	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	A$4.48
10	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
11	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
12	Washer - Flat 308-080-013 More Info >	A$0.06
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
15	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
16	Bush - Taper Lock 402-000-078 More Info >	A$22.12
17	Bush - Taper Lock 402-000-090 More Info >	A$30.09
18	Bush - Taper Lock 402-060-820 More Info >	A$80.72
19	Pulley 403-000-038 More Info >	A$245.69
20	Pulley - Taper Lock 403-000-083 More Info >	A$57.96
21	Idler Tower Incl Base 403-330-423 More Info >	A$72.32
22	Idler Tower Incl Base 403-330-432 More Info >	A$75.39
23	Idler Tower Incl Base 403-330-442 More Info >	A$78.42
24	Pulley Assembly - Idler 403-360-111 More Info >	A$95.00
25	Pulley - Taper Lock 403-361-140 More Info >	A$80.96
26	Vee Belt - Trimax Specification 404-040-750 More Info >	A$38.00
27	Vee Belt - Trimax Specification 404-041-150 More Info >	A$60.00
28	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	A$1,331.62
29	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	A$60.17
30	Gearbox Mount Weldment 417-001-197 More Info >	A$226.94
31	Folding 418-000-633 More Info >	Price on Request
32	Nut - Flange 450-000-078 More Info >	A$3.82
33	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	A$909.50
35	Circlip/Snap Ring - Internal 204-820-371 More Info >	A$2.36
36	Bearing - Trimax Specification - 401-021-900 More Info >	A$15.00
37	Pulley - Idler 403-360-110 More Info >	A$45.86
