NOTES:

Part #	Number on image	Usage Notes
401-000-025	11	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
414-000-076	15	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
414-000-092	16	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
412-000-286	18	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
412-000-287	19	Loctek Roller Retention system fitted to all NZ manufactured Pegasus S4 / X-Wam S4 starting approx Feb 2018. Serial # 727-493-400-0058 & 727-610-400-0066 Painted / 727-493-410-0001 & 727-610-410-0065 Galv onwards. Upgrade kits: 808-000-028 (493) and 808-000-029 (610)
404-320-122	22	Roller Scraper available as an option

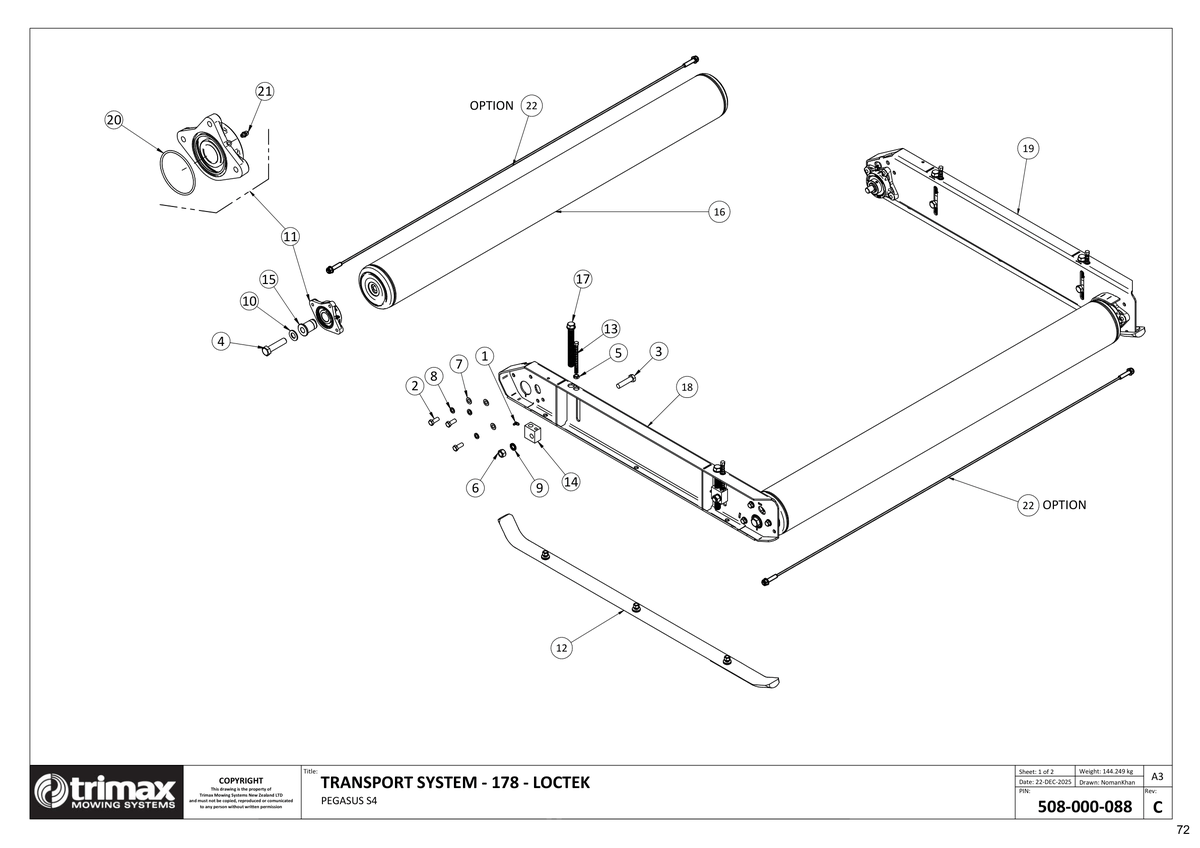

TRANSPORT SYSTEM - 178 - LOCTEK

Pegasus S4 493

Grouped product items
No.	Product Name	Price
1	Grease Nipple 208-442-650 More Info >	A$6.43
2	Bolt 301-212-303 More Info >	A$3.36
3	Bolt 301-216-653 More Info >	A$7.08
4	Bolt 301-220-853 More Info >	A$20.21
5	Nut - Half 307-212-023 More Info >	A$1.16
6	Nut - Plain 307-216-013 More Info >	A$0.97
7	Washer - Flat 308-120-013 More Info >	A$0.65
8	Washer - Spring 308-120-043 More Info >	A$0.65
9	Washer - Nordloc 308-160-083 More Info >	A$8.03
10	Washer - Heavy Flat 308-200-064 More Info >	A$1.44
11	Bearing Assembly i See notes section for usage notes on this part 401-000-025 More Info >	A$240.00
12	Skid Assembly - Anti-Bounce 412-000-148 More Info >	A$185.68
13	Height Indicator - Metric 412-000-256 More Info >	A$33.33
14	Height Adjuster Block 412-000-279 More Info >	A$82.60
15	Roller Stub Sleeve - LocTek i See notes section for usage notes on this part 414-000-076 More Info >	A$50.00
16	Roller Weldment - Loctek 178 i See notes section for usage notes on this part 414-000-092 More Info >	A$720.00
17	Height Adjuster Rod - RapidSet 450-000-126 More Info >	A$50.85
18	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-286 More Info >	A$576.52
19	Side Channel Weldment - LocTek - DR i See notes section for usage notes on this part 412-000-287 More Info >	A$576.52
20	O Ring 450-000-055 More Info >	A$3.56
21	Grease Nipple 208-442-620 More Info >	A$7.08
22	Scraper - Roller 178 i See notes section for usage notes on this part 404-320-122 More Info >	A$68.76
