NOTES:

Part #	Number on image	Usage Notes
301-212-303	3	All gearbox mounting hardware changed from M16 to M12 with the gearbox change. Supply serial number when ordering.
417-480-331	23	Rotor mounting bolts are now M16, replacing M12 bolts and sleeves. M12 bolts and rotor half rings are still available on request.
301-216-453	24	Rotor mounting bolts are now M16, replacing M12 bolts and sleeves. M12 bolts and rotor half rings are still available on request.
404-040-512	35	For serial numbers WLD276 onwards, use [404-040-512] Vee Belt. For serial numbers WLD275 and earlier, use [404-040-561] Vee Belt.
402-060-710	40	Used on all 4 belt machines (235, 265 and 295).
403-361-270	42	For serial numbers WLD276 onwards, use [403-361-270] G/Box Pulley - 200mm 4 Belt. For serial numbers WLD275 and earlier, use [403-361-280] G/Box Pulley - 250mm 4 Belt.
405-200-720	44	For serial numbers WLD276 onwards, use [405-200-720] Gearbox - TV 311 H. For serial numbers WLD275 and earlier, use [405-201-781] Gearbox - TL 278 E (145 and 175 sizes) or [405-201-901] Gearbox - TL 278 E (205 to 295 sizes). All gearbox mounting hardware changed from M16 to M12 with the gearbox change - supply serial number when ordering.
405-201-780	45	Always supply serial number, as gearbox extension lengths can vary. Fitted from serial number WLD275 onwards.
405-201-920	45	Always supply serial number, as gearbox extension lengths can vary. Fitted from serial number WLD275 onwards.
410-480-443	36	For left hand offset machines only.
405-200-721	44	For left hand offset machines only.

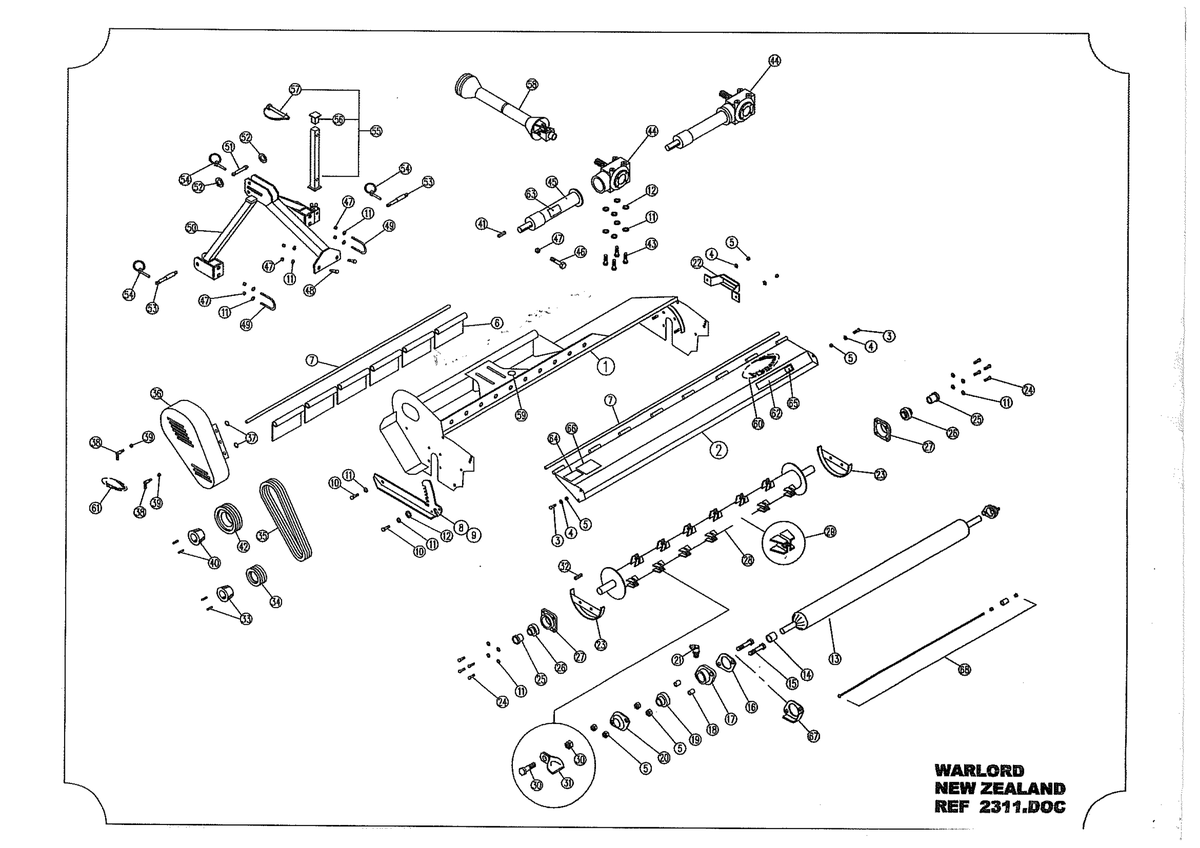

WL - Warlord S1 265 - Complete Assembly

Warlord S1 265

Grouped product items
No.	Product Name	Price
3	Bolt - Hex Head - M12 x 30 - Trimax Specification i See notes section for usage notes on this part 301-212-303 More Info >	A$3.36
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
6	Front Flap Weldment 417-480-320 More Info >	A$29.72
8	Trailing Arm Weldment - SR LH WL 412-480-351 More Info >	A$152.41
9	Trailing Arm Weldment - SR RH WL 412-480-352 More Info >	A$152.41
10	Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403 More Info >	A$1.83
11	Washer - Spring 308-160-043 More Info >	A$0.97
12	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
14	Sleeve 402-464-062 More Info >	A$11.95
15	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	A$4.48
16	Shield 410-464-052 More Info >	A$17.49
17	Bearing Housing 401-020-800 More Info >	A$32.31
18	Sleeve 402-480-740 More Info >	A$8.13
19	Bearing 401-020-700 More Info >	A$43.12
20	Cap 410-464-072 More Info >	A$24.90
21	Grease Nipple - Trimax Specification 208-442-620 More Info >	A$7.08
22	Bearing Guard 410-460-302 More Info >	A$79.51
23	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) i See notes section for usage notes on this part 417-480-331 More Info >	A$43.07
24	Bolt - Hex Head - M16 x 45 - Trimax Specification i See notes section for usage notes on this part 301-216-453 More Info >	A$7.84
25	Sleeve - Taper 401-021-230 More Info >	A$37.00
26	Bearing 401-021-210 More Info >	A$69.53
27	Bearing Housing 401-021-220 More Info >	A$64.29
29	Flail Lug 411-480-610 More Info >	A$17.66
30	Bolt - Hex Head M16 x 60 with Hex Nyloc Nut M16 - Trimax Specification 306-216-805 More Info >	A$13.80
31	Flail - Spring Steel Flail - Warlord - Trimax Specification - 411-160-200 More Info >	A$29.96
32	Key - Trimax Specification 205-425-920 More Info >	A$18.29
33	Bush - Taper Lock - Trimax Specification 402-060-730 More Info >	A$32.74
34	Pulley - Taper Lock 403-361-180 More Info >	A$139.68
35	Vee Belt - Trimax Specification i See notes section for usage notes on this part 404-040-512 More Info >	A$70.00
36	Belt Guard Weldment - RH Offset 410-480-440 More Info >	A$707.42
37	Button - Anti Rattle 209-446-360 More Info >	A$5.24
38	Drop Latch - Anti-loose 423-080-400 More Info >	A$29.92
39	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
40	Bush - Taper Lock - Trimax Specification i See notes section for usage notes on this part 402-060-710 More Info >	A$81.18
41	Key - 12x8mm - Trimax Specification 405-425-910 More Info >	A$13.16
42	Pulley - Taper Lock i See notes section for usage notes on this part 403-361-270 More Info >	A$283.54
44	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	A$1,331.62
45	Extension Shaft Assembly - Gearbox i See notes section for usage notes on this part 405-201-780 More Info >	A$718.95
45	Extension Assembly i See notes section for usage notes on this part 405-201-920 More Info >	Price on Request
47	Nut - Plain 307-216-013 More Info >	A$0.97
48	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	A$3.22
49	U-Bolt 215-446-320 More Info >	A$28.34
51	Pin - Linkage - Top Link 419-301-150 More Info >	A$21.53
52	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
53	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	A$40.92
54	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	A$3.05
55	Front Stand Weldment 413-480-660 More Info >	A$71.25
56	Cap - Tube Insert Square 209-480-661 More Info >	A$22.42
57	Pin 406-346-410 More Info >	A$5.96
58	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840 More Info >	A$389.63
59	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	A$13.95
60	Decal 424-100-350 More Info >	Price on Request
63	Decal - Instruction - PTO Speed 540RPM 424-100-900 More Info >	A$8.38
64	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	A$8.85
66	Decal - Safety - Blade Warning / Thrown Objects 424-100-950 More Info >	A$8.44
36	Belt Guard Weldment - wDecal/AntiRatl Bungs i See notes section for usage notes on this part 410-480-443 More Info >	A$758.48
44	Gearbox - Counter Rotation - 540rpm i See notes section for usage notes on this part 405-200-721 More Info >	A$1,331.62
