NOTES:

Part #	Number on image	Usage Notes
504-000-133	38	The new spindle with keyway is backwards compatible with prior machines

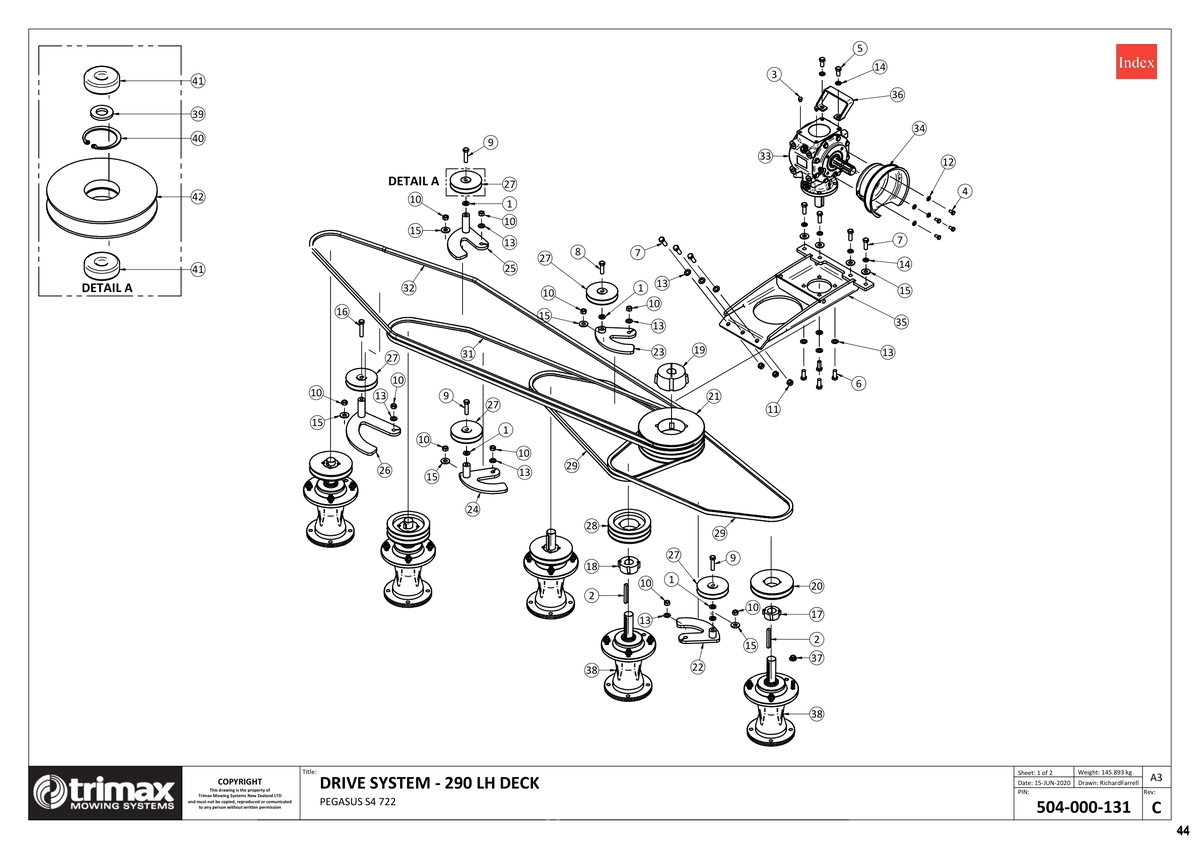

727-722 - Pegasus S4 - Drive System 290 LH - Taper Pulley

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	A$3.54
2	Key - 10 x 8 x 85 DIN6885 Form A 205-000-003 More Info >	Price on Request
3	Blanking Plug 209-900-012 More Info >	A$0.30
4	Bolt 301-208-163 More Info >	A$0.54
5	Bolt 301-212-253 More Info >	A$4.17
6	Bolt 301-212-303 More Info >	A$3.36
7	Bolt 301-212-353 More Info >	A$3.86
8	Bolt 301-212-403 More Info >	A$4.17
9	Bolt 301-212-503 More Info >	A$4.48
10	Nut - Plain 307-212-013 More Info >	A$0.80
11	Nut - Nyloc 307-212-053 More Info >	A$1.07
12	Washer - Flat 308-080-016 More Info >	A$0.36
13	Washer - Flat 308-120-013 More Info >	A$0.65
14	Washer - Spring 308-120-043 More Info >	A$0.65
15	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
16	Set Screw 313-212-603 More Info >	A$1.25
17	Bush - Taper Lock 402-000-078 More Info >	A$22.12
18	Bush - Taper Lock 402-000-090 More Info >	A$30.09
19	Bush - Taper Lock 402-060-680 More Info >	A$99.93
20	Pulley - Taper Lock 403-000-083 More Info >	A$57.96
21	Pulley - Taper Lock ��236 SPB x 4 403-000-129 More Info >	A$195.60
22	Idler Tower Incl Base 403-330-423 More Info >	A$72.32
23	Idler Tower Incl Base 403-330-424 More Info >	A$53.45
24	Idler Tower Incl Base 403-330-432 More Info >	A$75.39
25	Idler Tower Incl Base 403-330-442 More Info >	A$78.42
27	Pulley Assembly - Idler 403-360-111 More Info >	A$95.00
28	Pulley - Taper Lock 403-361-140 More Info >	A$80.96
29	Vee Belt 404-040-750 More Info >	A$38.00
31	Vee Belt 404-041-150 More Info >	A$60.00
32	Vee Belt 404-041-580 More Info >	A$70.00
33	Gearbox 405-200-720 More Info >	A$1,331.62
34	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	A$60.17
35	Gearbox Mount Weldment 417-001-197 More Info >	A$226.94
36	Folding 418-000-633 More Info >	Price on Request
37	Nut - Flange 450-000-078 More Info >	A$3.82
38	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	A$909.50
40	Circlip/Snap Ring - Internal 204-820-371 More Info >	A$2.36
41	Bearing 401-021-900 More Info >	A$15.00
42	Pulley - Idler 403-360-110 More Info >	A$45.86
