NOTES:

Part #	Number on image	Usage Notes
408-000-054	26	For mowers with 2 blades per spindle use 408-000-068, for mowers with(Quattro option) 4 blades per spindle use 408-000-065. For mowers with 2 blades per spindle use 408-000-068, for mowers with(Quattro option) 4 blades per spindle use 408-000-065.
418-000-651	34	Bolt on Cams has been used on Serial number onwards: 727-493-410-0058 Painted NZ/ 727-610-400-0063 Painted NZ/727-493-410-0001 Galv NZ/727-610-410-0063Gavl NZ All mowers manufactured prior to the above serial numbers had weld on cams on outrigger arms. Bolt on Cams has been used on Serial number onwards: 727-493-410-0058 Painted NZ/ 727-610-400-0063 Painted NZ/727-493-410-0001 Galv NZ/727-610-410-0063Gavl NZ All mowers manufactured prior to the above serial numbers had weld on cams on outrigger arms.
421-000-003	36	Use Remote Unlock Kit (807-000-017) together with Adapter Cable (421-000-170) in place of Items 36, as it has been discontinued. Use Remote Unlock Kit (807-000-017) together with Adapter Cable (421-000-170) in place of Items 36, as it has been discontinued.

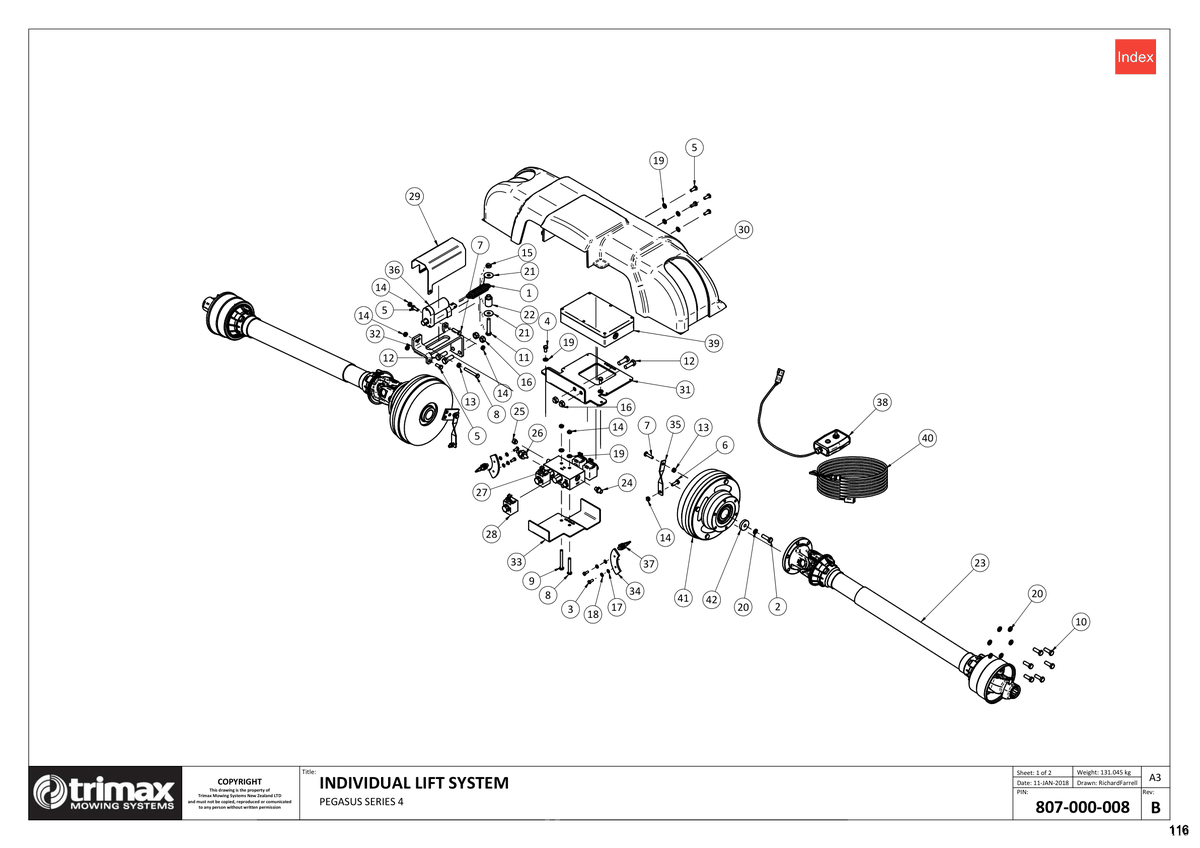

727 - Pegasus S4 - Individual Lift System

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Spring - Tension 207-000-008 More Info >	A$94.31
2	Bolt 301-110-353 More Info >	A$1.40
3	Bolt - Hex Head - M6 x 12 - Trimax Specification 301-206-123 More Info >	A$0.62
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
5	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	A$1.31
6	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	A$0.30
7	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	A$0.60
8	Bolt - Hex Head - M8 x 60 - Trimax Specification 301-208-603 More Info >	A$0.60
9	Bolt - Hex Head - M8 x 75 - Trimax Specification 301-208-753 More Info >	Price on Request
10	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	A$0.80
11	Bolt - Hex Head - M10 x 60 - Trimax Specification 301-210-603 More Info >	A$0.83
12	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
13	Nut - Plain 307-208-013 More Info >	A$0.18
14	Nut - Nyloc 307-208-056 More Info >	A$1.18
15	Nut - Nyloc 307-210-053 More Info >	A$0.89
16	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
17	Washer - Flat 308-060-013 More Info >	A$0.04
18	Washer - Spring 308-060-043 More Info >	A$0.17
19	Washer - Flat 308-080-016 More Info >	A$0.36
20	Washer - Spring 308-100-043 More Info >	A$0.65
21	Washer - Fender 308-100-073 More Info >	A$0.57
22	Pivot Bush 402-000-102 More Info >	Price on Request
23	PTO Shaft - 6 Bolt Flange 406-340-592 More Info >	A$554.00
24	Adaptor 408-000-030 More Info >	Price on Request
25	Plug 408-000-031 More Info >	Price on Request
26	Needle Valve i See notes section for usage notes on this part 408-000-054 More Info >	Price on Request
27	Hydraulic Cartridge Valve Bank 409-000-043 More Info >	A$3,264.79
29	Sheild - Electric Unlock Actuator 410-000-287 More Info >	A$49.82
30	Cover - Command Module 410-000-304 More Info >	A$1,357.65
31	Mount Bracket Folding 418-000-396 More Info >	Price on Request
32	Mount Bracket Folding 418-000-397 More Info >	A$107.12
33	Mount Bracket Folding 418-000-398 More Info >	A$59.29
34	Proximity Cam i See notes section for usage notes on this part 418-000-651 More Info >	Price on Request
35	Clutch Mount Bracket 418-844-170 More Info >	A$19.60
36	Unlock Actuator w Wiring/Plug - ILS i See notes section for usage notes on this part 421-000-003 More Info >	A$751.31
37	Proximity Sensor Kit - Unshielded incl. Connector 421-000-042 More Info >	Price on Request
38	Switch Box 421-000-065 More Info >	A$293.00
39	Electronic Control Unit 421-000-070 More Info >	Price on Request
40	Cable Gland/Plug/Spade - ILS/QuikLift Switchbox/Joystick 5m 421-000-071 More Info >	A$217.00
41	Magnetic Clutch 421-441-250 More Info >	A$2,949.00
42	Retaining Washer - Electric Clutch 450-844-160 More Info >	A$27.80
