NOTES:

Part #	Number on image	Usage Notes
405-000-015	31	Locate and supply serial number when ordering new gearbox to order the correct gearbox. Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount
405-200-720	32	Locate and supply serial number when ordering new gearbox to order the correct gearbox. Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount
504-000-133	37	The new spindle with keyway is backwards compatible with prior machines

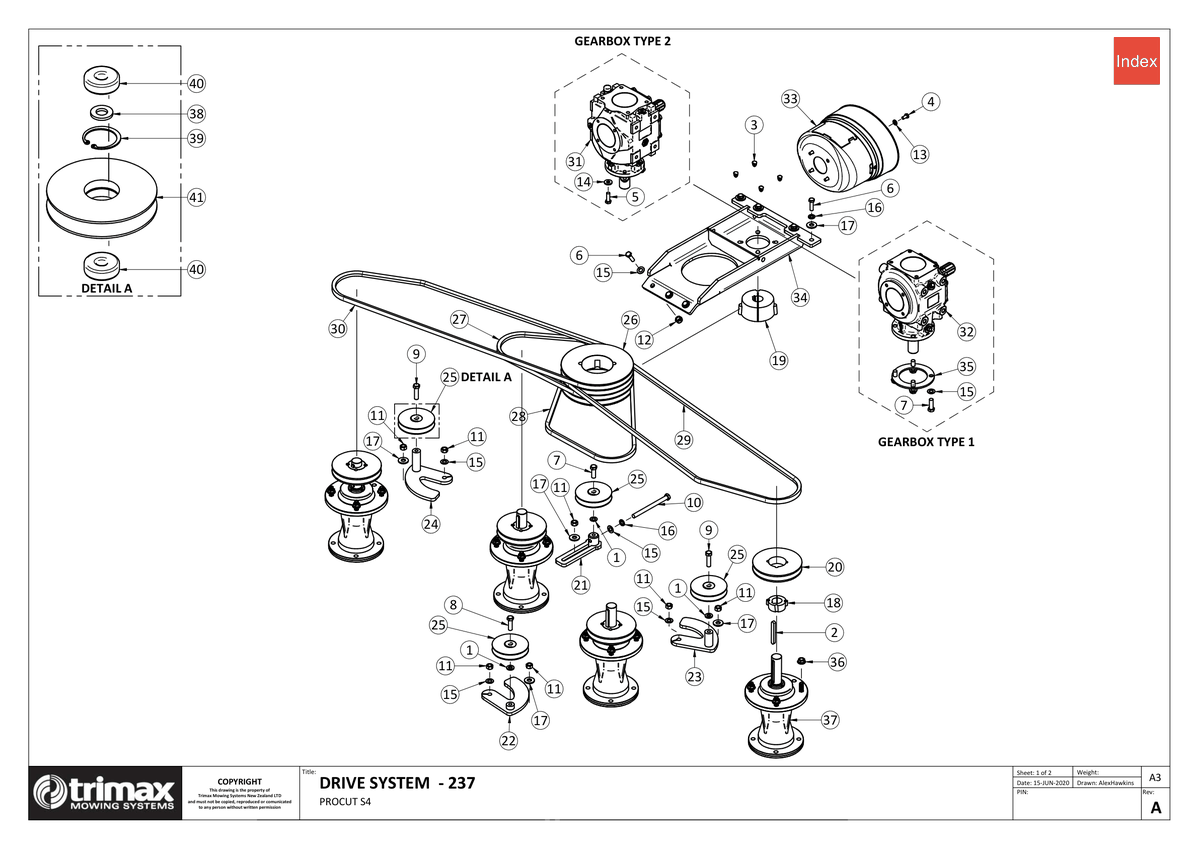

736 - Procut S4 237 - Drive System Taper Lock Pulley

ProCut S4 237

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	A$3.54
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	Price on Request
3	Blanking Plug - M12 209-900-012 More Info >	A$0.30
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
5	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	A$0.80
6	Bolt - Hex Head - M10 x 35 - Trimax Specification 301-210-353 More Info >	A$0.97
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
8	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
9	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	A$4.33
10	Bolt - Hex Head - M12 x 150 - Trimax Specification 301-612-153 More Info >	A$2.42
11	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
12	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
13	Washer - Flat 308-080-016 More Info >	A$0.36
14	Washer - Heavy Flat 308-100-063 More Info >	A$0.24
15	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
16	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
17	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
18	Bush - Taper Lock 402-000-078 More Info >	A$22.12
19	Bush - Taper Lock 402-060-680 More Info >	A$99.93
20	Pulley - Taper Lock 403-000-083 More Info >	A$57.96
22	Idler Tower Incl Base 403-330-424 More Info >	A$53.45
23	Idler Tower Incl Base 403-330-432 More Info >	A$75.39
24	Idler Tower Incl Base 403-330-442 More Info >	A$78.42
25	Pulley Assembly - Idler 403-360-111 More Info >	A$95.00
26	Pulley - Taper Lock 403-361-290 More Info >	A$238.12
27	Vee Belt - Trimax Specification 404-040-460 More Info >	A$27.00
28	Vee Belt - Trimax Specification 404-040-520 More Info >	A$35.00
29	Vee Belt - Trimax Specification 404-040-900 More Info >	A$50.00
30	Vee Belt - Trimax Specification 404-040-920 More Info >	A$50.00
31	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	A$824.60
32	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	A$1,331.62
33	PTO Cone - Wide angle 410-000-257 More Info >	A$102.18
35	Gearbox Spacer Disc 417-001-300 More Info >	A$58.85
36	Nut - Flange 450-000-078 More Info >	A$3.82
37	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	A$909.50
39	Circlip/Snap Ring - Internal 204-820-371 More Info >	A$2.36
40	Bearing - Trimax Specification - 401-021-900 More Info >	A$15.00
41	Pulley - Idler 403-360-110 More Info >	A$45.86
