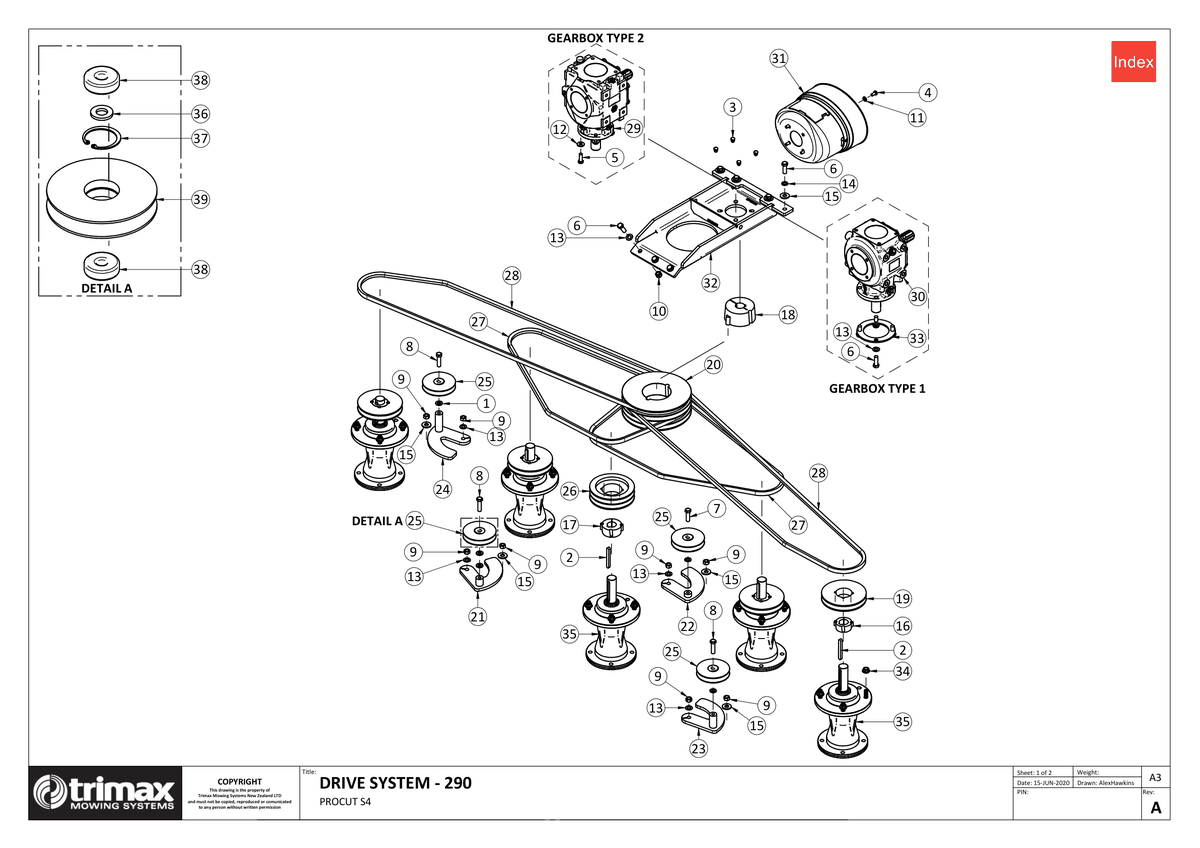

736 - Procut S4 290 - Drive System (Taper Lock)

ProCut S4 290

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	A$3.54
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	Price on Request
3	Blanking Plug - M12 209-900-012 More Info >	A$0.30
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
5	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	A$0.80
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
7	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
8	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	A$4.33
9	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
11	Washer - Flat 308-080-016 More Info >	A$0.36
12	Washer - Heavy Flat 308-100-063 More Info >	A$0.24
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
15	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
16	Bush - Taper Lock 402-000-078 More Info >	A$22.12
17	Bush - Taper Lock 402-000-090 More Info >	A$30.09
18	Bush - Taper Lock 402-060-680 More Info >	A$99.93
19	Pulley - Taper Lock 403-000-083 More Info >	A$57.96
20	Pulley - Taper Lock - Trimax Specification 403-000-129 More Info >	A$195.60
21	Idler Tower Incl Base 403-330-423 More Info >	A$72.32
22	Idler Tower Incl Base 403-330-424 More Info >	A$53.45
23	Idler Tower Incl Base 403-330-432 More Info >	A$75.39
24	Idler Tower Incl Base 403-330-442 More Info >	A$78.42
25	Pulley Assembly - Idler 403-360-111 More Info >	A$95.00
26	Pulley - Taper Lock 403-361-140 More Info >	A$80.96
27	Vee Belt - Trimax Specification 404-040-750 More Info >	A$38.00
28	Vee Belt - Trimax Specification 404-041-140 More Info >	A$60.00
29	Gearbox 405-000-015 More Info >	A$824.60
30	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	A$1,331.62
31	PTO Cone - Wide angle 410-000-257 More Info >	A$102.18
33	Gearbox Spacer Disc 417-001-300 More Info >	A$58.85
34	Nut - Flange 450-000-078 More Info >	A$3.82
35	Spindle Assembly - Steadfast - With Keyway 504-000-133 More Info >	A$909.50
37	Circlip/Snap Ring - Internal 204-820-371 More Info >	A$2.36
38	Bearing - Trimax Specification - 401-021-900 More Info >	A$15.00
39	Pulley - Idler 403-360-110 More Info >	A$45.86
