NOTES:

Part #	Number on image	Usage Notes
208-442-650	2	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
301-216-653	3	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
307-216-013	7	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
308-160-083	9	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
404-320-123	12	Roller Scraper available as an option
412-000-255	13	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
412-000-648	20	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block

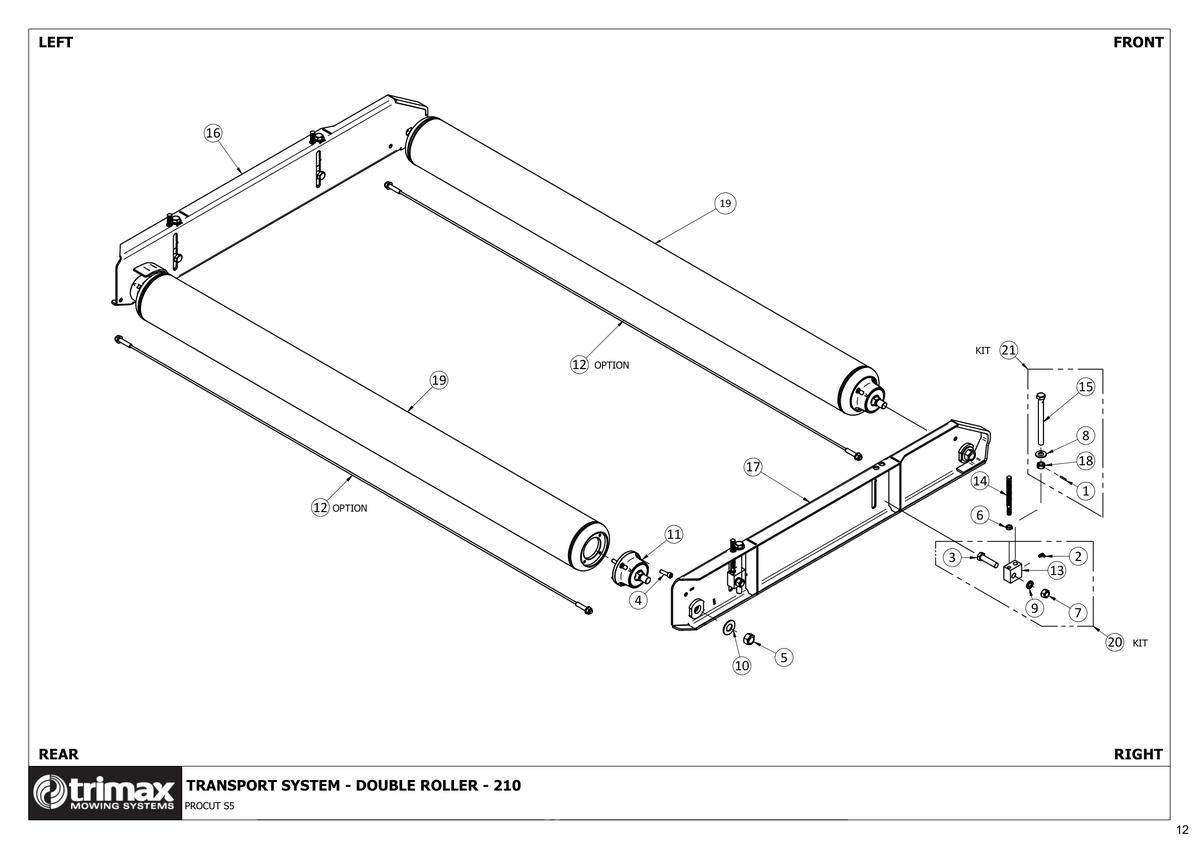

756 - Procut S5 210 - Transport System - Double Roller

ProCut S5 210

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	A$2.57
2	Grease Nipple - Trimax Specification i See notes section for usage notes on this part 208-442-650 More Info >	A$6.43
3	Bolt - Hex Head - M16 x 65 - Trimax Specification i See notes section for usage notes on this part 301-216-653 More Info >	A$7.08
4	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	A$5.52
5	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	A$19.55
6	Nut - Half 307-212-023 More Info >	A$1.16
7	Nut - Plain i See notes section for usage notes on this part 307-216-013 More Info >	A$0.97
8	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
9	Washer - Wedge Lock M16 - Trimax Specification - i See notes section for usage notes on this part 308-160-083 More Info >	A$8.03
10	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	Price on Request
11	Roller Bearing Assembly - Titan 401-000-035 More Info >	A$265.00
12	Scraper - Roller 210 i See notes section for usage notes on this part 404-320-123 More Info >	A$68.76
13	Height Adjuster Block i See notes section for usage notes on this part 412-000-255 More Info >	A$63.35
15	Set Screw 412-000-609 More Info >	A$52.08
16	Side Channel Weldment - Titan Bearing - LH - 210 - Procut S5 412-000-640 More Info >	Price on Request
17	Side Channel Weldment - Titan Bearing - RH - 210 - Procut S5 412-000-641 More Info >	Price on Request
18	Collar - Height Adjuster 412-850-260 More Info >	A$25.37
19	Roller Weldment - Titan - 210 - Procut S5 414-000-171 More Info >	Price on Request
20	Kit - Height Adjuster Block i See notes section for usage notes on this part 412-000-648 More Info >	Price on Request
21	Kit - Height Adjuster Rod and Collar 412-000-649 More Info >	Price on Request
