NOTES:

Part #	Number on image	Usage Notes
202-447-980	1	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
208-442-650	2	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
301-216-653	6	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
307-216-013	11	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
308-160-063	15	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
308-160-083	16	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
404-320-123	19	Roller Scraper available as an option
412-000-255	23	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
412-000-609	24	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
412-850-260	27	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
412-000-648	32	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
412-000-649	33	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current

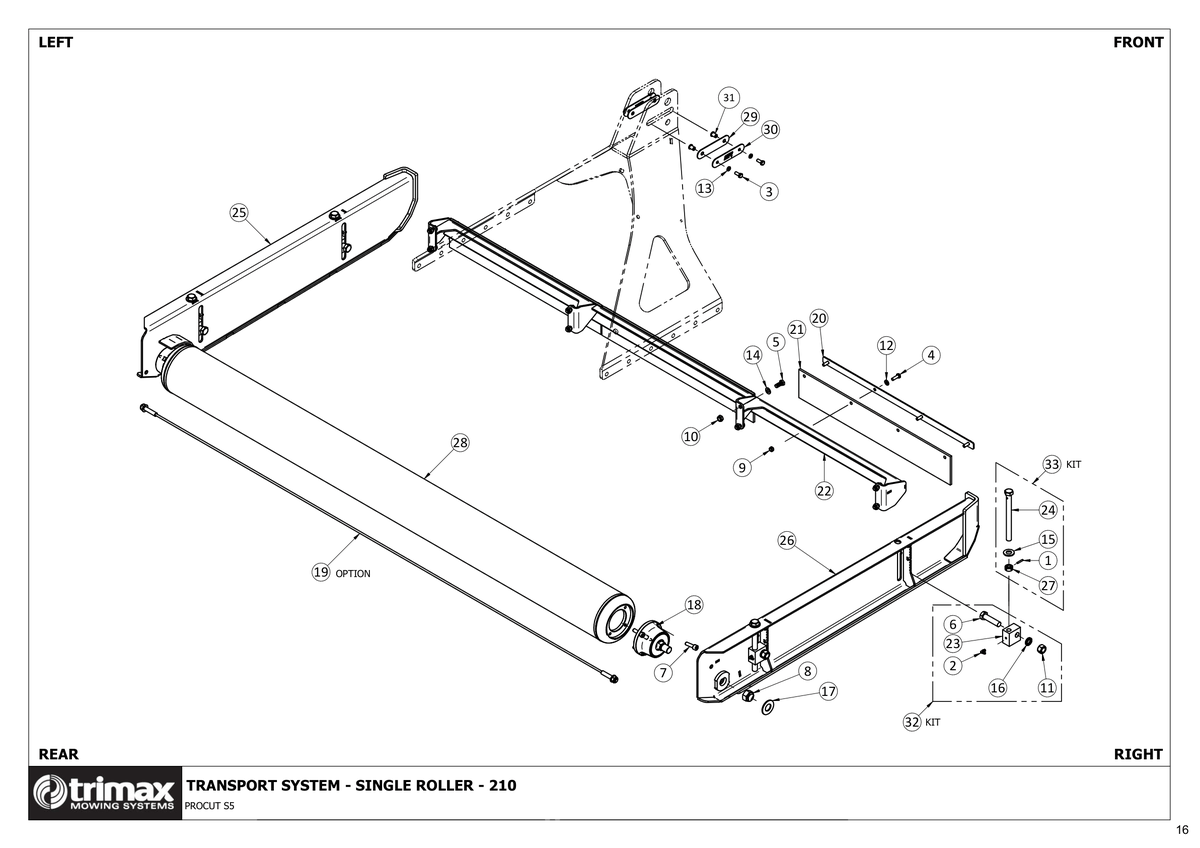

756 - Procut S5 210 - Transport System - Single Roller

ProCut S5 210

Grouped product items
No.	Product Name	Price
1	Roll Pin i See notes section for usage notes on this part 202-447-980 More Info >	A$2.57
2	Grease Nipple - Trimax Specification i See notes section for usage notes on this part 208-442-650 More Info >	A$6.43
3	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	A$1.31
4	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	A$0.29
5	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	A$0.80
6	Bolt - Hex Head - M16 x 65 - Trimax Specification i See notes section for usage notes on this part 301-216-653 More Info >	A$7.08
7	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	A$5.52
8	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	A$19.55
9	Nut - Nyloc 307-208-056 More Info >	A$1.18
10	Nut - Nyloc 307-210-053 More Info >	A$0.89
11	Nut - Plain i See notes section for usage notes on this part 307-216-013 More Info >	A$0.97
12	Washer - Flat 308-080-016 More Info >	A$0.36
13	Washer - Spring 308-080-043 More Info >	A$0.06
14	Washer - Flat 308-100-013 More Info >	A$0.24
15	Washer - Heavy Flat i See notes section for usage notes on this part 308-160-063 More Info >	A$2.14
16	Washer - Wedge Lock M16 - Trimax Specification - i See notes section for usage notes on this part 308-160-083 More Info >	A$8.03
17	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	Price on Request
18	Roller Bearing Assembly - Titan 401-000-035 More Info >	A$265.00
19	Scraper - Roller 210 i See notes section for usage notes on this part 404-320-123 More Info >	A$68.76
20	Front Flap - Retaining Strip - 210 - Procut S5 410-000-473 More Info >	Price on Request
21	Front Flap - PVK - 210 - Procut S5 410-000-475 More Info >	Price on Request
22	Bumper Weldment - 210 - Procut S5 410-000-477 More Info >	Price on Request
23	Height Adjuster Block i See notes section for usage notes on this part 412-000-255 More Info >	A$63.35
24	Set Screw i See notes section for usage notes on this part 412-000-609 More Info >	A$52.08
25	SR Side Channel Weldment - LH - 210 - Procut S5 412-000-644 More Info >	Price on Request
26	SR Side Channel Weldment - RH - 210 - Procut S5 412-000-645 More Info >	Price on Request
27	Collar - Height Adjuster i See notes section for usage notes on this part 412-850-260 More Info >	A$25.37
28	Roller Weldment - Titan - 210 - Procut S5 414-000-171 More Info >	Price on Request
29	Slot Cover - Top Link SR Outer 419-000-053 More Info >	A$16.64
30	Slot Cover - Top Link SR Inner 419-000-054 More Info >	A$21.69
31	Nut - Rivnut M8 ZP 307-208-423	A$0.50
32	Kit - Height Adjuster Block i See notes section for usage notes on this part 412-000-648 More Info >	Price on Request
33	Kit - Height Adjuster Rod and Collar i See notes section for usage notes on this part 412-000-649 More Info >	Price on Request
