NOTES:

Part #	Number on image	Usage Notes
202-447-980	1	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
208-442-650	2	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc
301-216-653	3	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc
307-216-013	8	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc
308-160-063	11	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
308-160-083	12	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc
404-320-124	15	Roller Scraper available as an option
412-000-148	16	Antibounce Skid available as an option
412-000-255	17	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc
412-000-609	19	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
412-850-260	20	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
412-000-648	24	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc
412-000-649	25	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current

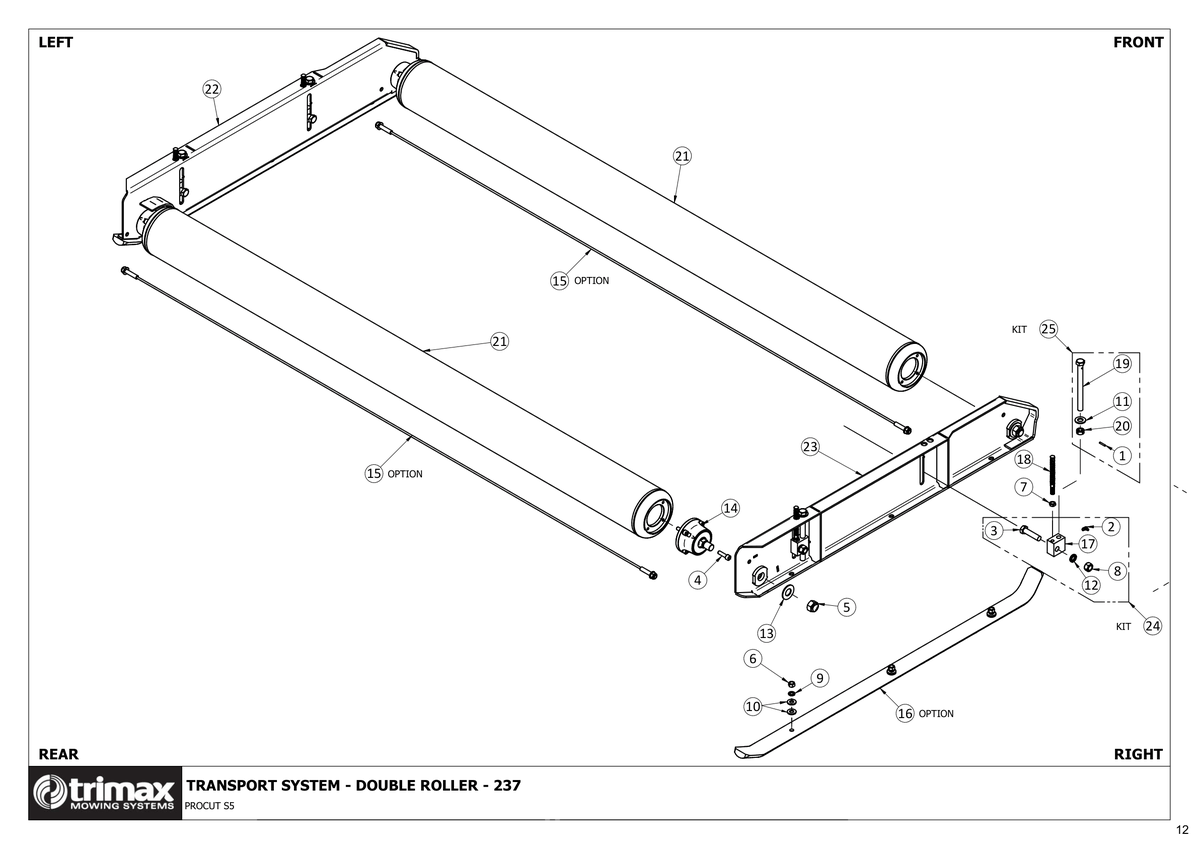

756 - Procut S5 237 - Transport System - Double Roller

ProCut S5 237

Grouped product items
No.	Product Name	Price
1	Roll Pin i See notes section for usage notes on this part 202-447-980 More Info >	A$2.57
2	Grease Nipple - Trimax Specification i See notes section for usage notes on this part 208-442-650 More Info >	A$6.43
3	Bolt - Hex Head - M16 x 65 - Trimax Specification i See notes section for usage notes on this part 301-216-653 More Info >	A$7.08
4	Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353 More Info >	A$5.52
5	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	A$19.55
6	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
7	Nut - Half 307-212-023 More Info >	A$1.16
8	Nut - Plain i See notes section for usage notes on this part 307-216-013 More Info >	A$0.97
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
10	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
11	Washer - Heavy Flat i See notes section for usage notes on this part 308-160-063 More Info >	A$2.14
12	Washer - Wedge Lock M16 - Trimax Specification - i See notes section for usage notes on this part 308-160-083 More Info >	A$8.03
13	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	Price on Request
14	Roller Bearing Assembly - Titan 401-000-035 More Info >	A$265.00
15	Scraper - Roller 237 i See notes section for usage notes on this part 404-320-124 More Info >	A$68.76
16	Skid Assembly - Anti-Bounce i See notes section for usage notes on this part 412-000-148 More Info >	A$185.68
17	Height Adjuster Block i See notes section for usage notes on this part 412-000-255 More Info >	A$63.35
19	Set Screw i See notes section for usage notes on this part 412-000-609 More Info >	A$52.08
20	Collar - Height Adjuster i See notes section for usage notes on this part 412-850-260 More Info >	A$25.37
24	Kit - Height Adjuster Block i See notes section for usage notes on this part 412-000-648 More Info >	Price on Request
25	Kit - Height Adjuster Rod and Collar i See notes section for usage notes on this part 412-000-649 More Info >	Price on Request
