NOTES:

Part #	Number on image	Usage Notes
403-000-123	27	For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 40)
403-360-111	28	For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 40)
405-200-720	33	Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.
504-000-133	39	Use Part number 407-000-028 - for Spindle repair kit
403-000-167	40	403-000-167 – Idler repair kit contains 2 x Bearings,1 x circlip, 1 x Washer. 10 10
405-000-015	41	Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.
405-000-164	42	Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.

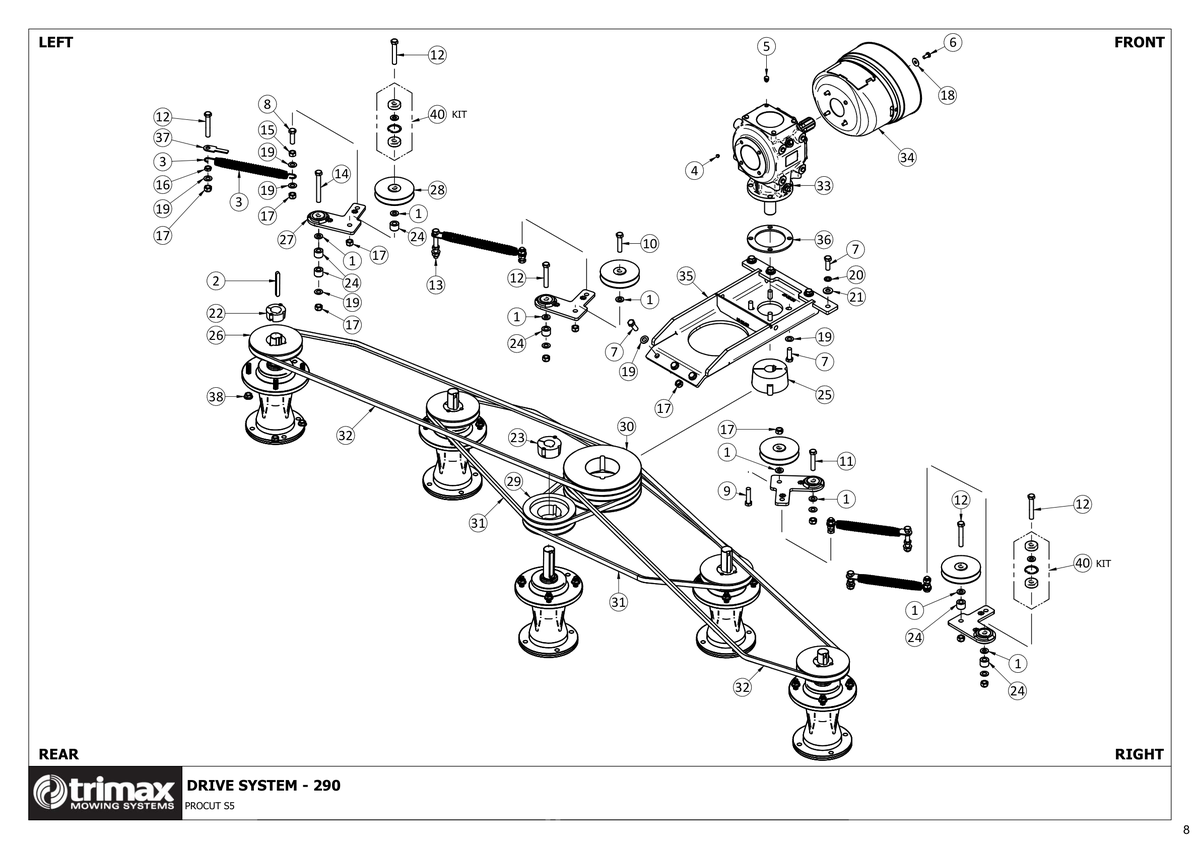

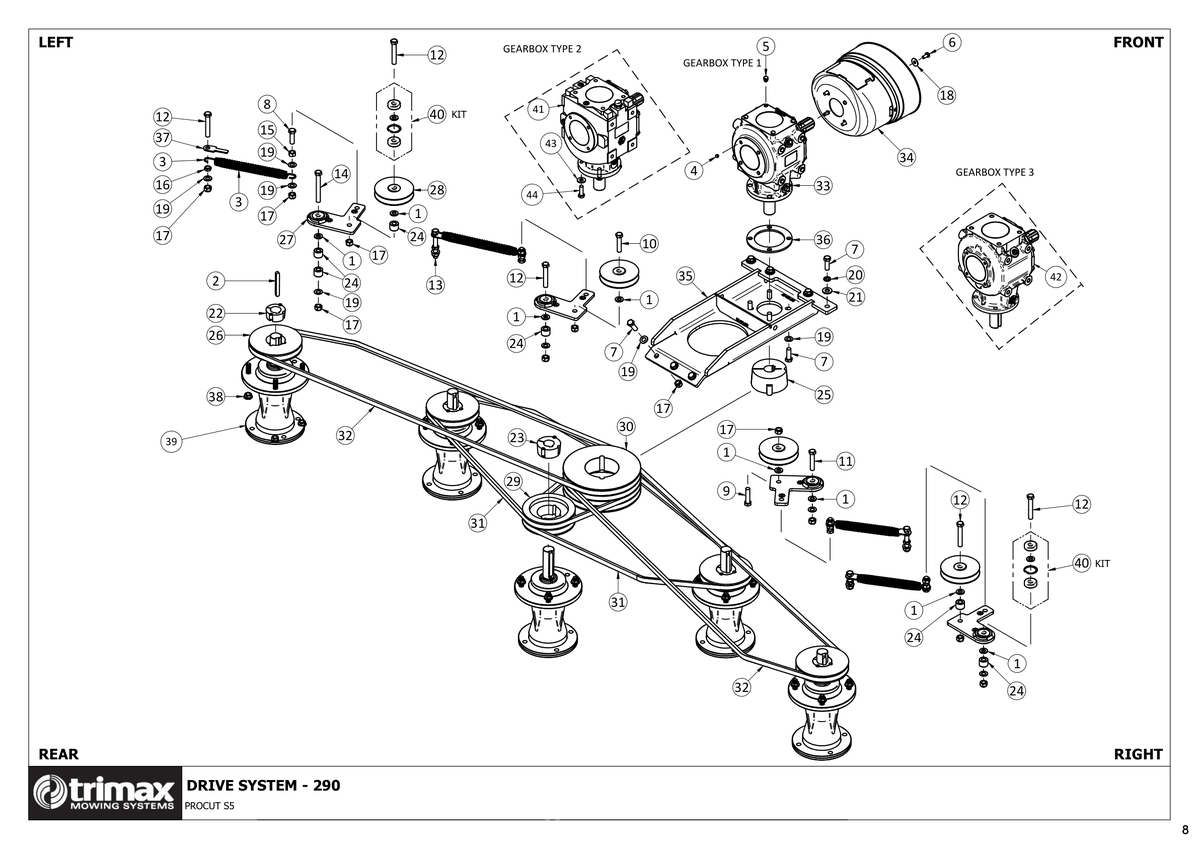

756 - Procut S5 290 - Drive System

ProCut S5 290

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	A$3.54
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	Price on Request
3	Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009 More Info >	A$11.41
4	Blanking Plug - M8 209-000-029 More Info >	Price on Request
5	Blanking Plug - M12 209-900-012 More Info >	Price on Request
6	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
8	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	A$4.17
9	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	A$4.48
10	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	A$1.20
11	Bolt - Hex Head - M12 x 60 - Trimax Specification 301-212-603 More Info >	A$1.93
12	Bolt - Hex Head - M12 x 75 - Trimax Specification 301-212-753 More Info >	Price on Request
13	Bolt - Hex Head - M12 x 90 - Trimax Specification 301-212-903 More Info >	A$1.78
14	Bolt - Hex Head - M12 x 100 - Trimax Specification 301-612-103 More Info >	A$2.25
15	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
16	Nut - Half 307-212-023 More Info >	A$1.16
17	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
18	Washer - Fender - M8 308-080-073 More Info >	A$0.10
19	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
20	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
21	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
22	Bush - Taper Lock 402-000-078 More Info >	A$22.12
23	Bush - Taper Lock 402-000-090 More Info >	A$30.09
25	Bush - Taper Lock 402-060-680 More Info >	A$99.93
26	Pulley - Taper Lock 403-000-083 More Info >	A$57.96
27	Idler Arm - Assembly i See notes section for usage notes on this part 403-000-123 More Info >	Price on Request
28	Pulley Assembly - Idler i See notes section for usage notes on this part 403-360-111 More Info >	A$95.00
29	Pulley - Taper Lock 403-361-140 More Info >	A$80.96
30	Pulley - Taper Lock 403-361-290 More Info >	A$238.12
31	Vee Belt - Trimax Specification - 404-040-750 More Info >	A$38.00
32	Vee Belt - Trimax Specification 404-041-150 More Info >	A$60.00
33	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	A$1,332.00
36	Gearbox Spacer Disc 417-001-300 More Info >	A$58.85
38	Nut - Flange 450-000-078 More Info >	A$3.82
39	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	A$1,137.00
40	Kit - Idler Repair i See notes section for usage notes on this part 403-000-167 More Info >	Price on Request
41	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	A$1,031.00
42	Gearbox - 540rpm - Trimax Specification i See notes section for usage notes on this part 405-000-164 More Info >	Price on Request
43	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	A$0.80
44	Washer - Heavy Flat 308-100-063 More Info >	A$0.24
