NOTES:

Part #	Number on image	Usage Notes
202-447-980	1	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
208-442-650	2	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 13 13 13 13 13
301-216-653	3	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 13 13 13 13 13
307-216-013	8	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 13 13 13 13 13
308-160-063	11	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
308-160-083	12	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 13 13 13 13 13
404-320-129	15	Roller Scraper available as an option
412-000-148	16	Antibounce Skid available as an option
412-000-255	17	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 13 13 13 13 13
412-000-609	19	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
412-850-260	20	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
412-000-648	24	412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 – Grease Nipple - 90° 1 x 301-216-653 – Bolt - Hex Head 1 x 307-216-013 – Nut - Plain 1 x 308-160-083 – Washer - Nordloc 13 13 13 13 13
412-000-649	25	412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 – Roll Pin 1 x 308-160-063 – Washer - Nordloc 1 x 412-000-609 – Set Screw 1 x 412-850-260 – Collar - Height Adjuster Current
414-000-161	26	Side channels built after 2025 may have the spacer welded to the side channel. If not, use Clamp Plate 414-000-161. 14 14 14 14 14 1 x 412-000-255 – Height Adjuster Block

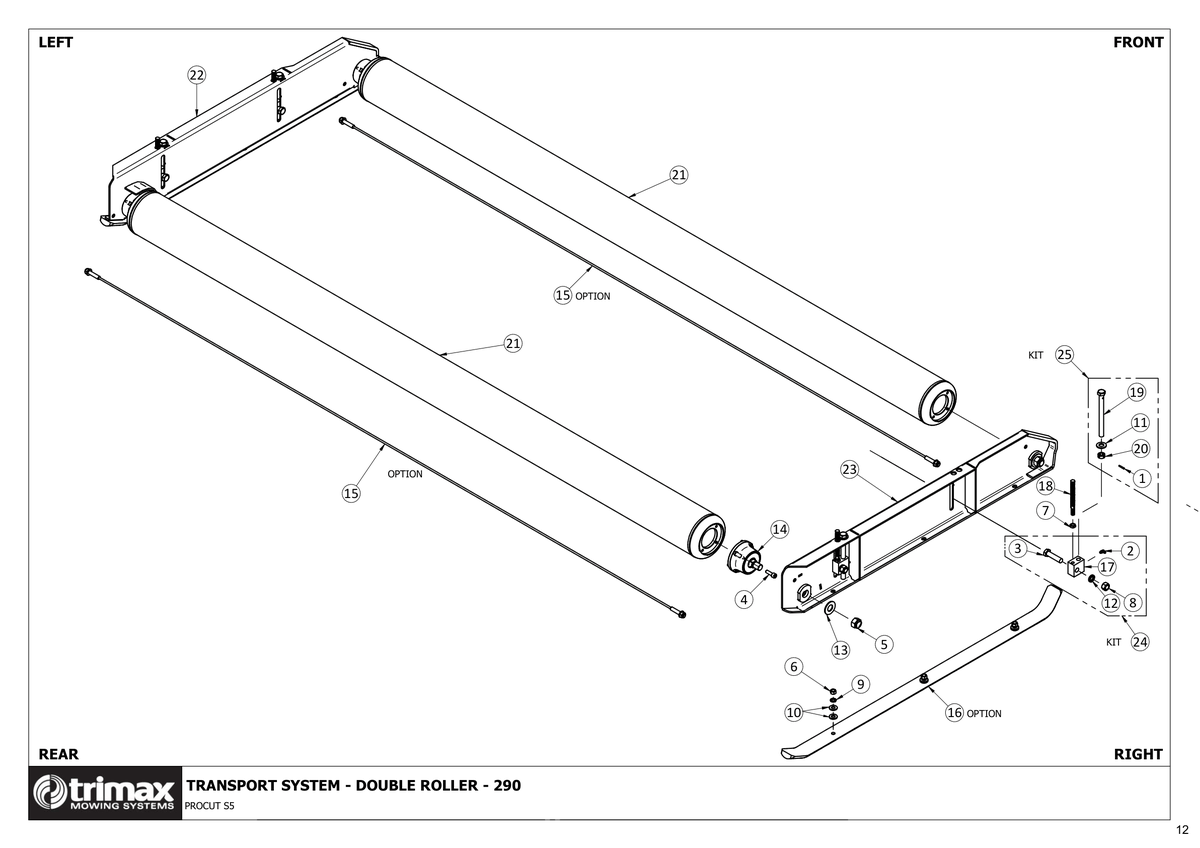

756 - Procut S5 290 - Transport System - Double Roller

ProCut S5 290

Grouped product items
No.	Product Name	Price
1	Roll Pin i See notes section for usage notes on this part 202-447-980 More Info >	A$2.57
2	Grease Nipple - Trimax Specification i See notes section for usage notes on this part 208-442-650 More Info >	A$6.43
3	Bolt - Hex Head - M16 x 65 - Trimax Specification i See notes section for usage notes on this part 301-216-653 More Info >	A$7.08
4	Cap Screw - Socket Head M10 x 35 - Trimax Specification - 303-210-353 More Info >	A$5.52
5	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	A$19.55
6	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
7	Nut - Half 307-212-023 More Info >	A$1.16
8	Nut - Plain i See notes section for usage notes on this part 307-216-013 More Info >	A$0.97
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
10	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
11	Washer - Heavy Flat i See notes section for usage notes on this part 308-160-063 More Info >	A$2.14
12	Washer - Wedge Lock M16 - Trimax Specification - i See notes section for usage notes on this part 308-160-083 More Info >	A$8.03
13	Washer - Heavy Flat M24 - Trimax Specification 308-240-063 More Info >	Price on Request
14	Roller Bearing Assembly - Titan 401-000-035 More Info >	A$267.00
15	Scraper - Roller 290 i See notes section for usage notes on this part 404-320-129 More Info >	A$69.00
16	Skid Assembly - Anti-Bounce i See notes section for usage notes on this part 412-000-148 More Info >	A$214.00
17	Height Adjuster Block i See notes section for usage notes on this part 412-000-255 More Info >	A$72.00
19	Height Adjuster Screw i See notes section for usage notes on this part 412-000-609 More Info >	A$52.08
20	Collar - Height Adjuster i See notes section for usage notes on this part 412-850-260 More Info >	A$25.37
24	Kit - Height Adjuster Block i See notes section for usage notes on this part 412-000-648 More Info >	Price on Request
25	Kit - Height Adjuster Rod and Collar i See notes section for usage notes on this part 412-000-649 More Info >	Price on Request
26	Clamp Plate - Titan Bearing Pegasus S4 i See notes section for usage notes on this part 414-000-161 More Info >	A$25.81
