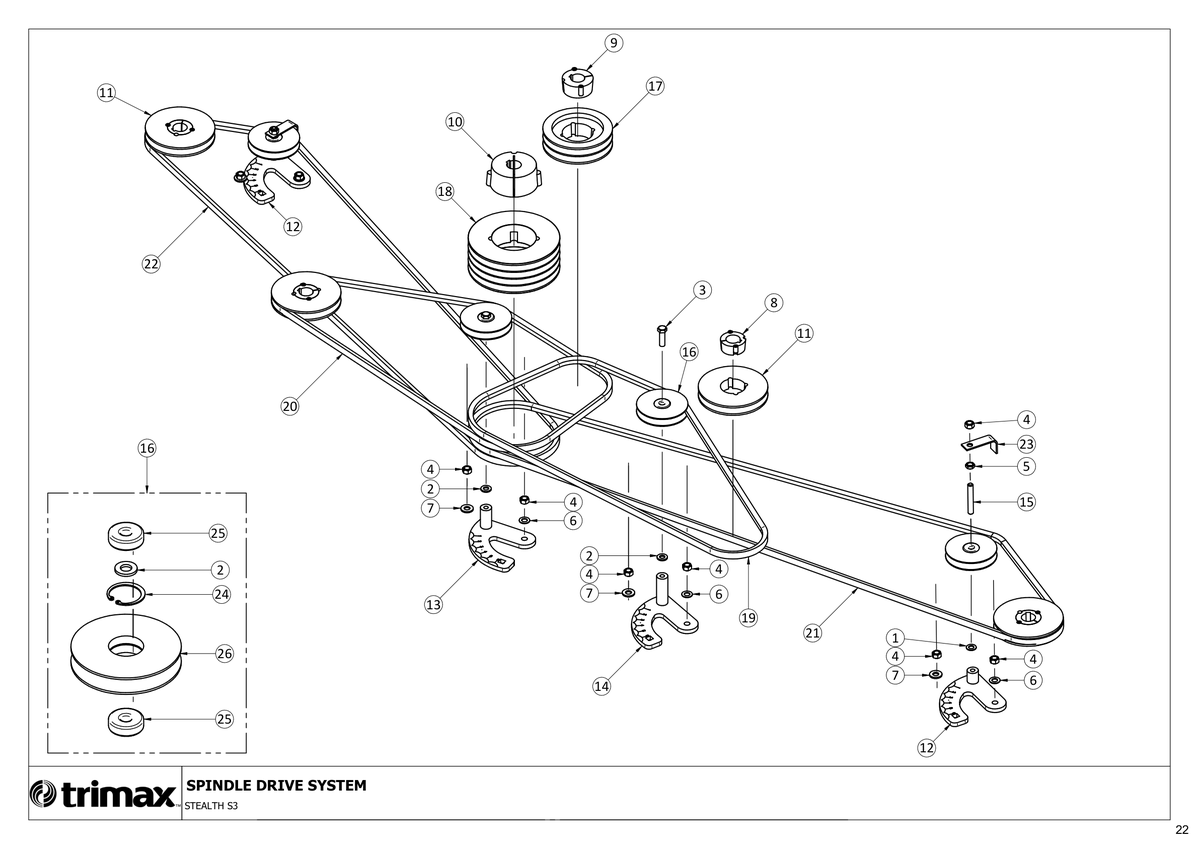

758 - Stealth S3 SR 340 - Spindle Drive System

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-071-413 More Info >	A$2.89
2	Washer - Hardened 108-071-513 More Info >	A$3.54
3	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
4	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
5	Nut - Half 307-212-023 More Info >	A$1.16
6	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
7	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
8	Bush - Taper Lock 402-000-078 More Info >	A$22.12
9	Bush - Taper Lock 402-000-090 More Info >	A$30.09
10	Bush - Taper Lock 402-060-680 More Info >	A$99.93
11	Pulley - Taper Lock 403-000-083 More Info >	A$57.96
12	Idler Weldment - Short 39mm Etched 403-000-125 More Info >	Price on Request
13	Idler Weldment - Medium 61mm Etched 403-000-126 More Info >	Price on Request
14	Idler Weldment - Long 83mm Etched 403-000-127 More Info >	Price on Request
15	Stud 403-330-443 More Info >	A$2.89
16	Pulley Assembly - Idler 403-360-111 More Info >	A$95.00
17	Pulley - Taper Lock 403-361-140 More Info >	A$80.96
18	Pulley - Taper Lock 403-361-270 More Info >	A$283.54
19	Vee Belt - Trimax Specification 404-040-810 More Info >	A$45.00
21	Vee Belt - Trimax Specification - 404-041-290 More Info >	A$70.00
23	Folding 417-001-178 More Info >	A$0.44
24	Circlip/Snap Ring - Internal 204-820-371 More Info >	A$2.36
25	Bearing - Trimax Specification - 401-021-900 More Info >	A$15.00
26	Pulley - Idler 403-360-110 More Info >	A$45.86
