NOTES:

Part #	Number on image	Usage Notes
403-361-270	6	For serial numbers PCD353 and earlier, use [403-360-800] Gearbox Pully x4.
402-060-680	7	For serial numbers PCD353 and earlier, use [402-060-250] Gearbox Pully Bush x2.
405-425-940	9	Only use on serial numbers PCD354 and later.

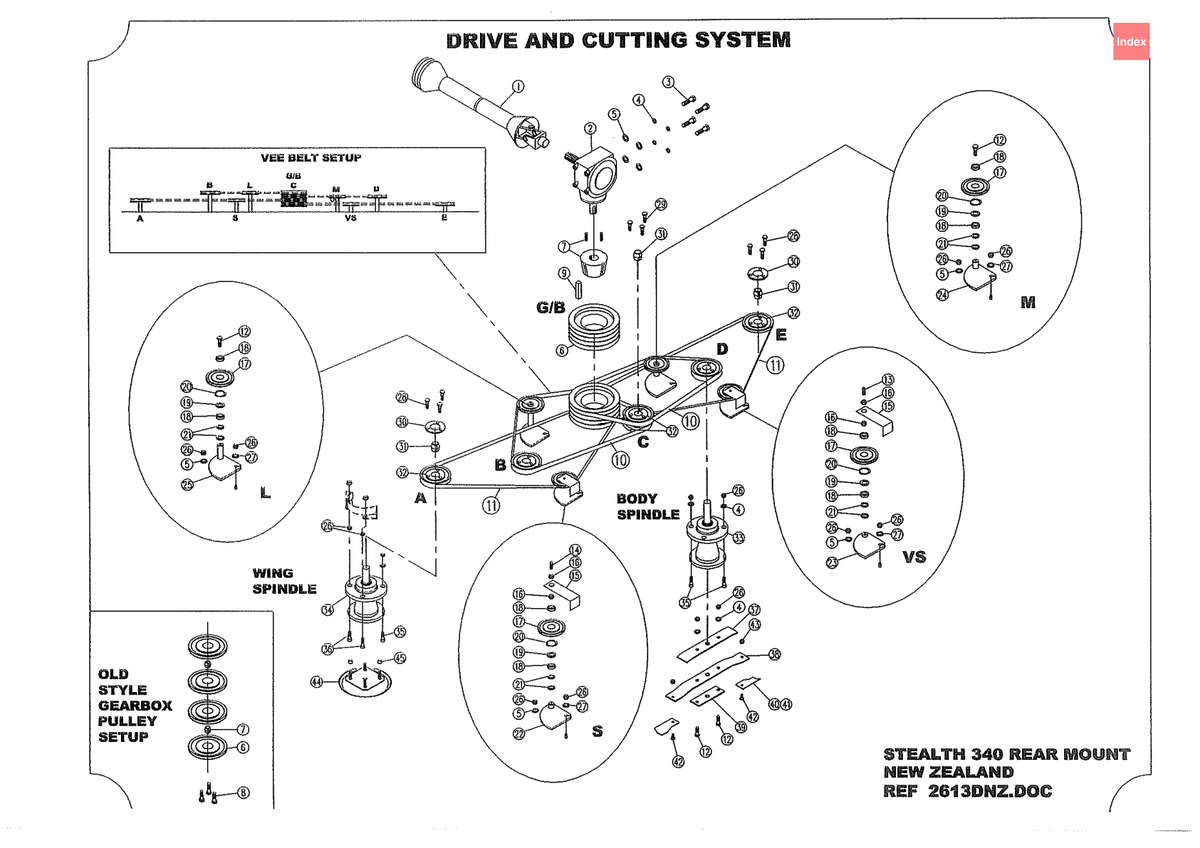

Stealth S1 - Drive & Cutting System

Stealth S1 340

Grouped product items
No.	Product Name	Price
1	Driveshaft 406-340-840 More Info >	A$389.63
2	Gearbox 405-200-720 More Info >	A$1,331.62
3	Bolt 301-212-303 More Info >	A$3.36
4	Washer - Spring 308-120-043 More Info >	A$0.65
5	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
6	Pulley i See notes section for usage notes on this part 403-361-270 More Info >	A$283.54
7	Bush - Taper Lock i See notes section for usage notes on this part 402-060-680 More Info >	A$99.93
9	Key i See notes section for usage notes on this part 405-425-940 More Info >	A$4.95
10	Vee Belt 404-040-830 More Info >	A$45.00
11	Vee Belt 404-041-300 More Info >	A$53.50
12	Bolt 301-212-453 More Info >	A$4.33
14	Stud 403-330-443 More Info >	A$2.89
15	Belt Retainer Guide 417-330-450 More Info >	A$6.42
16	Nut - Half 307-212-023 More Info >	A$1.16
17	Pulley - Idler 403-360-110 More Info >	A$45.86
18	Bearing 401-021-900 More Info >	A$15.00
19	Washer - Flat 108-071-413 More Info >	A$2.89
21	Washer - Flat 308-120-013 More Info >	A$0.65
22	Idler Tower Incl Base 403-330-423 More Info >	A$72.32
23	Idler Tower Incl Base 403-330-424 More Info >	A$53.45
24	Idler Tower Incl Base 403-330-432 More Info >	A$75.39
25	Idler Tower Incl Base 403-330-442 More Info >	A$78.42
26	Nut - Plain 307-212-013 More Info >	A$0.80
28	Bolt 301-208-203 More Info >	A$1.31
29	Bolt 301-208-403 More Info >	A$0.47
30	Retainer Ring 402-060-450 More Info >	A$16.34
31	Bush 402-060-320 More Info >	A$26.55
32	Pulley 403-360-300 More Info >	A$64.20
33	Spindle Assembly - Type 5b Ext 50mm 504-328-013 More Info >	A$905.07
34	Spindle Assembly - Type 5b Short Ext 50mm 504-328-014 More Info >	A$905.07
35	Cap Screw 303-212-505 More Info >	A$2.84
36	Bolt 301-212-553 More Info >	A$1.12
37	Backing Plate - Blade Beam 411-322-710 More Info >	A$18.73
38	Beam - Std - Blade Mounting 411-322-760 More Info >	A$64.20
39	Clamp Plate - Blade Beam 411-322-800 More Info >	A$11.15
40	Blade - Spindle - Flat 411-160-700 More Info >	A$6.96
41	Blade - Spindle - Uplift 411-160-702 More Info >	A$7.25
42	Blade Bolt - D-Bolt - With Nyloc Nut - Blade Mounting 411-322-100 More Info >	A$3.75
43	Nut - Nyloc 307-210-053 More Info >	A$0.89
44	Disc Anti-scalp Rotating - E Type 4 Stud 503-325-475 More Info >	A$271.33
45	Bush 402-060-970 More Info >	A$19.35
